Hakalugi's Bamboo Fence Project:

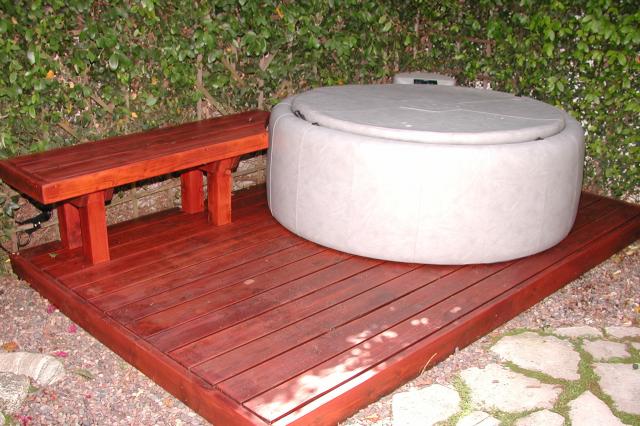

Below are some before shots in better times. After many years the thick overgrown vines were becoming harder and harder to manage. Plus there were times when you would be sitting in the hot tub and you would hear creatures clambering through the vines. You never knew if one of them might fall into the hot tub right into your lap. It was definitely time for a change.
The Plan:

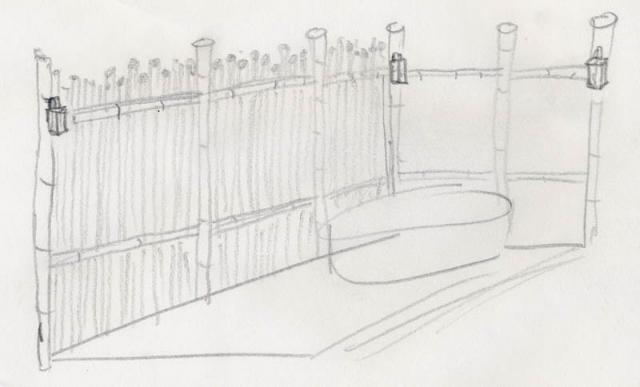

Here's the initial drawing. Big 4" bamboo posts, 1” and 1 1/2" bamboo for in between the posts, 3” split bamboo for the cross beams and three flickering lantern/lamps which would be hardwired into the electrical system. I’ve done electrical work before and know how to build to code and deal with permits etc., but the bamboo part was all new to me and I was prepared to basically just make it up as I went along.
Removing the overgrowth:
Getting started:

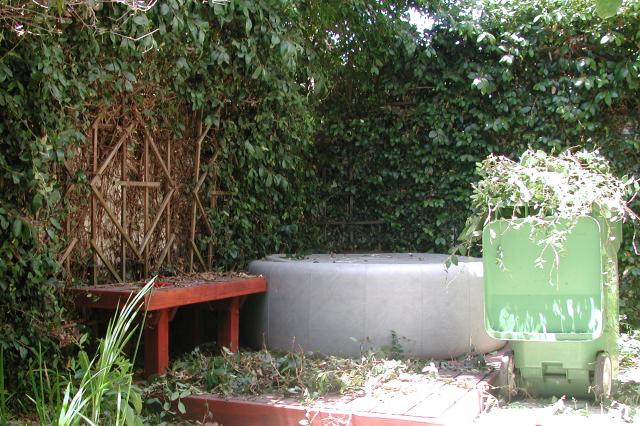

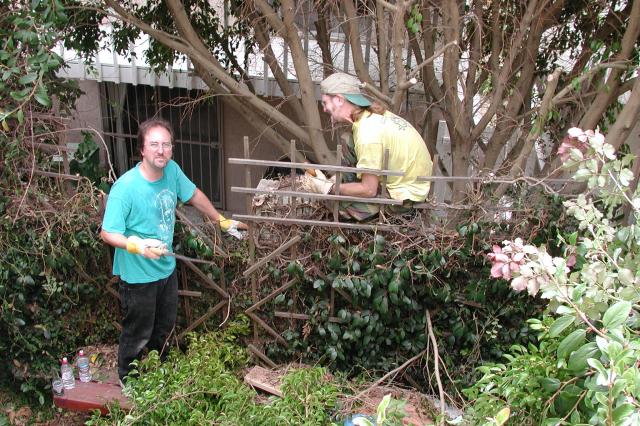

Hakalugi (me) and Bartman cutting back the vines and the neighboring tree which leans over the fence and drops tons of leaves and messy seedpods.
Our first obstacle was an opossum which had decided to take up residence next to the warm hot tub. When Bartman found it cornered between the fence and the hot tub, it had leaped up hissing and tried to bite him. The opossum had no intention of leaving and we had no choice but to relocate it. Without hesitation Bartman grabbed it by the tail and then was able to hold it by the scruff of the neck. Fortunately I had a cage to put it in. It looked like the opossum had been nesting there for a while. We looked to see if there were any babies but found none. Later that night we drove out to a remote field that had a stream and released it.

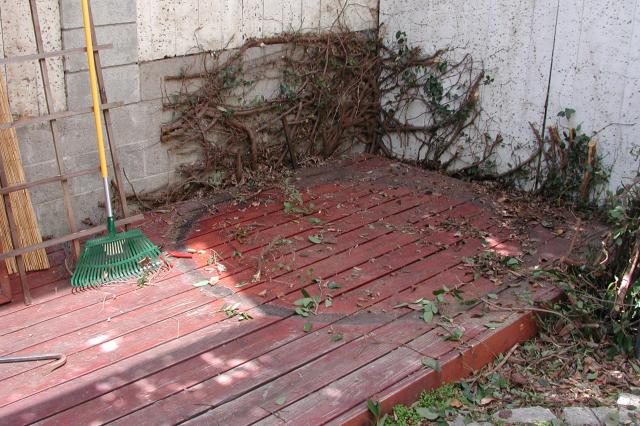

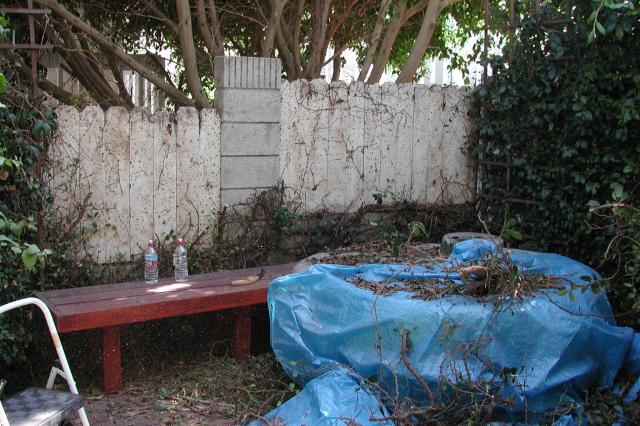

By the end of the first day I was left with this:
A few weekends later:
These vines were quite thick. Not only did they have to be cut back, but the roots needed to be removed too.

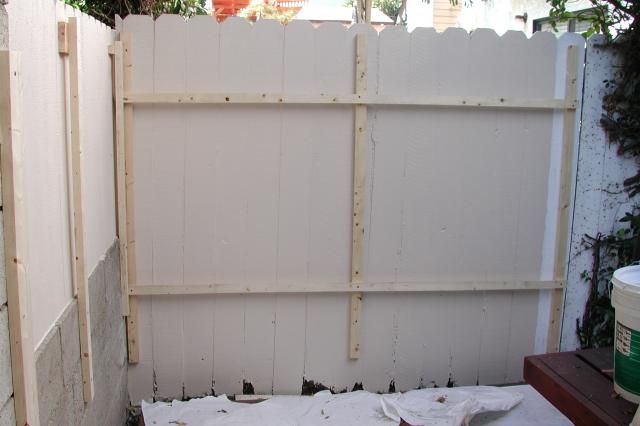

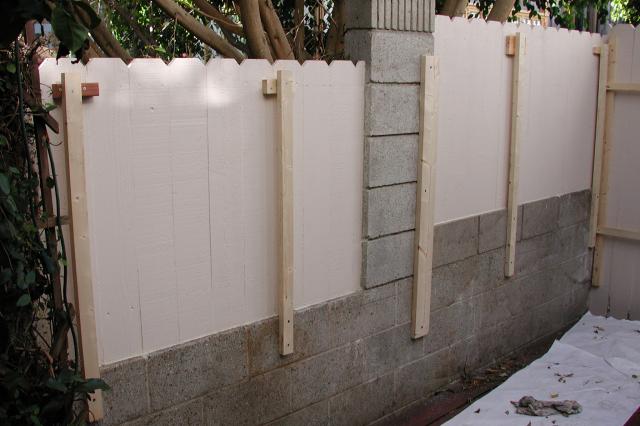

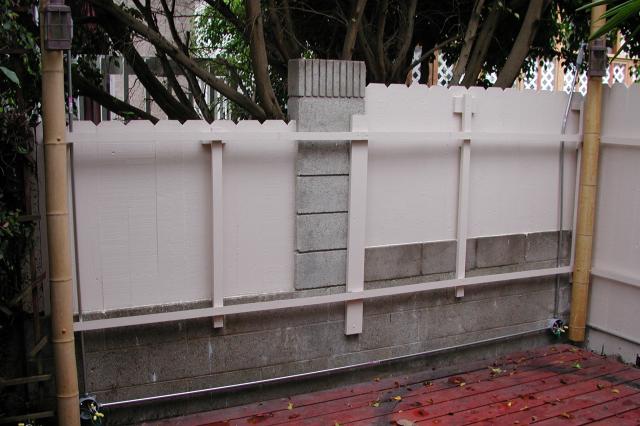

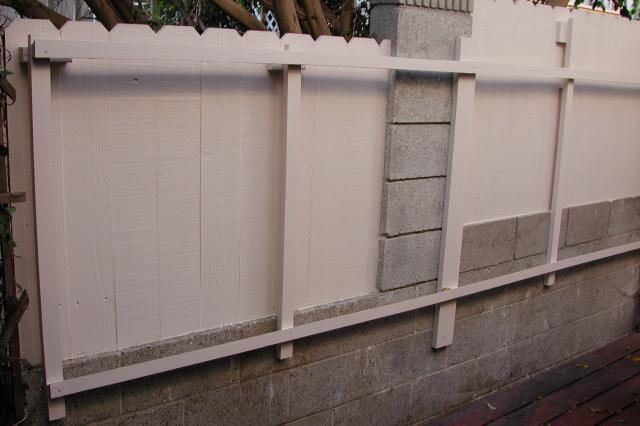

After a few more weekends of work all of the growth was removed. I then did some repair work to the fence and painted it. Actually that’s an understatement. I actually had to replace the fence along the back wall because it was badly damaged by termites and from where vines had pushed between the slats. If I didn’t fix it now, any future repairs would involve removing the bamboo fence. Plus the bamboo fence was to literally hang from this existing fence, so it had to be strong. So, new slats, painted on both sides with primer and two coats. I then caulked all of the seams to prevent any new vines from the neighbor’s yard from sneaking through. Of course they might still come over the top but at least they won’t do any damage. After a few more weekends, the above work was done and I was able to install the supports for the bamboo fence:

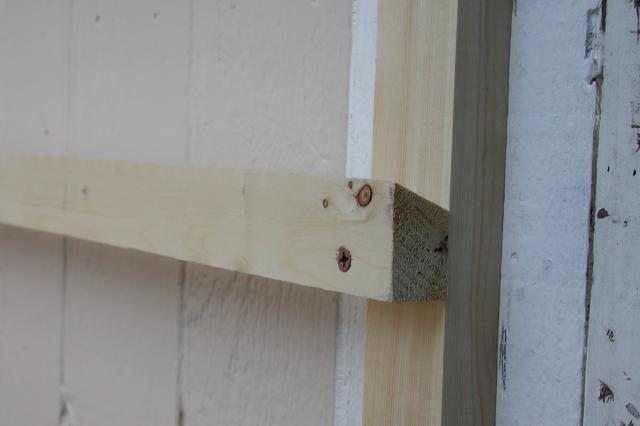

The crossbeams that the bamboo would mount to are angled so that rain water drains off:

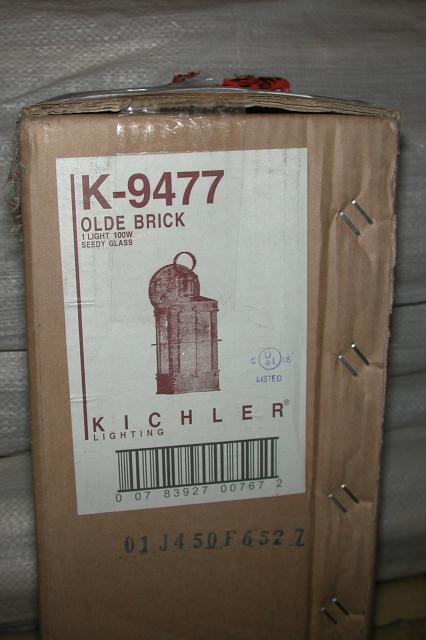

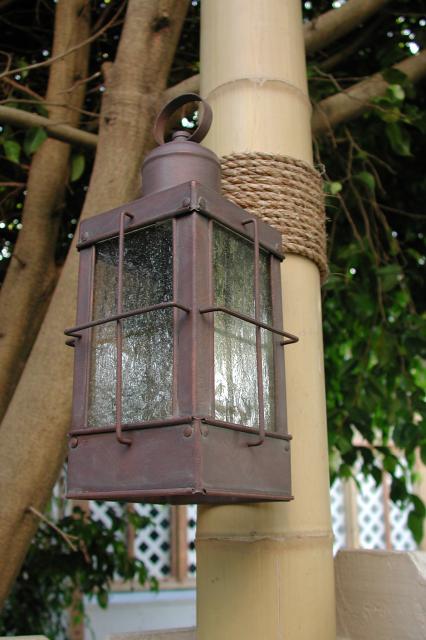

The light fixture I settled on. The other fixtures I liked had glass globes but I chose these because I wanted to be able to replace the glass with something that looked aged.

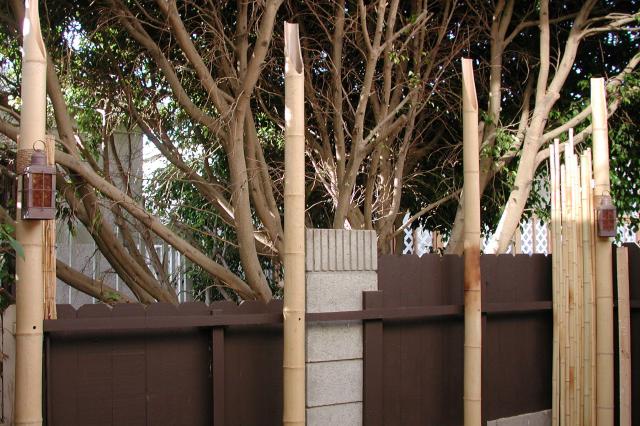

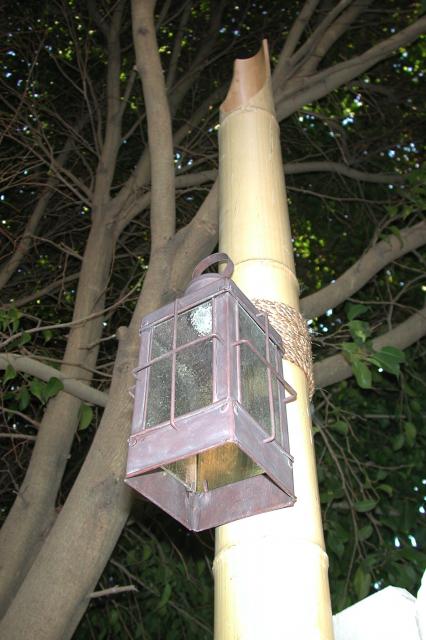

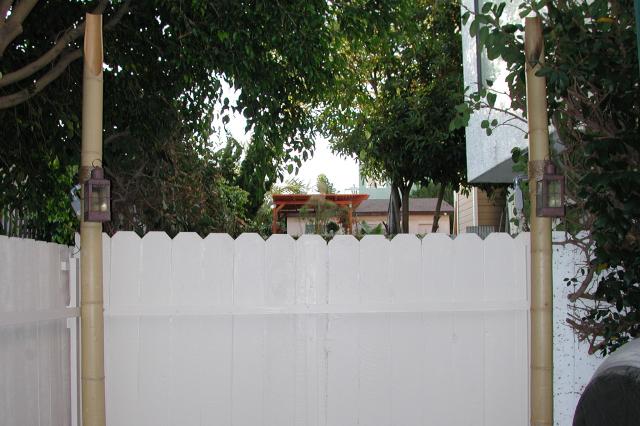

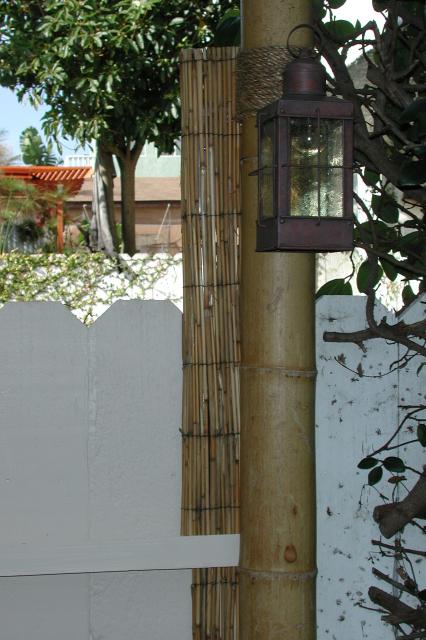

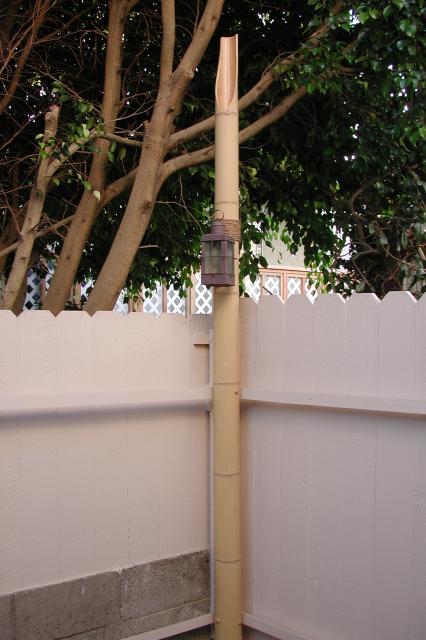

The posts with lanterns (still with stock glass) go up. I used a fine tooth saber saw to cut the tops of the posts:

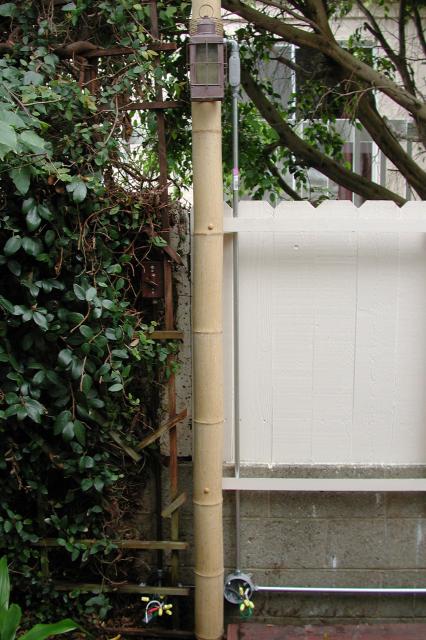

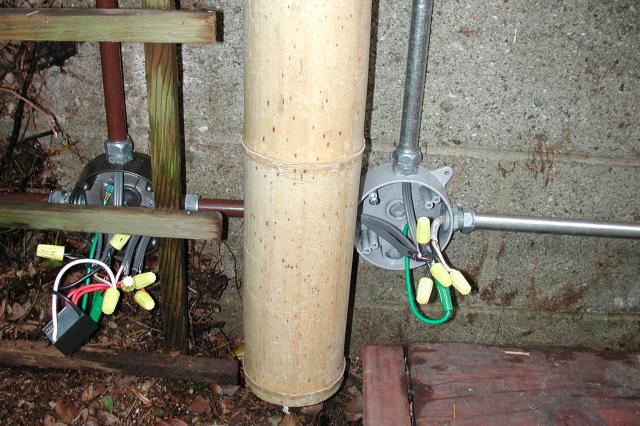

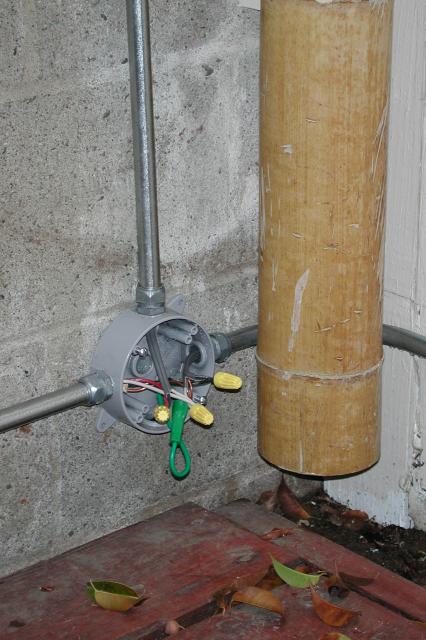

Now that the three lamp posts were installed I was able to move on to the electrical. I was able to tap into an existing outlet which was already along the back wall of the yard:

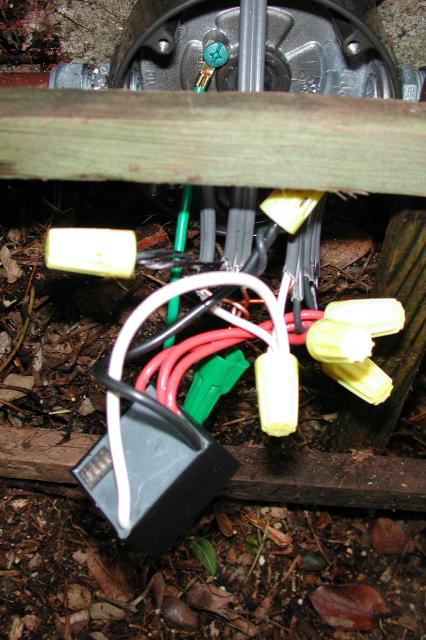

Here is a close up of the three channel random flicker circuit as originally pointed out by Tiki Lee over here. This is a really cool device. Each lamp is independent and softly flickers like a flame.
Thanks Tiki Lee!

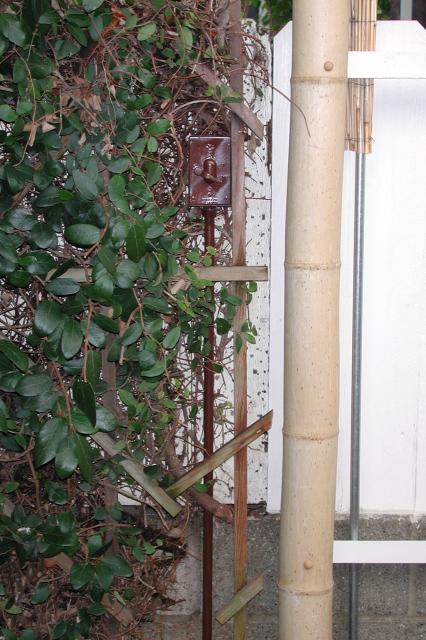

Switch for the lamps:

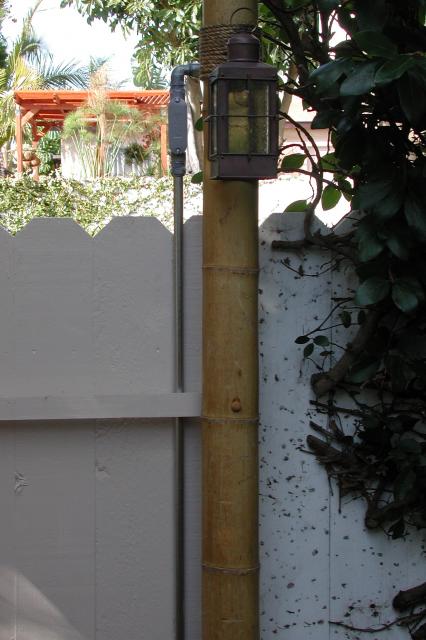

Since I attempt to be nice to my neighbors, I didn’t want the electrical to look obtrusive from the backside of the fence. So I wrapped the conduit. Unfortunately this didn’t stop the neighbors from complaining about the noise from my last late night gathering.

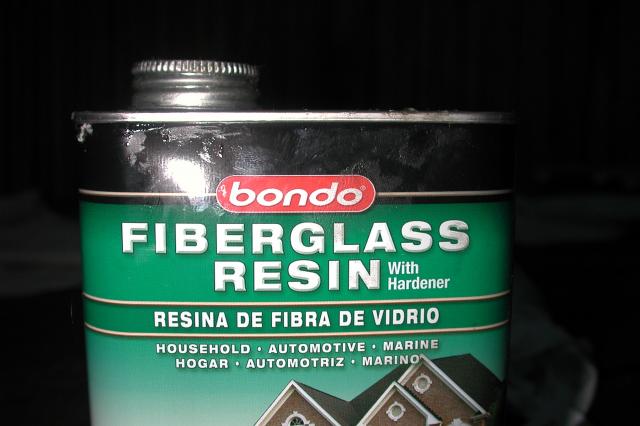

All of the bamboo was sealed on the ends with resin.

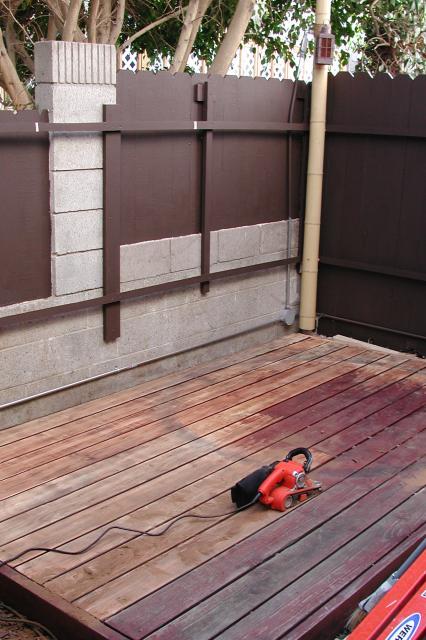

I decided it would be best to paint the fence a darker color so it would be less visible through the spaces between the bamboo. Refinishing of the deck has also commenced:
Fresh gravel has been laid along the perimeter:

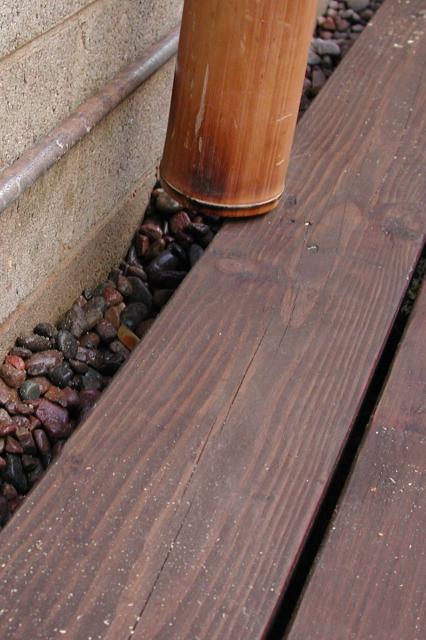

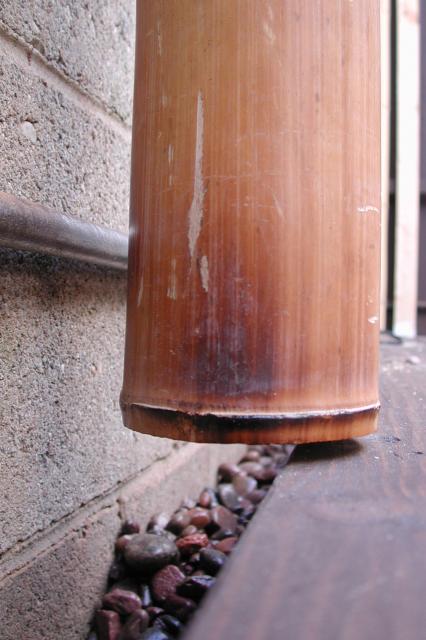

The bamboo must not be allowed to touch the ground (or deck in this case).

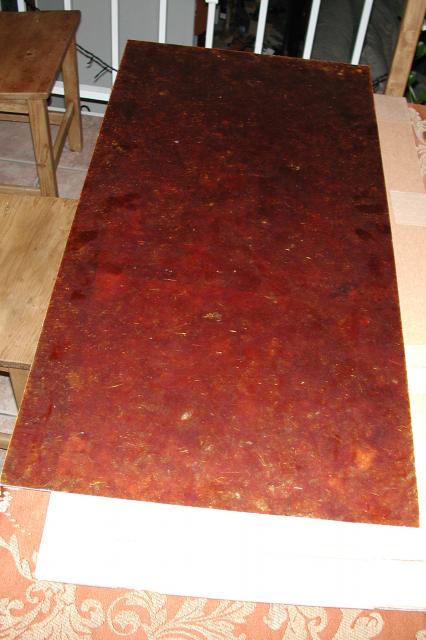

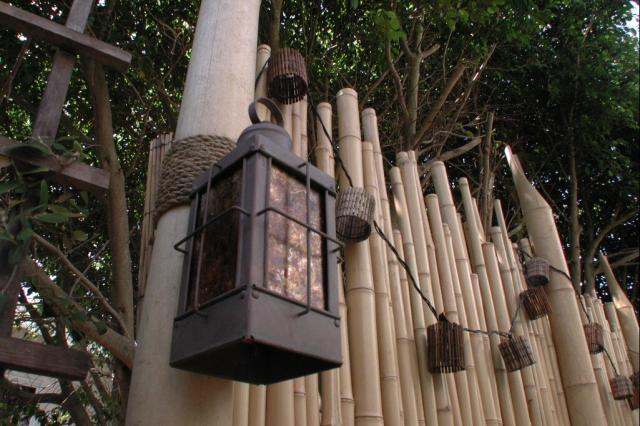

I replaced the stock glass in the lamps with amber mica. This stuff looks great when illuminated. I purchased it from here.

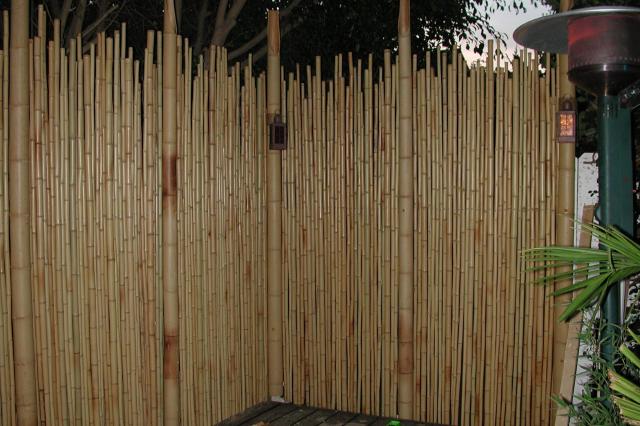

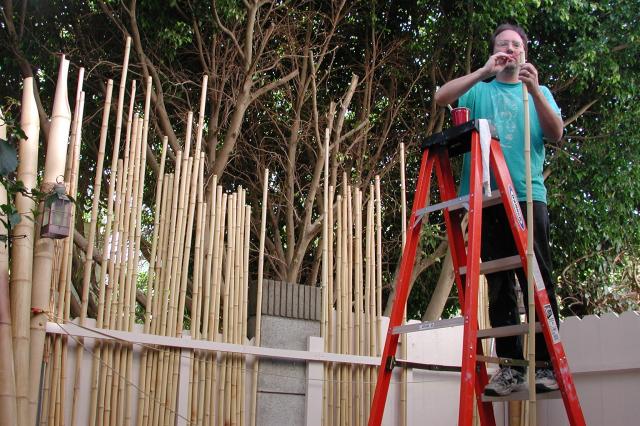

The final posts go up and the rest of the bamboo starts going in. The bamboo was all cut in random lengths (prior to sealing you dope!).

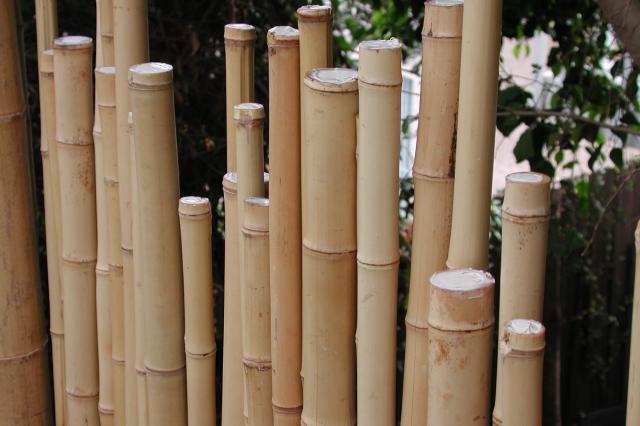

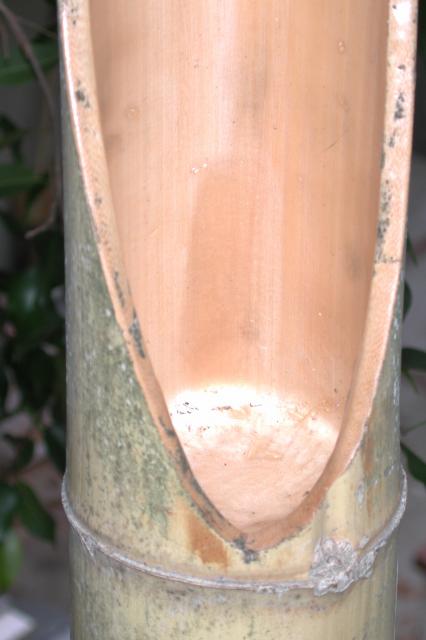

The tops of the bamboo are then filled with caulking to prevent standing rain water and mosquitoes.

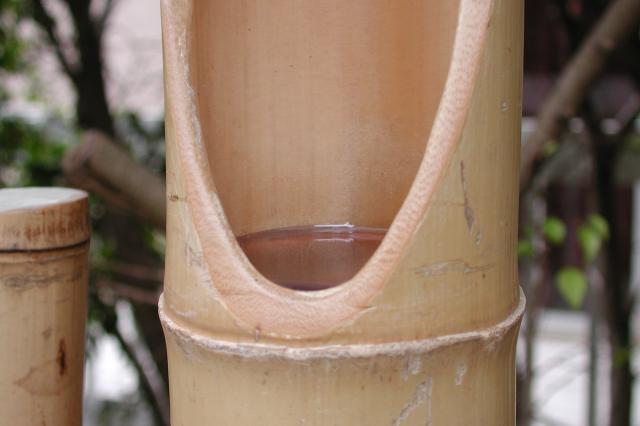

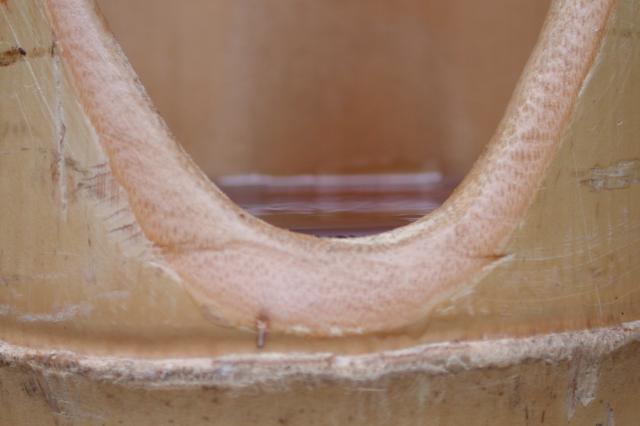

The post tops are filled with resin for the same reason.

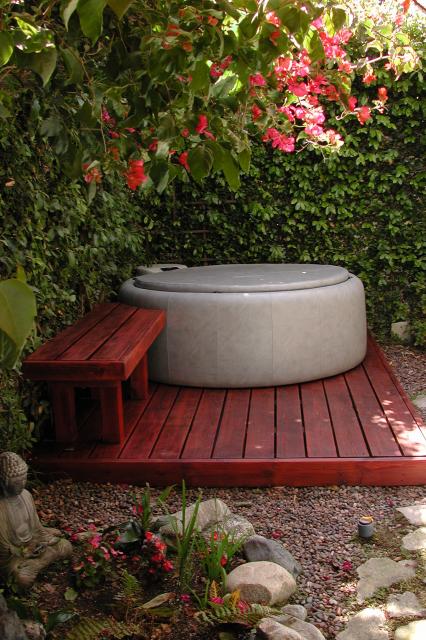

Before:

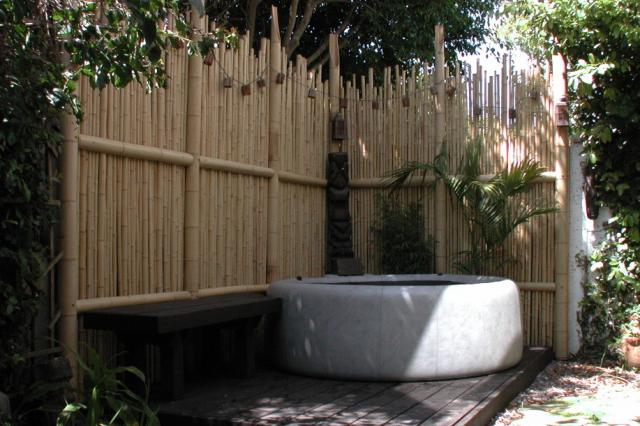

After:
One thing I chose not to do at this time was to completely seal the outside of the bamboo with some sort of varnish. Why? Because I was in no mood to sand off the waxy coating on the hundreds of pieces of bamboo. Over time the waxy coating will weather away (6 to 18 months?) and the bamboo will begin to change color, at this time I will seal the bamboo. I may use Australian Timber Oil unless someone here has a better recommendation.

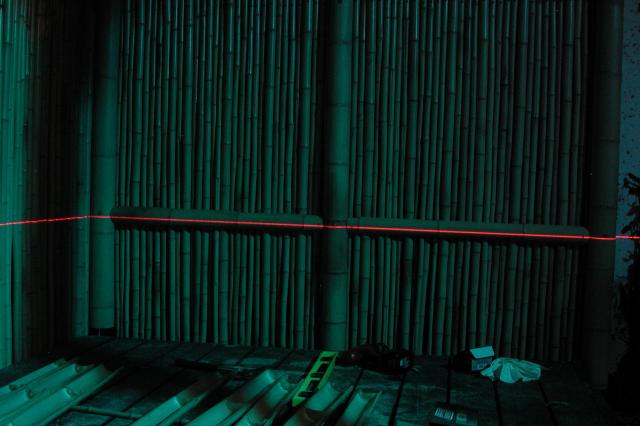

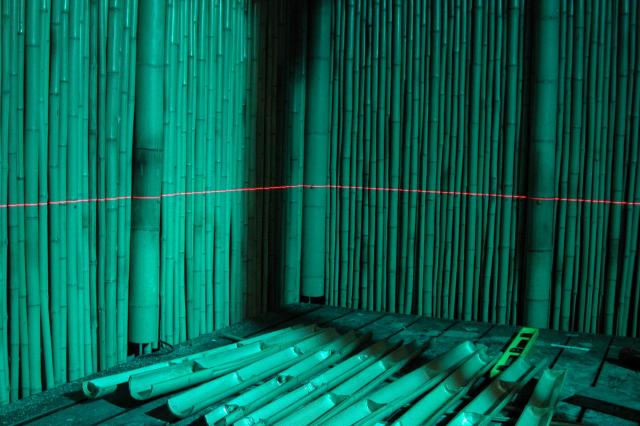

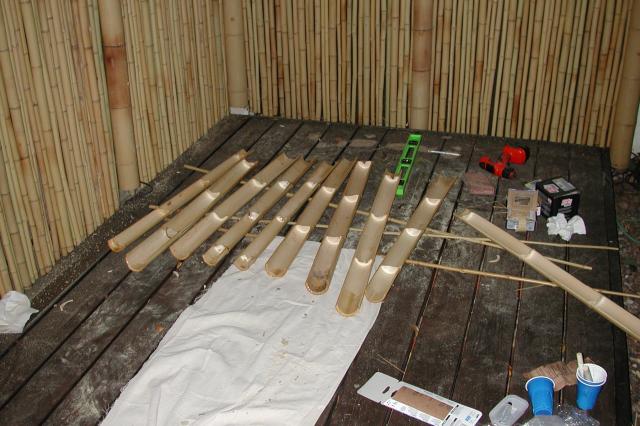

The cross beams are cut and ready to install. I aligned them the way the ancient Polynesians would have, with a laser:

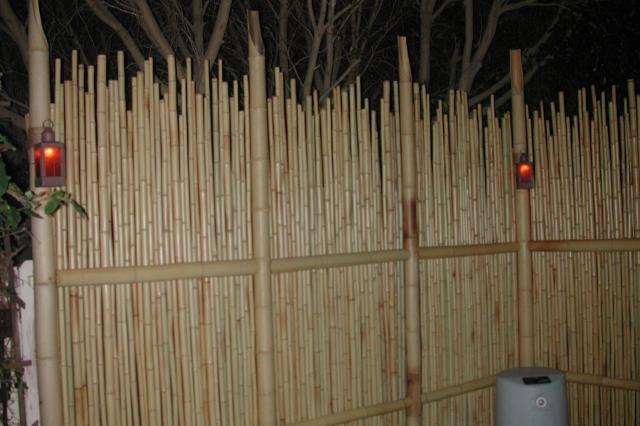

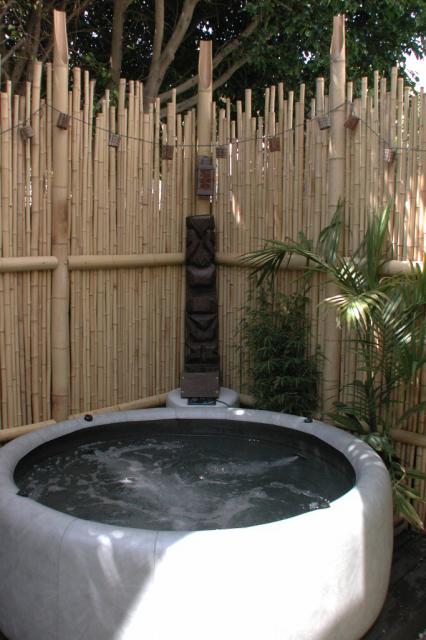

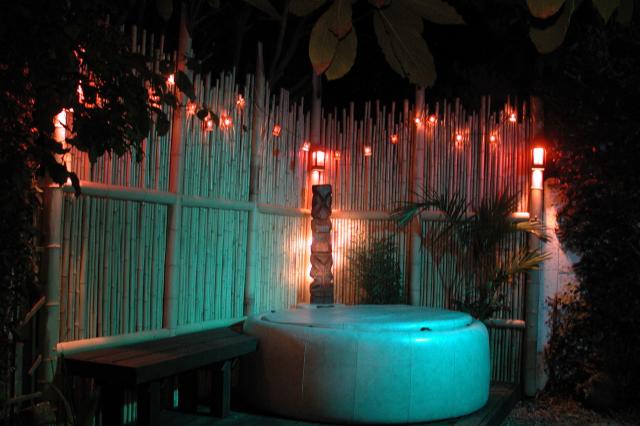

Pretty much done. The Tiki is a temporary one which I found for $40.00 at a garden décor shop which was going out of business. I will soon commission someone for something better. But for now, this Tiki is quite happy where it is.
Scoundrels enjoying the fruit of my labor:
Time for a Mai Tai.
(edited to fix image links)
[ This Message was edited by: Hakalugi 2008-08-08 02:05 ]
|
Humuhumu
Grand Member (5 years)
Joined: Aug 22, 2002
Posts: 3536
From: San Francisco
| Posted: 2006-04-27 11:33 pm Permalink
That turned out wonderfully! Great step-by-step, I almost feel like I could build one now. Almost. Yikes on the oppossum, though it looked like a smaller one. Good thing you had a cage handy. Thanks for all the pics!
_________________
Critiki - Ooga-Mooga - Humu Kon Tiki
|
Unga Bunga
Tiki Socialite
Joined: Jun 06, 2003
Posts: 5734
From: CaliTikifornia
| Posted: 2006-04-27 11:54 pm Permalink
Bartmans' got Bartballs!
Great ending.
Time for a Mai Tai.
|
ErichTroudt
Tiki Socialite
Joined: Mar 27, 2002
Posts: 295
From: SoCal
| Posted: 2006-04-28 10:04 am Permalink
Awesome Job man!!!!!
Thanks for the step by step. Those Lantern lights are way cool.
Erich
|
Monkeyman
Tiki Socialite
Joined: Mar 04, 2003
Posts: 2301
From: Vista, CA
| Posted: 2006-04-28 11:07 am Permalink
Lots of work and POW !!!! what a result.
Nicely done Hakalugi. Done up in the disney style. the bondo in each bamboo piece is over the top.
Crazeeee
_________________
|
Polynesiac
Tiki Socialite
Joined: Jan 29, 2004
Posts: 2023
From: San Pedro, CA
| Posted: 2006-04-28 1:48 pm Permalink
Great job on that fence - mm's right. It looks like it's straight outa adventure land.
great ideas on the resin/bondo at the tops of the bamboo - first class all the way!
_________________
Polynesiac - putting the "F" back in "ART"
|
kingtiki
Tiki Socialite
Joined: Oct 17, 2005
Posts: 113
From: Sandy Eggo, CA
| Posted: 2006-04-28 2:07 pm Permalink
WOW - that is beautifully done. Nice to see the hot tub populated by a naked guy right off the bat! It's not a party without a naked guy of some sort
_________________
|< | |\| [- '|' | |< |
|
Tiki Bird
Tiki Socialite
Joined: Sep 25, 2003
Posts: 850
From: Cerritos, Ca.
| Posted: 2006-04-28 3:26 pm Permalink
Awesome job Hakalugi! Need to get me one of those Polynesian Lasers myself!
TBird.
|
hodadhank
Tiki Socialite
Joined: Dec 28, 2005
Posts: 1682
From: Mission Beach, CA
| Posted: 2006-04-29 12:24 am Permalink
Quote:
|
On 2006-04-27 23:54, Unga Bunga wrote:
Bartmans' got Bartballs!
|
|
Jeezus that thing is pissed! This one's more my speed...
|
The Sperm Whale
Tiki Socialite
Joined: Aug 23, 2004
Posts: 1538
From: Lakewood California
| Posted: 2006-04-29 09:09 am Permalink
I really liked your step by step and found it very informative. The results are great. I personally have done quite a bit of work with bamboo over here at my pad and I know it can be very time consuming. I was wondering if you used any reading material first before you started? and also when am I coming over??
Later,
Spermy
_________________
EEEEeeeeeeAAAAaaaaaaOOOOooooooWWWWWwwwwWWWw
|
Chongolio
Tiki Socialite
Joined: Oct 02, 2002
Posts: 2765
From: The Coast of Kauai
| Posted: 2006-04-29 10:51 am Permalink
Great Post Hakalugi you and Bartman did a great job on the project as well as the post. I bet that possum has forgiven you by now too. If the critter comes back grab some carrots and potatoes and invite him in the tub for some possum stew.
Chongolio
_________________
Lost-Isle
Coconut Wired Podcast
Barefoot bloggin'
[ This Message was edited by: chongolio 2006-05-18 13:06 ]
|
8FT Tiki
Tiki Socialite
Joined: Nov 30, 2003
Posts: 1172
From: Kansas City, MO
| Posted: 2006-04-29 6:07 pm Permalink
Hakalugi, I am very impressed with the amount of work and skill you needed to complete this project. It turned out so nice. You are certainly deserving of the praise from your friends. Congrats on a super result.
_________________
I once was lost....... .....but now I'm found
[ This Message was edited by: 8FT Tiki 2006-05-05 16:24 ]
|
Hakalugi
Site Administrator
Joined: Aug 10, 2004
Posts: 2804
From: Redondo Beach, CA
| Posted: 2006-04-30 10:25 pm Permalink
Hey, thanks for all of the nice comments!
|
Hakalugi
Site Administrator
Joined: Aug 10, 2004
Posts: 2804
From: Redondo Beach, CA
| Posted: 2006-04-30 10:25 pm Permalink
Quote:
|
On 2006-04-27 23:33, Humuhumu wrote:
... Yikes on the oppossum, though it looked like a smaller one.
|
|
Yeah, that one is a little on the small side. Here's one that's a bit bigger:
(edited to fix image link)
[ This Message was edited by: Hakalugi 2008-08-08 00:01 ]
|
Hakalugi
Site Administrator
Joined: Aug 10, 2004
Posts: 2804
From: Redondo Beach, CA
| Posted: 2006-04-30 10:26 pm Permalink
Quote:
|
On 2006-04-29 09:09, The Sperm Whale wrote:
I was wondering if you used any reading material first before you started? and also when am I coming over??
|
|
Most of my research was done online. There was one book I picked up: "Building Bamboo Fences" by Isao Yoshikawa but I ended up not using any of the designs in it.
And yes, you must come over. I'll be talking to you.
|
