Bone Carving Q+A |
Tiki Duddy
Tiki Socialite
Joined: Jun 04, 2006
Posts: 759
From: Manitoba, Canada
|  Posted: 2007-02-25 1:52 pm Permalink
Goodday all. i am pretty interested in alot of the bone or stone carvings that alot of you come up with.
i was just wondering what kind of standard tools you use. i have a dremel that i think alot of pieces could hook up to. i would also like to know what kind of rock or bone you need. can you just pick some random one? and safety procautions, i grinded some rock with my dremel one day and it didnt smell to great. what should i use to protect my lungs from that dust?
thanks very much for any comments
_________________
[ This Message was edited by: Tiki Duddy 2007-03-06 08:21 ]
|
Tamapoutini
Tiki Socialite
Joined: Aug 30, 2006
Posts: 1529
From: Aotearoa (New Zealand)
| Posted: 2007-02-25 2:17 pm Permalink
Kia ora Duddy.
Have you been through the Stone Carving Q&A thread. Not the definative volume on the subjuect but we're getting there. Check it out.
Tama
|
pdrake
Tiki Socialite
Joined: Jan 13, 2006
Posts: 1764
From: las vegas
| Posted: 2007-02-25 2:18 pm Permalink
pick up a good sized bone from a pet store. i got a nice beef bone, femer i think, from petsmart. it was bleached and sterilized and only about 6 bucks. it's amazing what can come out of it. get some drum bits from smokey mnt wood carvers and good sanding material. get some grits that go up to 2000 if you can.
sanders:
http://www.woodcarvers.com/drumsander.htm
paper:
http://www.woodcarvers.com/swisssand.htm
use low speed. i have a foot pedal to control my speed on my flex shaft machine.
get a cartridge type respirator. the dust may be bad, don't know for sure, but the smell is pretty rank and these help.
get a magnifying headpiece.
well, there's my advice.
|
flynny
Tiki Socialite
Joined: Jun 19, 2006
Posts: 274
From: Devon, UK
| Posted: 2007-02-25 11:12 pm Permalink
Excellent advice PD, also look out a book, Bone Carving by Stephen Myre, a great book with some solid advice especially lashing.
Regards
Flynny
|
pdrake
Tiki Socialite
Joined: Jan 13, 2006
Posts: 1764
From: las vegas
| Posted: 2007-02-27 6:03 pm Permalink
bump
|
Tiki Duddy
Tiki Socialite
Joined: Jun 04, 2006
Posts: 759
From: Manitoba, Canada
| Posted: 2007-02-27 6:48 pm Permalink
hey you guys thanks. ive seen some peoples work on bone and stone and it looked really cool and different when i first saw it. ever sinse then ive wanted to try it but i really didnt know how or what to do. i tryed it out a while ago i have a small stone piece that i made and posted in one of my other posts. i got a dremel a while ago so that would probably do.
is there any sort of carving bits for bone/stone that could go in the dremel?
thanks.
_________________
|
flynny
Tiki Socialite
Joined: Jun 19, 2006
Posts: 274
From: Devon, UK
| Posted: 2007-02-27 11:08 pm Permalink
Hi TD
Tungsten carbide bits are pretty good, Dremel make them but I found a guy in China who sell replicas (on ebay) that are pretty good. Also it's worth investing in a decent set of needle files again there is a guy on ebay who sells old new stock Vallorbe and Grobet, get 00 or 0 cut which won't clog
|
pdrake
Tiki Socialite
Joined: Jan 13, 2006
Posts: 1764
From: las vegas
| Posted: 2007-02-27 11:30 pm Permalink
http://www.lopacki.com/
good, cheap stuff.
|
Tiki Duddy
Tiki Socialite
Joined: Jun 04, 2006
Posts: 759
From: Manitoba, Canada
| Posted: 2007-02-28 5:07 pm Permalink
hey guys thanks alot. im gonna go check at my local hardware store for some of these tools the next chance i get then ill fill you in.
untill then see you around
_________________
|
mcsommerreid
Member
Joined: Dec 13, 2006
Posts: 6
From: san leandro, California
| Posted: 2007-02-28 5:33 pm Permalink
Definitely go with a cartridge type respirator, not just a mask type nuisance filter. Bone dust can do a number on the lungs. Abalone shell is also a bit like that (I'm working with abalone currently, myself). It's not so much toxicity, as it is the creation of calcium deposits in the lungs.
A N95 cartridge filter with a good seal fixes that right up.
|
GMAN
Tiki Socialite
Joined: Jul 14, 2005
Posts: 2994
From: My Island
| Posted: 2007-03-03 1:35 pm Permalink
Duddy,

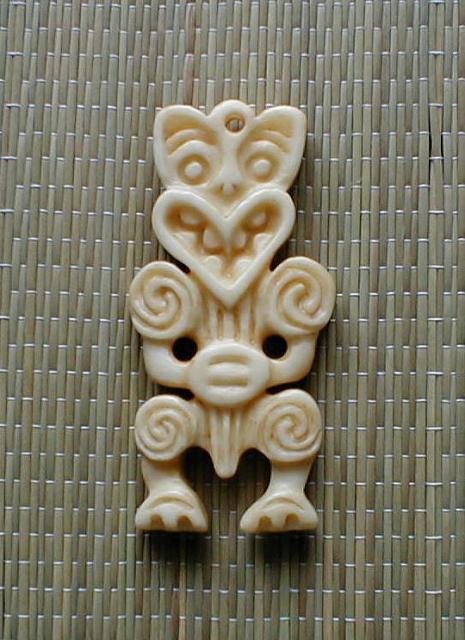

Perry asked me to put together a few pics and ideas here to get you going. Here's a try at a medium sized bone "how to" lesson with pics of pieces I made previously. I hope this helps. Here you go...
Get a piece of bone from a pet store or a butcher. Most of mine comes from a butcher and I clean it up myself using a wire brush, boiling water, 20 volume peroxide, and elbow grease. Peparing bone could be a whole thread in itself.

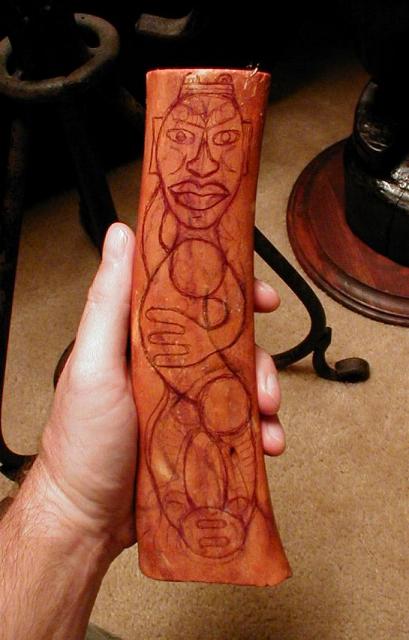

So, let's start. Now that you have your bone, think about the shape, side angles, and any flaws on the bone. Now work a piece out on paper, or on the bone as I do. If you made your drawing on paper, transfer it to the bone now. It will look something like this...

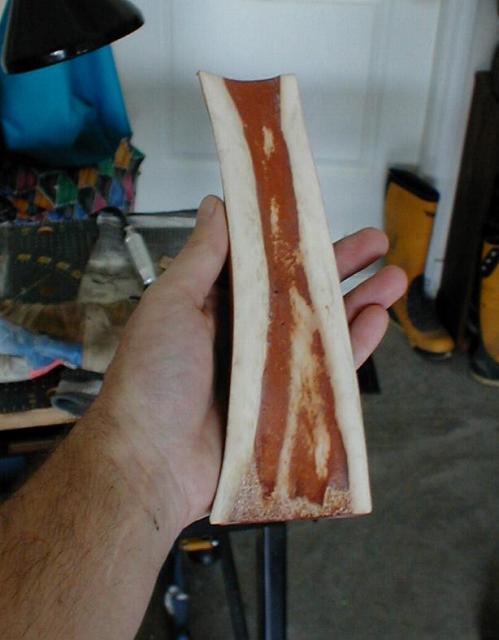

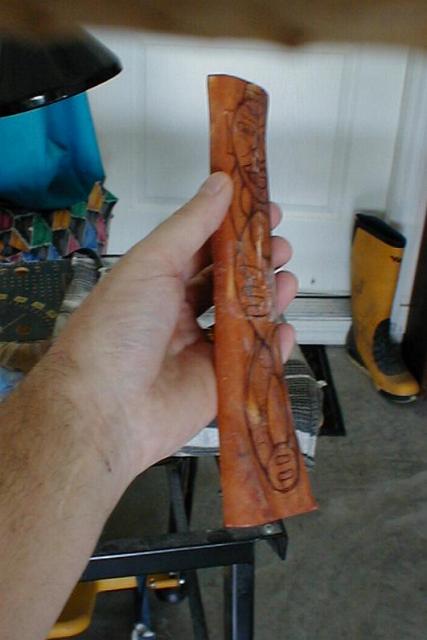

Ok, now you need to split the bone with a saw, leaving 1/2 to 1/3 of it left for your carving. I use a machining clamp and a jigsaw for this, but a band saw would be the tool of choice. Do it like this...

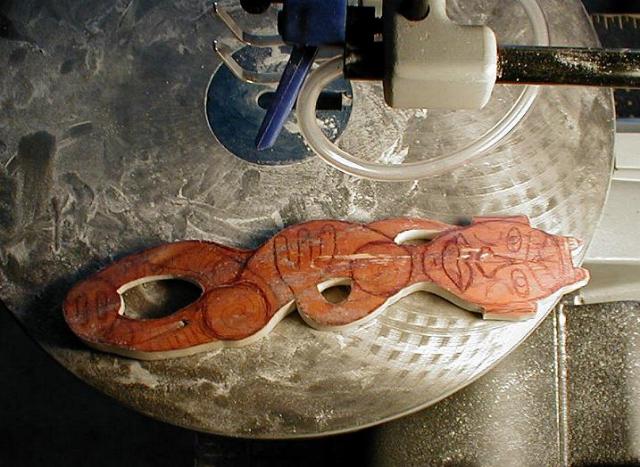

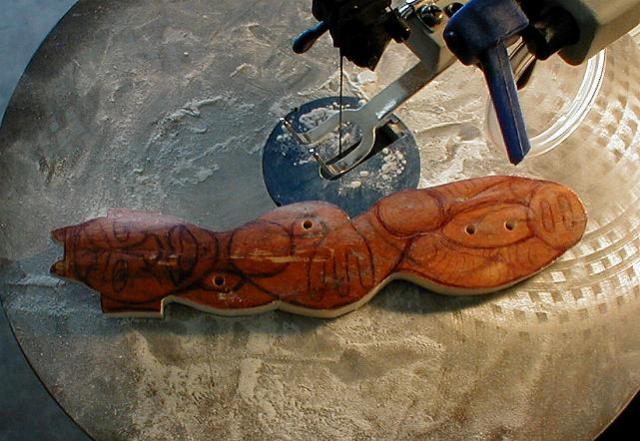

Ok, now we are on our way. Next, you need to rough out the shape according to your drawing. I use a scroll saw to do this....

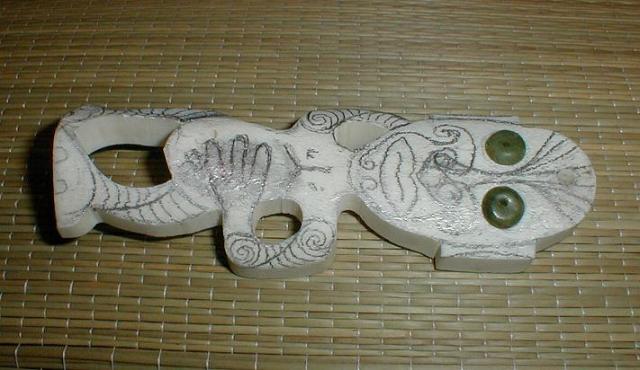

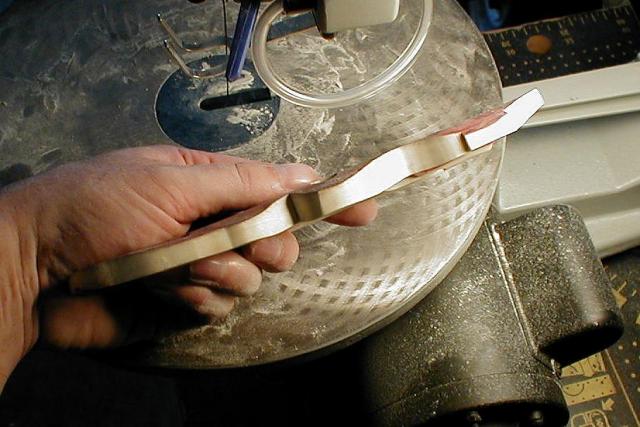

As you can see in the pic above, I have also used a drill press to make small holes in the areas where I need to do open work. Once I rough out the main shape, I use the scroll saw to remove the material inside the open work areas.....

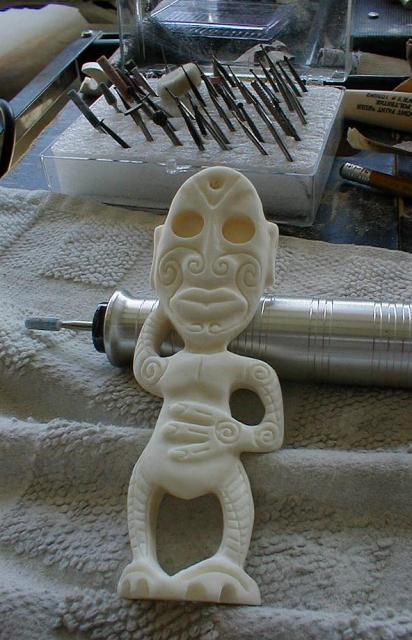

Once you have the bulk of the material removed we can start doing the relief carving. For this I use a Foredom flex shaft unit and a rotating handpiece. If you have a Dremel, this is where you would use it.

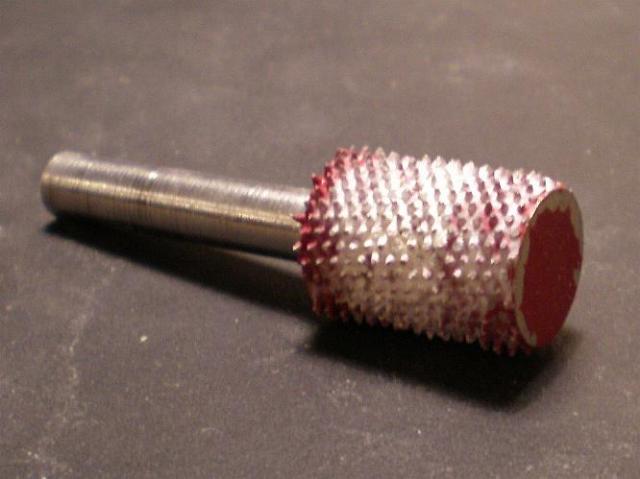

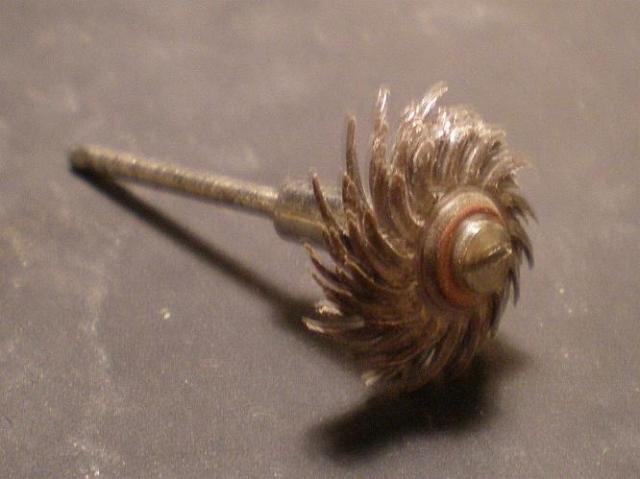

First I use a Typhoon bit to work on the back edges where the bone is angled and may be very thick. Watch yourself here, these suckers will really bite ya. This removes lots of materal FAST. I do not recommend using this bur for anything on the front side of the piece!

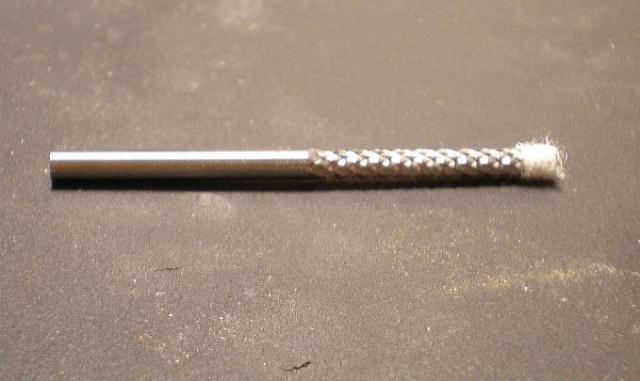

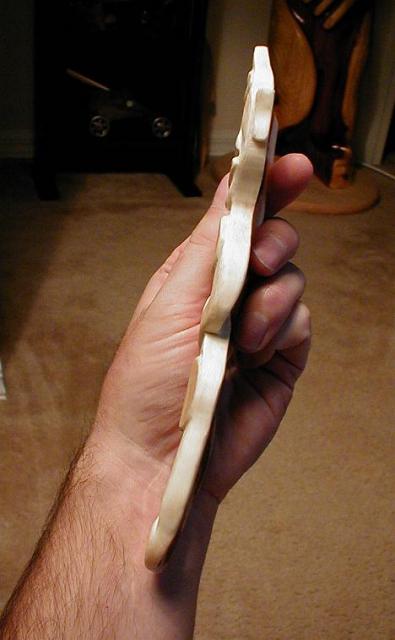

Now I start using different cutters and remove material giving the piece it's basic front relief/side profile. For areas such as legs and arms where large areas need to be reduced, I use the long cutter pictured below. While using this, I lay it flat and draw it toward me (kinda like using a pen knife). I have wrapped cloth around the tip so it doesn't bite me. I use a smaller "pineapple" cutter to work the edges around the faces, arms etc, where I need to use the tip and be precise.
Now I need to switch projects, as my pics ran out

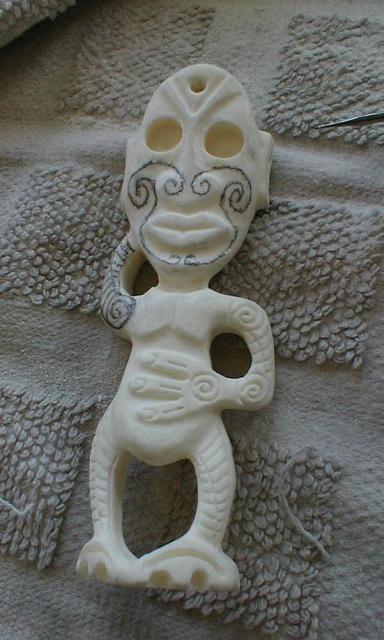

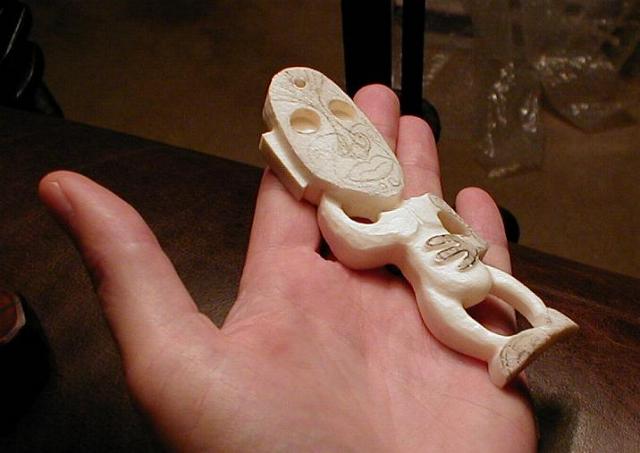

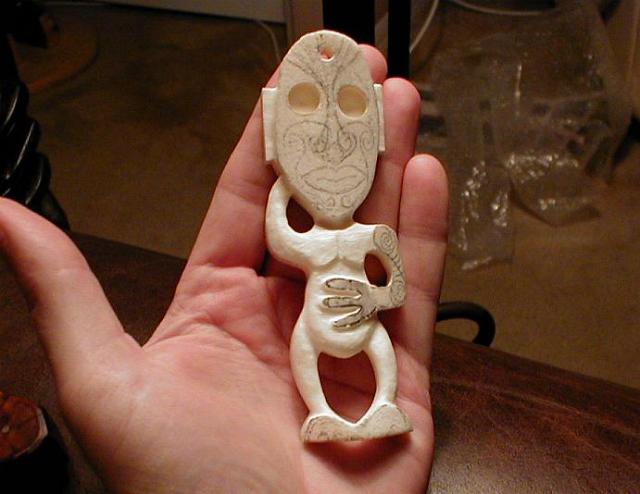

So here we are at a similar stage in another piece....

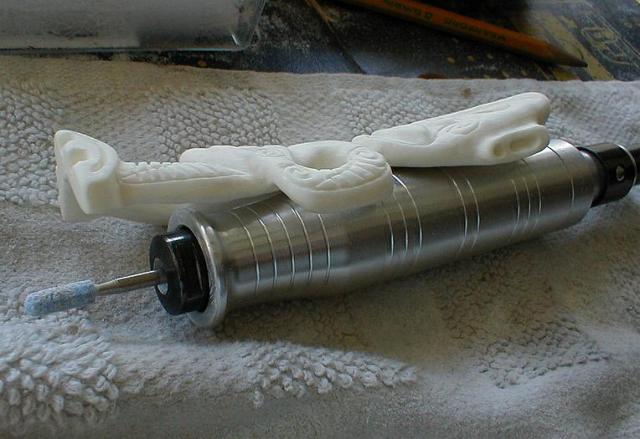

Once we get most of the relief carving done on him, I give him a quick hit with a rough sanding drum and a medium sanding stone.

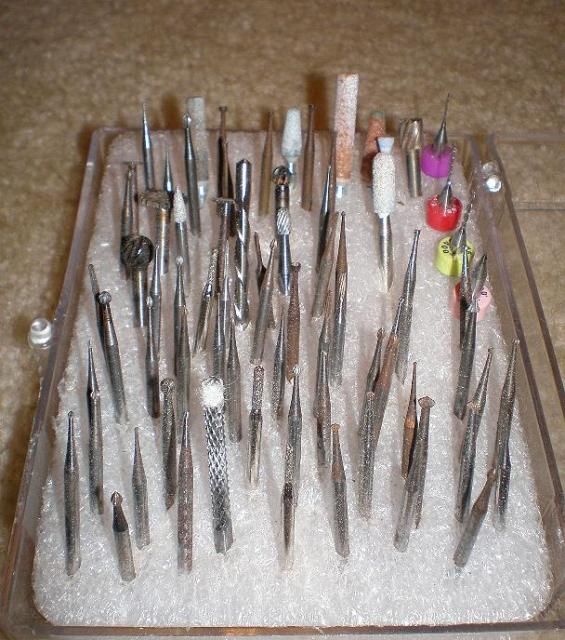

Now we are ready to use a bunch of smaller toolz. I generally use several sizes of bud burs, ball burs, diamond burs, and other cutters. Here you should have a mix of styles and sizes because it will be trial and error to find what works best for you. Here is some of what I use.....

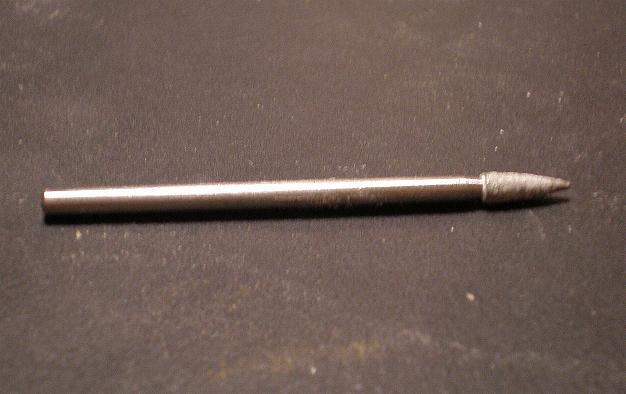

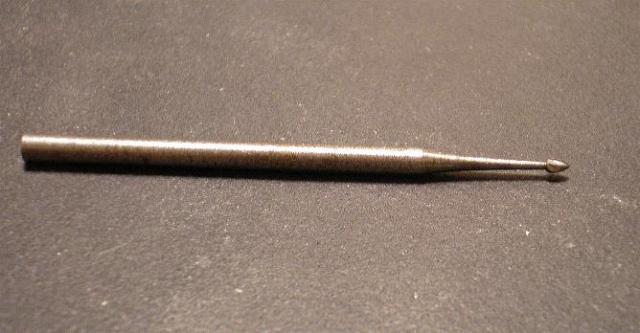

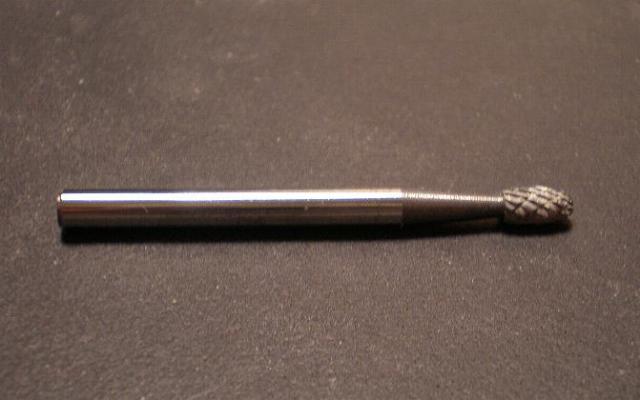

a small bud....

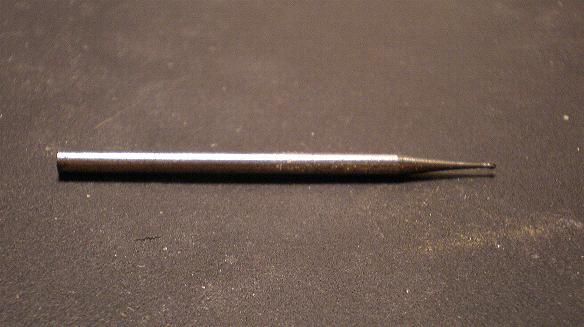

a smaller bud....

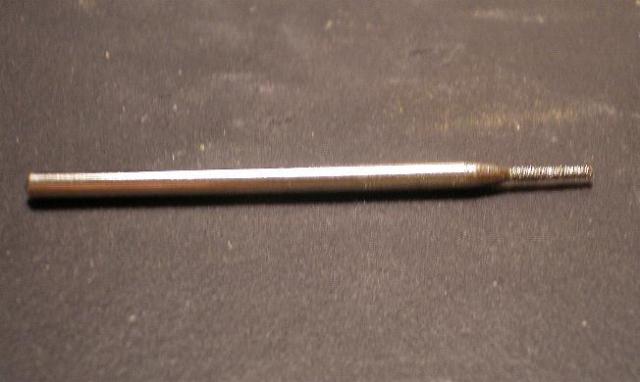

Diamind burs in several shapes/sizes are good for cleaning up saw cuts and for working in tight areas....
For nice even detail lines, I like to use bud burs and lay them on their side. By doing this the tool with track straight and not leave a funcky, wiggly, uneven trail like a ball bur.

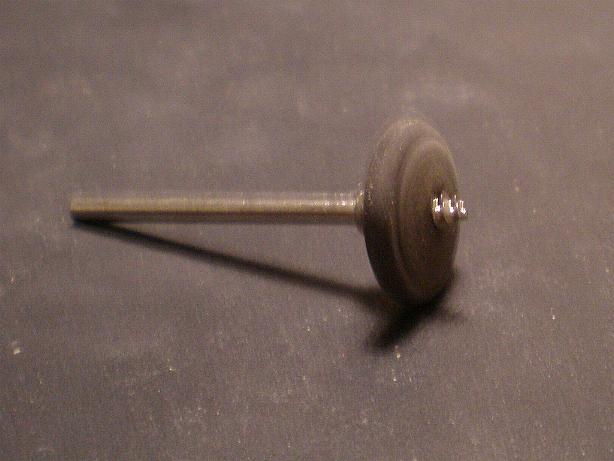

Once you get all the details in and all the cleanup diamond work completed, it's time to sand. I hand sand using 100, 150, and 220. Then I switch to my rotary handpiece and use impregnated plastic and rubber attachments. These are great for getting down into detailed areas and removing sharp edges.
After these, I often sand with 300 on up to 1,000, but very quickly.

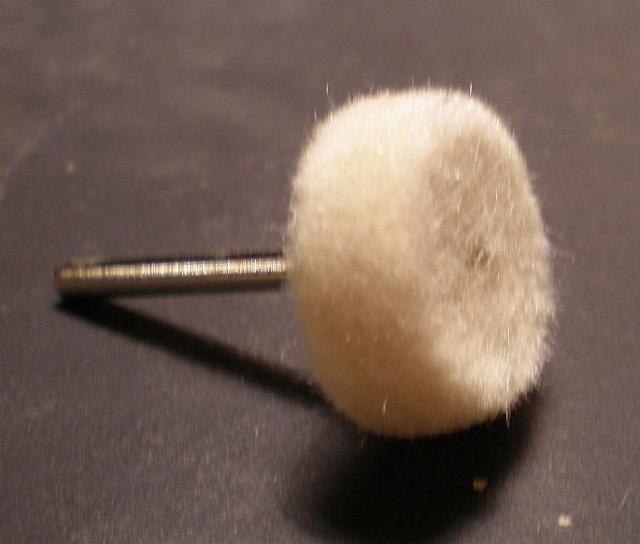

Next, I use a polishing buff for a quick hit. You can use some super fine polishing compound/powder if you wanna get it any smoother.

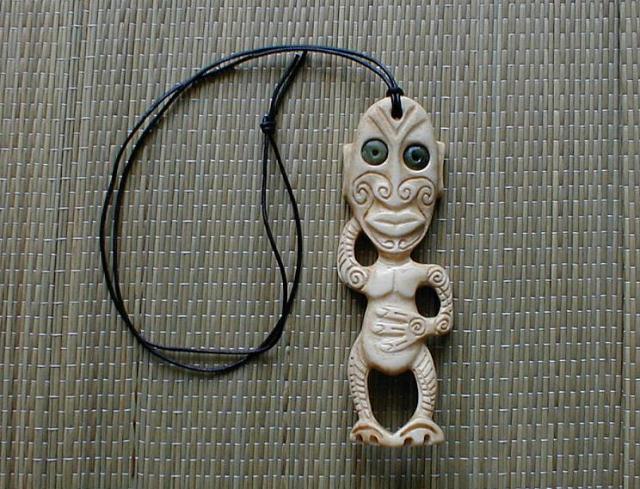

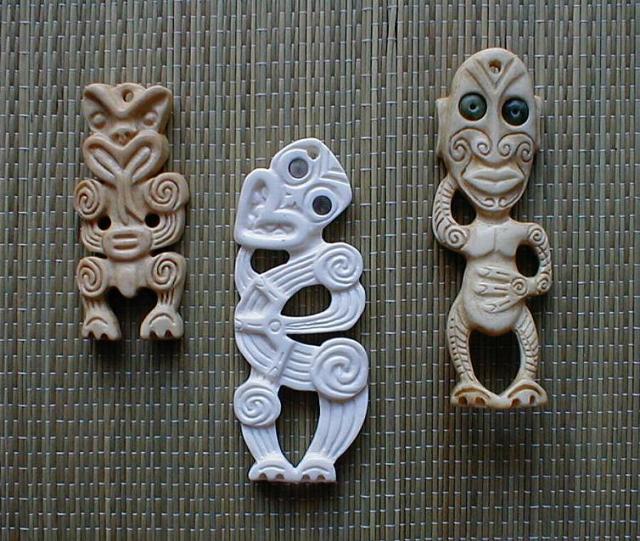

All that is left now is to add some age/color to it if you want to. I like to use a lipton tea bag and some cold water to make a pigmented bath for the bone. The amount of color picked up by the bone depends on the strength of the solution, the degree of polish you put on the bone, and how long you leave it to soak. 12 hours should be sufficient for a real rich color. More highly polished bones will not take color as well. If you have a high polished piece and the tea isn't giving you the color you want, add a little cold coffee. Be sure to check it often as the coffee adds color quick.

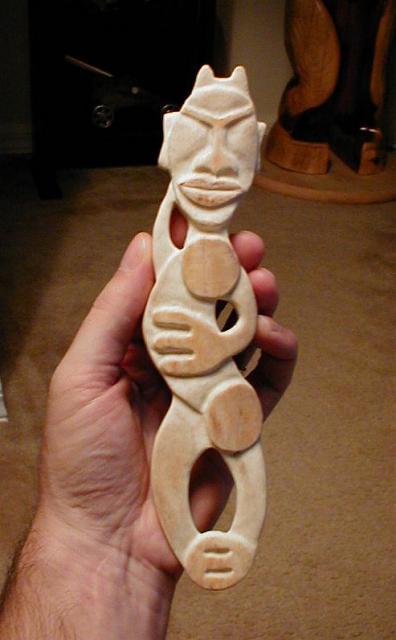

After coloring, you can give it another hit with the polishing buff to lighten up the high areas which will age it a little more.
well, there you go. I hope this helps.
-Gman
_________________
http://www.oceanandislandarts.blogspot.com/
|
Tiki Duddy
Tiki Socialite
Joined: Jun 04, 2006
Posts: 759
From: Manitoba, Canada
| Posted: 2007-03-03 3:01 pm Permalink
GMAN! thanks so much! that is gonna come in handy. i just need to get my hands on a resparator some how.
once i start on a piece ill fill you guys in.
thanks all of you
_________________
|
GMAN
Tiki Socialite
Joined: Jul 14, 2005
Posts: 2994
From: My Island
| Posted: 2007-03-03 4:32 pm Permalink
You bet Duddy. Good luck, be careful, and PM me if you need any help.
-Gman
_________________
http://www.oceanandislandarts.blogspot.com/
|
flynny
Tiki Socialite
Joined: Jun 19, 2006
Posts: 274
From: Devon, UK
| Posted: 2007-03-03 11:22 pm Permalink
GMan
Thats excellent work, now that's what I call answering a tips on bone carving question, brilliant man.
Regards
Flynny
|
pdrake
Tiki Socialite
Joined: Jan 13, 2006
Posts: 1764
From: las vegas
| Posted: 2007-03-03 11:27 pm Permalink
that was one of the most comprehisnive explinations i've ever seen. better than myhre's book.
|
