Plaster Mold Making & Some Ceramics |
MadDogMike
Grand Member (3 years)
Joined: Mar 30, 2008
Posts: 6412
From: The Anvil of the Sun
|  Posted: 2008-06-13 10:06 am Permalink

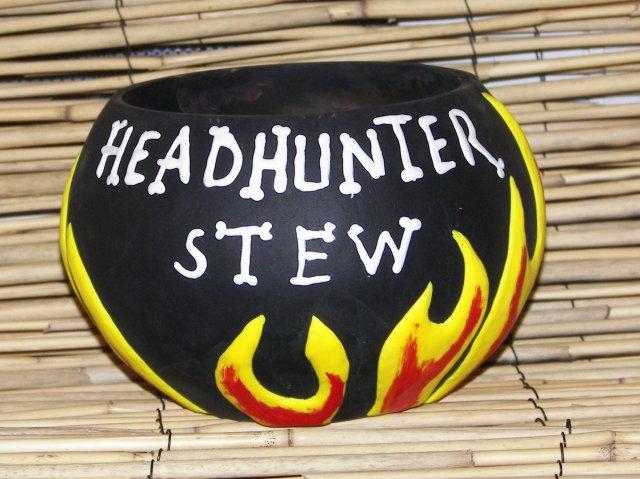

Working on my next slip-cast project, not exactly "tiki" but I guess it's Polynesian Pop. This is actually the model, hope to make a mold from it.
The "surprize" at the bottom of the mug will be cast separately as a medallion and added on.
After making my model, I did an internet search and found someone had beat me to it (again) Mauna Loa already made one. I guess mine is an updated version.
_________________
Clay, the oldest and most divine art media;
"And now, from the clay of the ground, the Lord God formed man" Genesis 2:7
Pirate Ship Tree House
|
Paipo
Tiki Socialite
Joined: Jun 22, 2006
Posts: 1886
From: Aotearoa / NZ
| Posted: 2008-06-13 6:18 pm Permalink
Sorry to be the bearer of bad news, but someone beat you to the updated version too....
_________________
|
MadDogMike
Grand Member (3 years)
Joined: Mar 30, 2008
Posts: 6412
From: The Anvil of the Sun
| Posted: 2008-06-13 9:05 pm Permalink
OK !!!! Moving on to the next project! Anyone ever work with alginate?

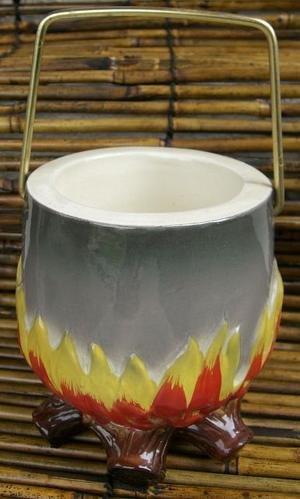

EDIT - That's funny; I thought about adding a cross to the bone pile and calling it "Missionary Stew" - the "Cannibal Pot" has a cross in the bone pile too.
[ This Message was edited by: maddogmike 2008-06-13 21:10 ]
|
teaKEY
Tiki Socialite
Joined: Nov 09, 2004
Posts: 3663
From: The thumb !
| Posted: 2008-06-15 4:35 pm Permalink
Quote:
|
On 2008-06-13 18:18, Paipo wrote:
Sorry to be the bearer of bad news, but someone beat you to the updated version too....
|
|
Sorry to be the bearer of bad news, but someone beat him to it still The first in a long time
No one is laying to calm the idea and saying that no one else can make one, just showing that others had the great ideas to make one first.
[ This Message was edited by: teaKEY 2008-06-27 06:49 ]
|
Sneakytiki
Tiki Socialite
Joined: Mar 31, 2003
Posts: 1795
From: Boise, Idaho
| Posted: 2008-06-17 12:27 am Permalink
Quote:
|
On 2008-06-15 16:35, teaKEY wrote:
Quote:
|
On 2008-06-13 18:18, Paipo wrote:
Sorry to be the bearer of bad news, but someone beat you to the updated version too....
|
|
Sorry to be the bearer of bad news, but someone him to it still The first in a long time
|
|
"But someone him to it still"
?????????????????????????????
Its not like its an original idea period! It's been drawn more times than tiki mugs have been sculpted. The idea that anyone can lay claim to this idea is as ludicrous as someone saying they created the first stacked totem mug.
Nice sculpt MadDM!
_________________
To drown sorrow, where should one jump first and best? "Certainly not water. Water rusts you." -Frank Sinatra
[ This Message was edited by: Sneakytiki 2008-06-17 00:27 ]
[ This Message was edited by: Sneakytiki 2008-06-17 00:29 ]
|
MadDogMike
Grand Member (3 years)
Joined: Mar 30, 2008
Posts: 6412
From: The Anvil of the Sun
| Posted: 2008-06-17 5:11 pm Permalink
Thanks for the input folks and for the kind words SneakyTiki. I'm afraid my design has more than just a passing resemblence to Rum Demon's even though it was an "independent discovery". Maybe I'll make up a few for personal use, maybe I'll just move on to my next design.
_________________
Clay, the oldest and most divine art media;
"And now, from the clay of the ground, the Lord God formed man" Genesis 2:7
Pirate Ship Tree House
|
tikitony
Grand Member (6 years)
Joined: Aug 18, 2002
Posts: 854
From: Ventura, CA
| Posted: 2008-06-18 11:05 am Permalink
Wow, great thread here. That Okidoki mug is AWESOME!!! On my molds, I forgot to put in a funnel, so the rims of my mugs end up being a pain to fix. Great job on the photos and process. Makes me want to get started on my next mug!
I was able to make a master mold by putting the plaster pieces in a box, with flatsides down for an open faced mold. I clear-coated the plaster, then sprayed Mold Release, and I then poured $150 worth of mold making latex over the four pieces. I had a 4 piece plaster mold, so I put two pieces in a box, then the other two in another box.
After the latex dried, I just popped out the plaster mold from the latex. This plaster mold was unusable because it had been clearcoated, which stops the absorption of water.
I then mixed a lot of plaster for 2 days straight, pouring mold making plaster into the latex molds and in two days, I had 5 working molds for a mug! A few of the mold pieces had gotten warped, but a master mold maker friend soaked them in water with the rubber bands on tight, and was able to fix them so no clay slip leaked out anymore!
_________________
 Live like a Beachcomber! www.TikiTony.com www.facebook.com/tikitonybeachcomber
|
MadDogMike
Grand Member (3 years)
Joined: Mar 30, 2008
Posts: 6412
From: The Anvil of the Sun
| Posted: 2008-06-26 9:35 pm Permalink
Babalu, if you run off and leave your thread unprotected, there's no telling WHO might post here

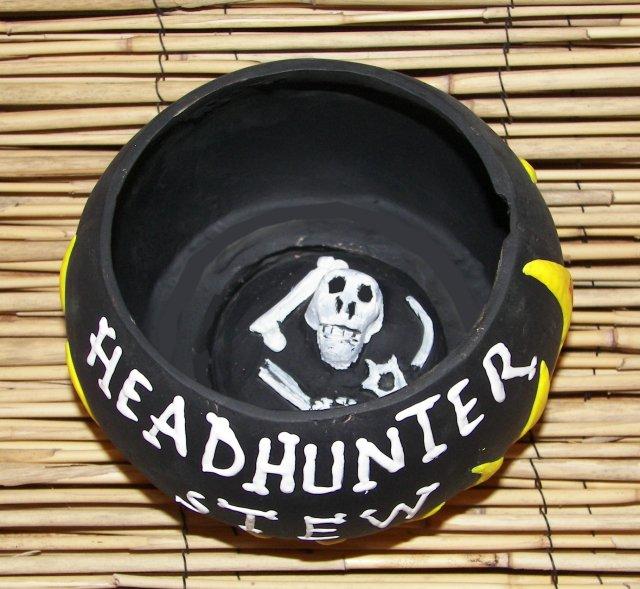

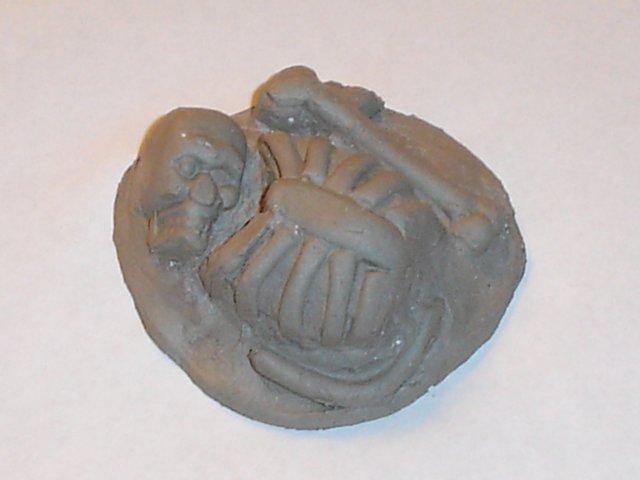

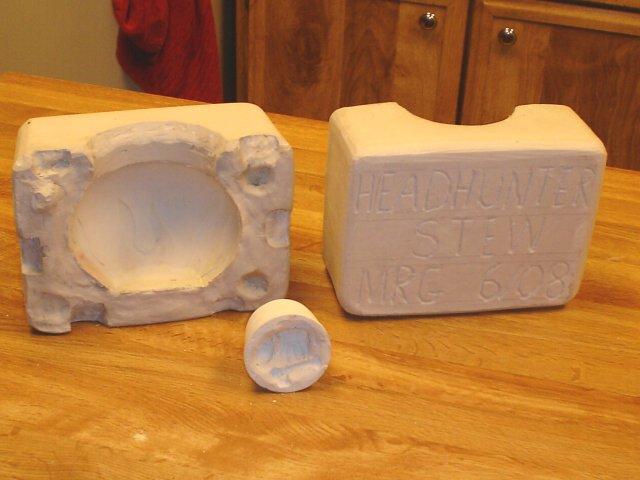

I made the mold for Headhunter Stew. It LOOKS much better than my first mold, let's see how it casts. The little round piece in the foreground is a pushmold for the "bonepile" in the bottom of the mug.

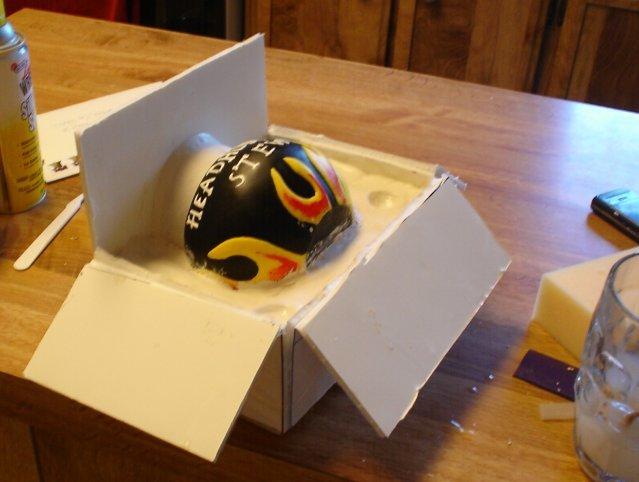

Last time I had trouble working with the clay at the separation line because it was down inside the mold box and I couldn't get to it very well. This time I tried something new. I made the mold box out of foam-core board. I scored the sides and folded them down so I could work the clay. When I was done I folded them back up, sealed the corners with clay, taped the heck out it and poured in the plaster. Seems to have worked well
I'm out of slip, will pick up some next week and see what happens.
_________________
Clay, the oldest and most divine art media;
"And now, from the clay of the ground, the Lord God formed man" Genesis 2:7
Pirate Ship Tree House
|
Babalu
Grand Member (5 years)
Joined: Nov 19, 2006
Posts: 2498
From: Lemon Grove
| Posted: 2008-06-27 07:21 am Permalink
Tiki Tony - Wow, we are honored that you jumped in...Thanks so much for describing how you created multiple molds from one master. It's a great thing for folks to be able to see how others have problem solved these processes too. One really needs multiple molds if they are planning on making a large run of mugs...it's just to time consuming with just one mold. And thanks for commenting on Cammo's Oki Doki design too...I can see why you like that one; I think that you and Cammo have some things in common...You both have this wonderful since of whimsy in your works that I really enjoy. I can't wait to see what you bring to Oasis this year! I still need to add a Tiki Tony mug to my little, but growing, collection of mugs.
Mad Doggie, Your just on fire brother! Have you tried to pull a casting yet from your bowl, or are you totally out of slip? It looks like you are planning on having the bottom of your bowl to be flat, which is fine, you just won't be able to glaze the bottom unless you use stilts to fire the mugs on. Are you going to glaze fire the bone pile into place at the bottom of the mug? Be sure to look for undercuts on that bone pile before pouring your mold. I guess I will see you over here on the 3rd...you'll have some mugs to glaze up
|
MadDogMike
Grand Member (3 years)
Joined: Mar 30, 2008
Posts: 6412
From: The Anvil of the Sun
| Posted: 2008-06-27 6:14 pm Permalink
I didn't understand why TikiTony was making multiple molds of the same mug but didn't want to open my mouth and show my ignorance. Now I understand.
I could ask this question in person, but maybe someone else wants to know... how does not glazing the bottom of the mug affect things? Yes I think I'll glaze fire the bone pile in place. I had first thought I would add it to the bottom when the mug was fresh out of the mold to make it all one piece. But it would be difficult to glaze the individual bones white down in the bottom of the mug. Bubalu, I will call you this evening
_________________
Clay, the oldest and most divine art media;
"And now, from the clay of the ground, the Lord God formed man" Genesis 2:7
Pirate Ship Tree House
|
cheekytiki
Tiki Socialite
Joined: Mar 09, 2004
Posts: 1088
From: The Haole Hut, London, UK
| Posted: 2008-06-27 11:40 pm Permalink
If you glaze the bottom of the mug the glaze will fuze to the Kiln shelf and you will end up in a big mess and possibly having to replace the shelf.
_________________
www.cheekytiki.com
http://cheekytikiuk.blogspot.com/
"Don't drink water, fish f*~k in it" W.C. Feilds
|
MadDogMike
Grand Member (3 years)
Joined: Mar 30, 2008
Posts: 6412
From: The Anvil of the Sun
| Posted: 2008-06-28 09:21 am Permalink
At least your mug wouldn't tip over with the kiln shelf glaze fused to the bottom of it
What I meant was, what are the ramifications of not glazing the bottom of the mug?
_________________
Clay, the oldest and most divine art media;
"And now, from the clay of the ground, the Lord God formed man" Genesis 2:7
Pirate Ship Tree House
|
Bowana
Grand Member (4 years)
Joined: Nov 10, 2006
Posts: 1117
From: La Mesa, CA
| Posted: 2008-06-28 09:39 am Permalink
Quote:
|
On 2008-06-26 21:35, MadDogMike wrote:
|
|
Well done, MadDog!
_________________
That's my story and I'm sticking to it.
|
MadDogMike
Grand Member (3 years)
Joined: Mar 30, 2008
Posts: 6412
From: The Anvil of the Sun
| Posted: 2008-06-28 2:38 pm Permalink
Thank you Bowana
|
MadDogMike
Grand Member (3 years)
Joined: Mar 30, 2008
Posts: 6412
From: The Anvil of the Sun
| Posted: 2008-07-12 1:17 pm Permalink
I have stood on the shoulders of giants and created my own Tiki Mug! Thank you HMC for a thread about a year ago that peaked my interest. Thank you Bowana and Babalu for this thread. Thank you so much Babalu for all your help and time in your studio.
My mug is kinda flat and 2D but it matches my first tiki (which is also kinda flat and 2D). My plan was to make a "mascot mug" ala Mr Bali Hai. Of course, it doesn't hold a candle to some of the mugs I've seen posted here, but it's my first mug and I'm not ashamed of it

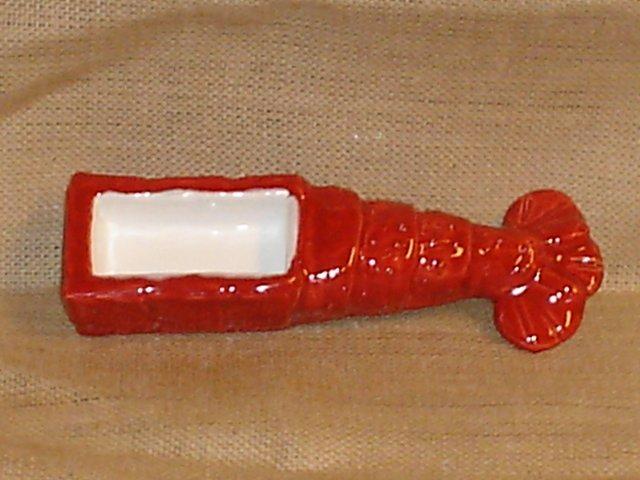

I accidentally got opaque glaze so all my wood grain texture got buried and doesn't show up, one of the many lessons I learned. I bought a small kiln, Babalu says I'm hooked. I also glazed a couple of "faux lobster tails" yeaterday. My daughter and I are deathly allegic to lobster, so we'll eat monkfish from these dishes and pretend it's lobster.
I'm bisque firing today, some "Headhunter Stew" mugs and I got 2 or 3 mugs floating around my brain right now. I think I'll have fun with this for a long time
Again, thanks to everyone for your help and input.
_________________
Clay, the oldest and most divine art media;
"And now, from the clay of the ground, the Lord God formed man" Genesis 2:7
Pirate Ship Tree House
|
