|  Posted: 2009-08-02 12:50 pm Permalink
I did another smaller one last week. It's 12" tall and 7" in diameter. I'll put my post from my carving thread here so that in the future people can find as much info as possible on these in one spot.
Quote:
|
On 2009-08-02 12:35, Bay Park Buzzy wrote:
I came indoors a couple days ago to do most of the work on the little pahu
After I did all 32 cut outs, i started to hollow it out. I started on the top:
Then after I get to a depth of at least half way in the log, I turn it over and make another hole to try and meet it. For this I use the 1" 90 degree parting tool.

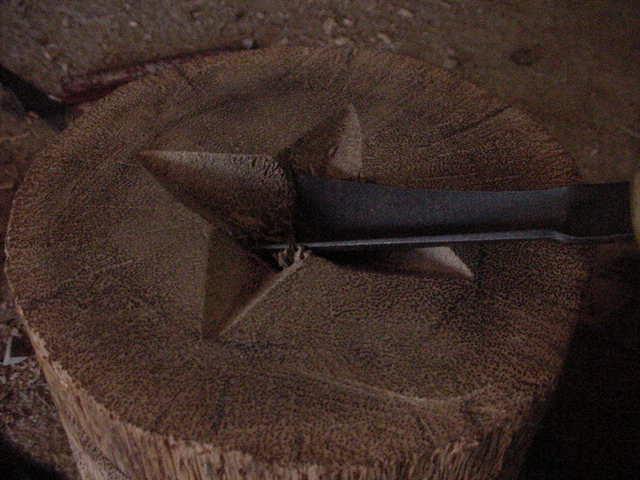

It gets softer the closer to the center and the deeper you go. Now I'm a little more than 1" deep with only 4 small cuts.

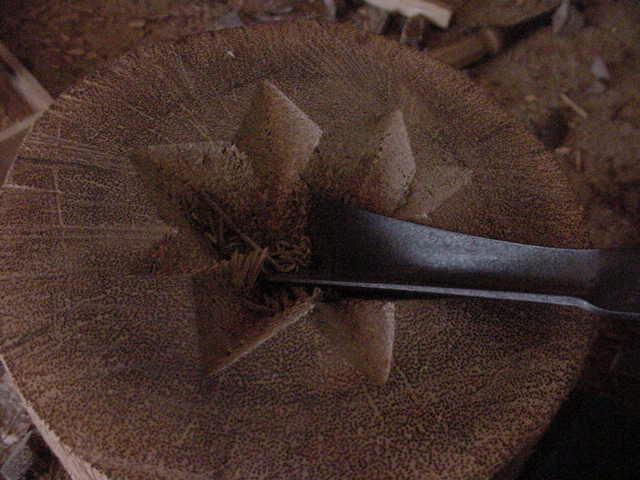

A second pass bisecting the first cuts I made and I'm 2.5 -3" in already in just a couple minutes.
A few more cuts like that with the same tool and I'm in 4-5" wiith just a couple more to go

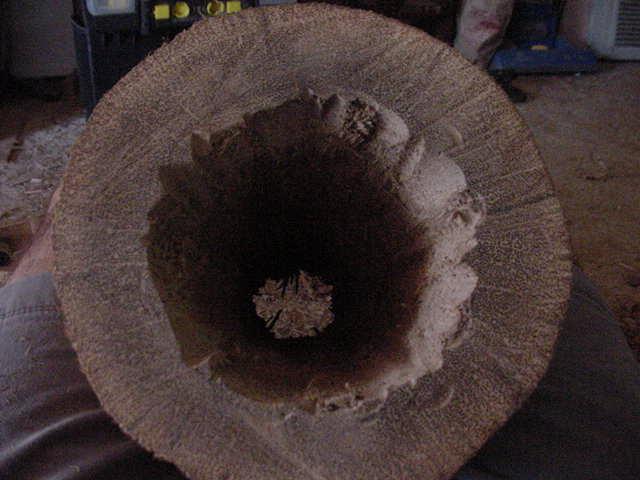

Then I smooth out the sides with a suitable gouge and try to make room for another star pattern cut in the deepest center

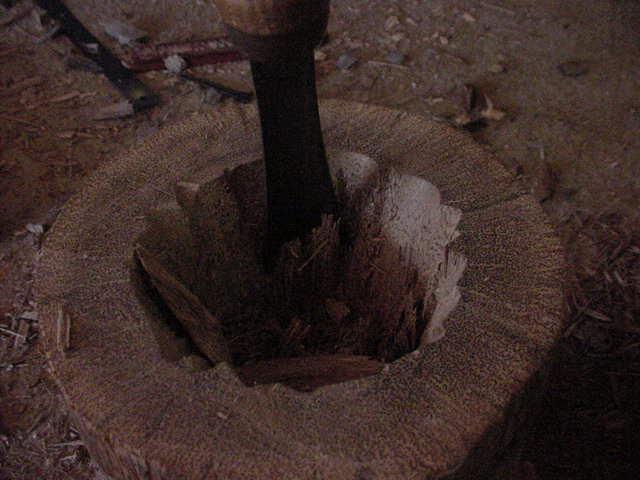

About two inches more and I break through to the other hole.

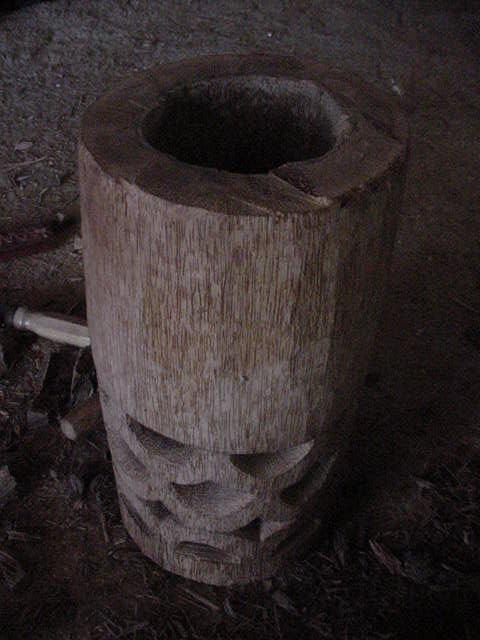

Now it gets real easy to finish the hollowing

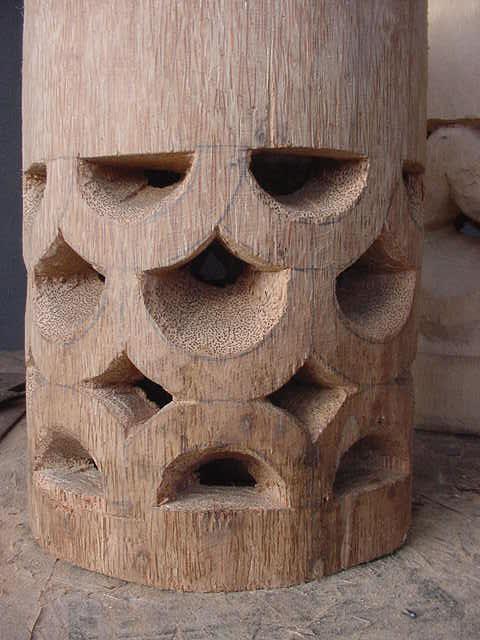

I made the cut outs deeper than needed so when I hollowed it they would open up
The source I used for this one left the bottom portion like this, but I'm going to fancy it up a bit like the bigger one

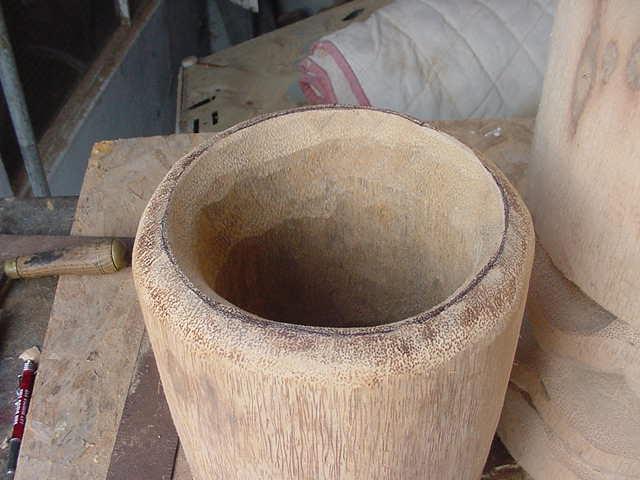

I did the rim next:

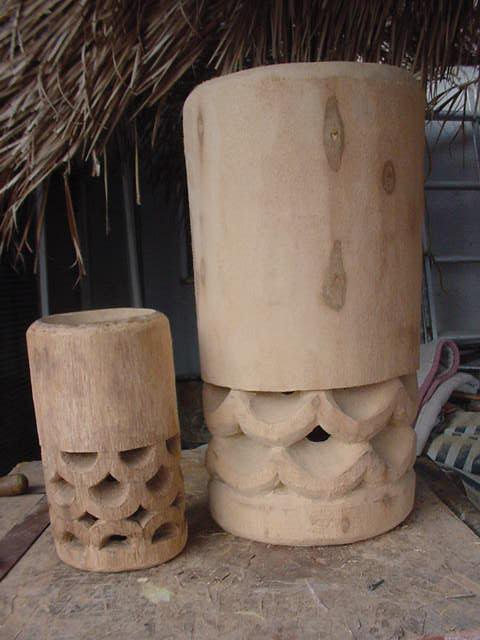

And here it is next to the bigger one
I was looking at some of these for sale lately on line and holy s#!^ they're a lot of money!
|
|
Buzzy Out!
_________________

|
Clarita
Tiki Socialite
Joined: Sep 26, 2006
Posts: 1234
From: BA Arg
| Posted: 2009-08-08 1:24 pm Permalink
Great clips, fun and interesting, what the hell they guy say at the end of each chapter? I still can't get it. ..... shut up or something like that...
I'm amazed how fast buzzy can work, very nice drums!
_________________
mundotiki
|
Bay Park Buzzy
Tiki Socialite
Joined: Apr 07, 2006
Posts: 2714
From: West Bay Park, San Diego, CA
| Posted: 2009-08-19 11:53 am Permalink

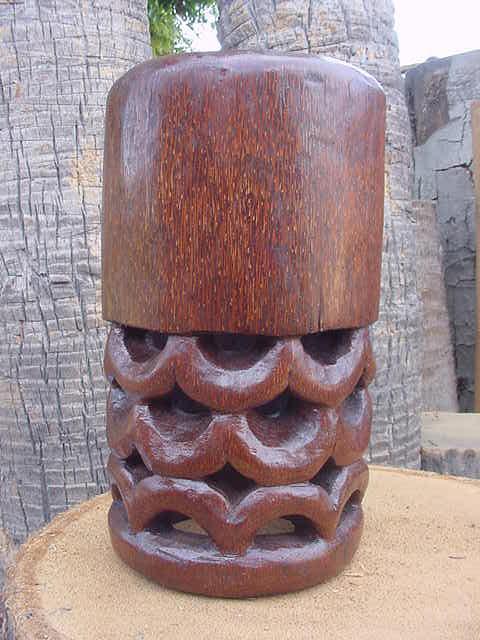

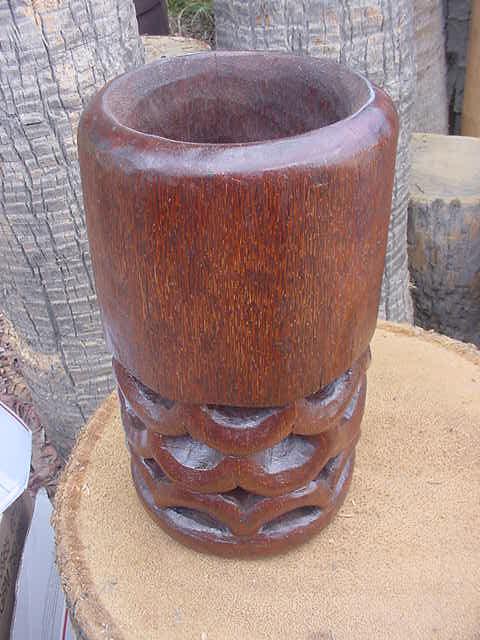

My litle Pahu drum is all sanded and finished up:
I left the tool marks on the pedestal part and smoothed the bell part as much as I could:

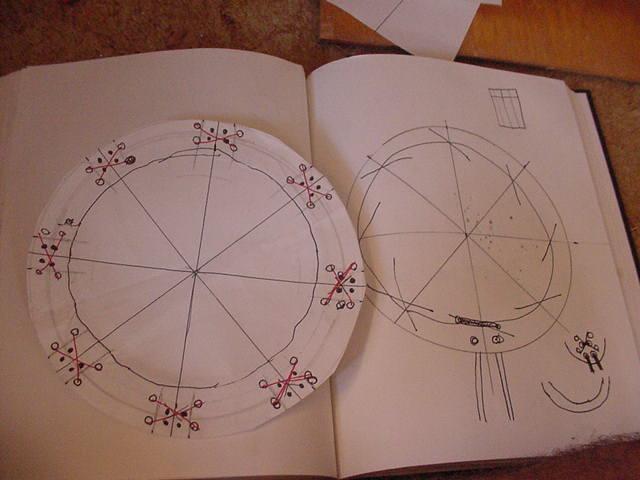

Now it's time for the head. I wanted a reinforced edge because I'm using a thin piece of goat. I had to figure a way to attach the head without ripping it under the tension. I did some figuring on paper and then made a template:

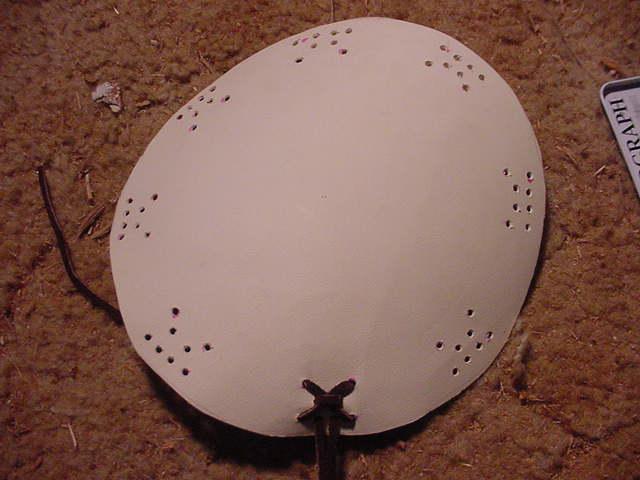

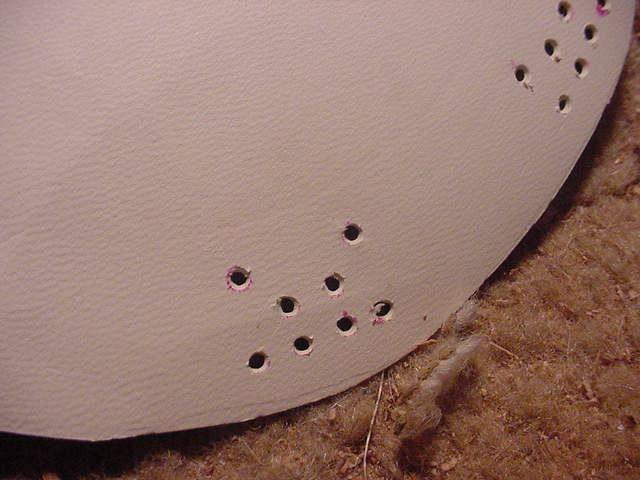

This is the piece after punching in the holes:
Hole pattern:

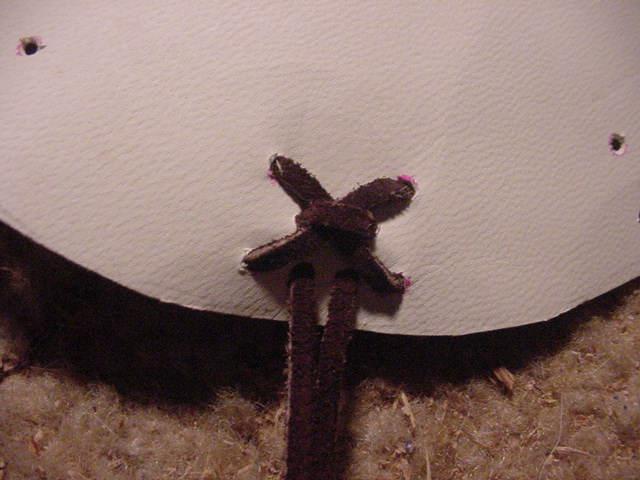

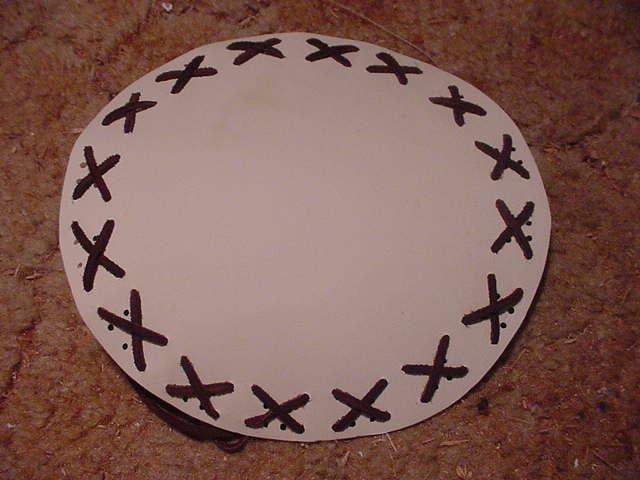

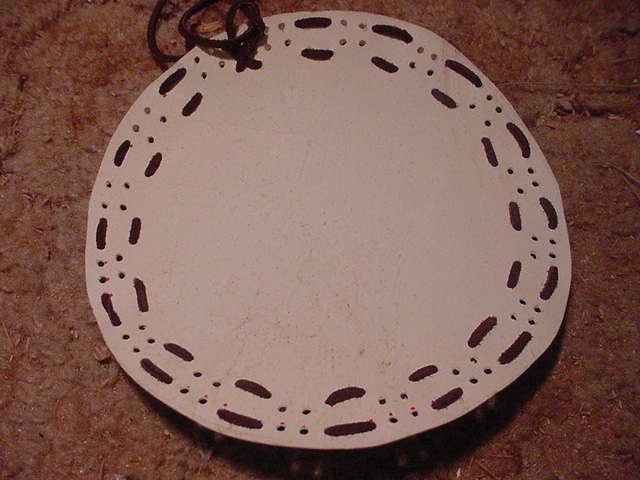

Here's a test I did to make sure the holes were aligned correctly

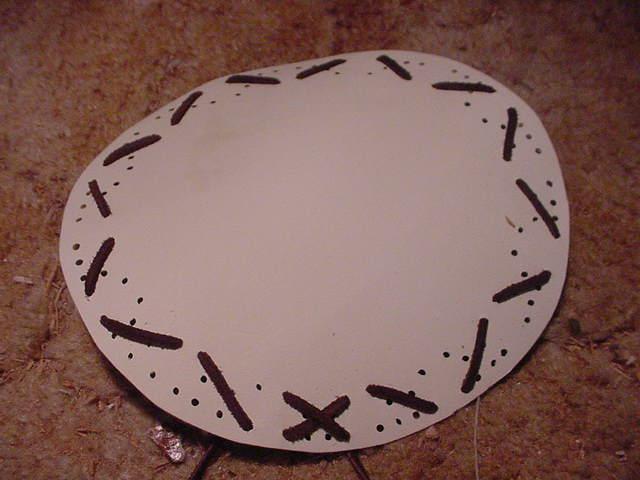

After this, I put it on the drum and decided that I needed to double up on the lashing attachment points.

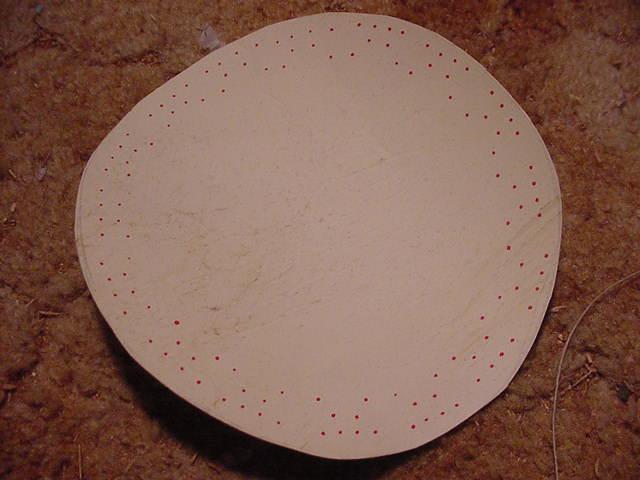

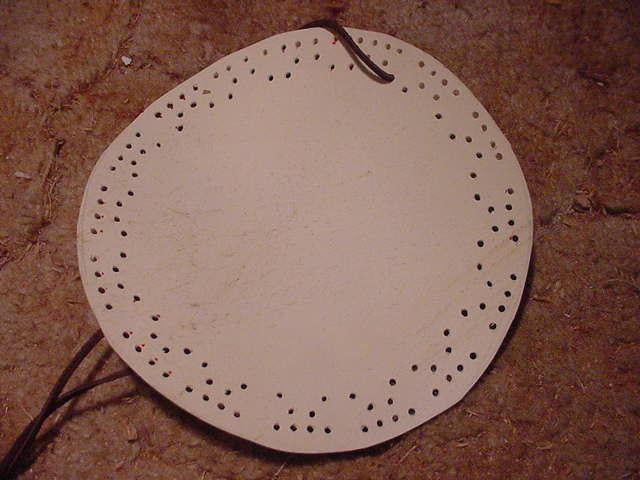

I cut another piece of goat and redid the layout with more holes:
After cutting a bunch of holes, I was ready to start the weave:
Half way through.
The length of the string you need to use just over twice the circumference of the head

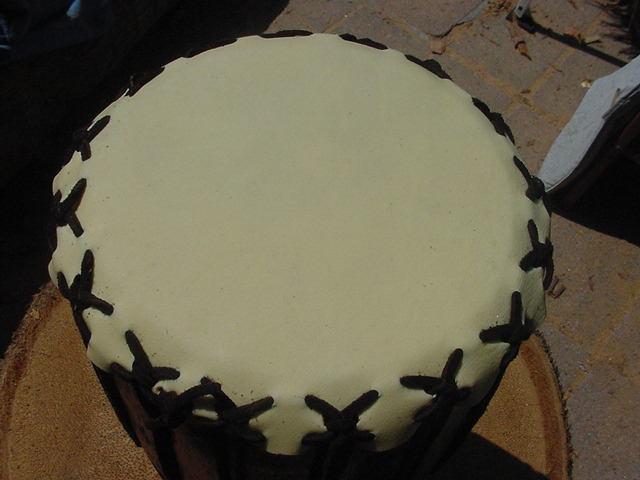

Topside when done:

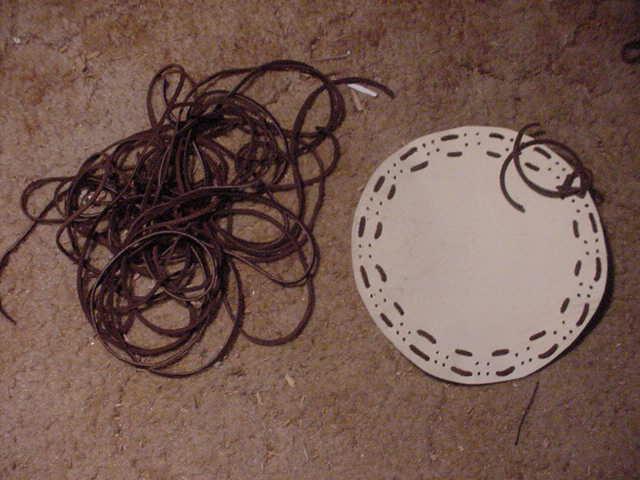

Bottom when done:
Next I measured and cut the 8 pieces that I will use to attach the head to the drum:

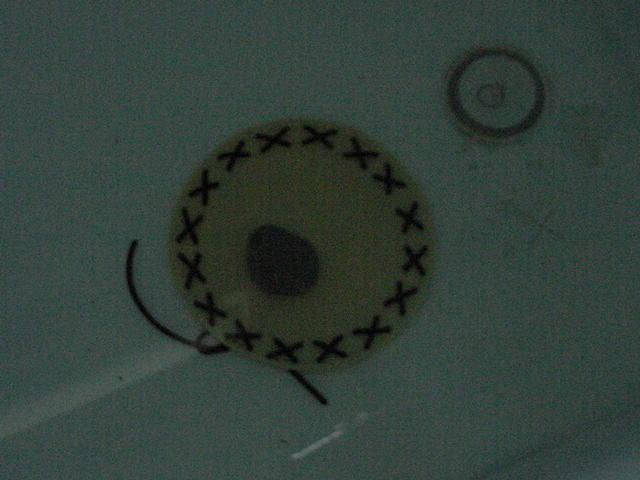

The head's been soaking for a couple hours and is just about ready to be stuck on.
Buzzy out!
_________________
|
MadDogMike
Grand Member (3 years)
Joined: Mar 30, 2008
Posts: 6398
From: The Anvil of the Sun
| Posted: 2009-08-19 2:13 pm Permalink
Looks beautiful, but how's it gonna sound? Can you make an MP3 recording and embed it here?
_________________
Clay, the oldest and most divine art media;
"And now, from the clay of the ground, the Lord God formed man" Genesis 2:7
Pirate Ship Tree House
|
Bay Park Buzzy
Tiki Socialite
Joined: Apr 07, 2006
Posts: 2714
From: West Bay Park, San Diego, CA
| Posted: 2009-08-19 2:44 pm Permalink

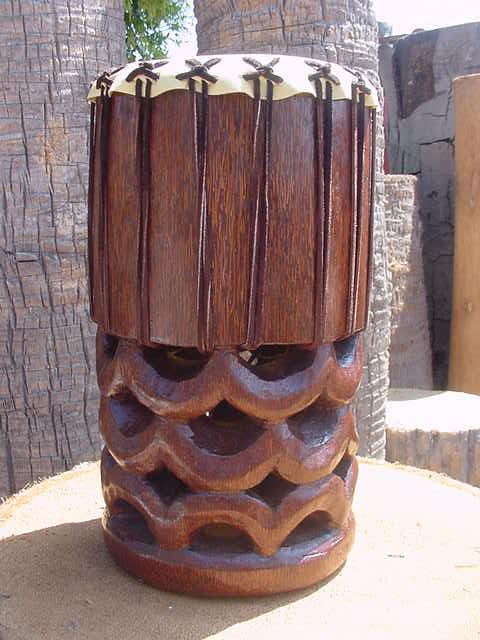

It's all done!:
Quote:
|
On 2009-08-19 14:13, MadDogMike wrote:
Looks beautiful, but how's it gonna sound? |
|
It's still wet right now. I will not know for a few hours. It already sounds decent, but it will become much better sounding as it tightens.
I can record it. But, all I need is a microphone, a sound recorder, and some means to convert and download the file to post it here.
Buzzy Out!
_________________
|
Benzart
Tiki Socialite
Joined: Jan 09, 2004
Posts: 10306
From: Port Saint Lucie, Florida
| Posted: 2009-08-20 05:31 am Permalink
Awesome Stuff Buzzy, your drums are ALL really beautiful.
|
TheBigT
Tiki Socialite
Joined: Feb 27, 2006
Posts: 1155
From: Fabulous Houston
| Posted: 2009-08-20 09:17 am Permalink
Quote:
|
On 2009-08-19 14:44, Bay Park Buzzy wrote:
I can record it. But, all I need is a microphone, a sound recorder, and some means to convert and download the file to post it here.
Buzzy Out!
|
|
Great job on the lashing. Looks too complicated for my mind.  If you have a mic for your notebook or pc, you can download Audacity from audacity.sourceforge.net. It will record from your mic and let you save as mp3. All for free!
|
Bay Park Buzzy
Tiki Socialite
Joined: Apr 07, 2006
Posts: 2714
From: West Bay Park, San Diego, CA
| Posted: 2009-08-20 12:38 pm Permalink
Quote:
|
On 2009-08-20 09:17, TheBigT wrote:
Great job on the lashing. Looks too complicated for my mind.
|
|
It's going to take a big leap up in complications right here...
The head just wasn't tight enough after it shrunk up. I think the leather cords might have stretched a bit too. To fix this, I could either redo it with a different type of cord, leave it, or turn it into a tunable drum.
I chose to take the tunable drum path, just to see if my plans and calculations would actually work.
To increase the tension on the head, I needed to stretch the cords more. I took the right cord of one attach point and pulled it to the left cord of the attach point next to it. I went all the way around the drum like this
To increase the tension more, I did another wrap to make the new triangles half the size they were:

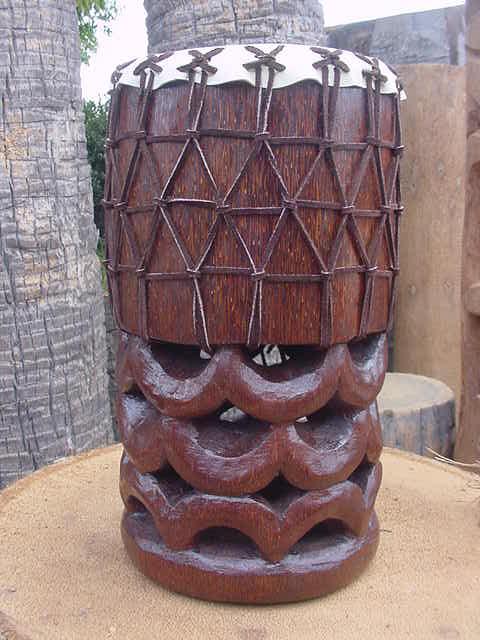

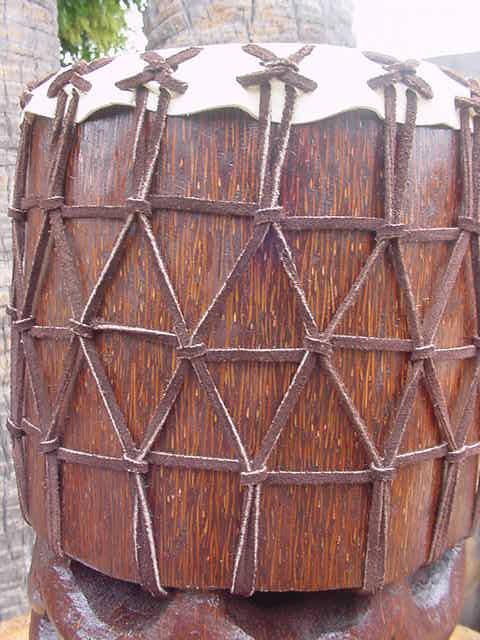

Here is what you end up with: A very complicated looking lash job with a very tight head

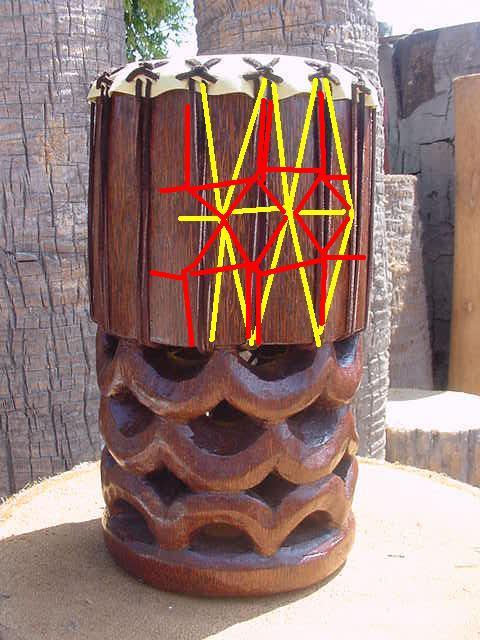

The best part is that you can now tune it. You just slide the bands in the direction of the arrows and as the triangle gets smaller, the tension increases, tightening the head:
It worked great. I still want to change the cord type. Something that has no give at all is necessary.
Buzzy Out!
_________________
|
TheBigT
Tiki Socialite
Joined: Feb 27, 2006
Posts: 1155
From: Fabulous Houston
| Posted: 2009-08-21 07:32 am Permalink
Whoa, that's a trip. Looks really cool I must say.
|
Beachbumz
Grand Member (first year)
Joined: Jan 09, 2008
Posts: 991
From: 21°/156° MAUI
| Posted: 2009-08-21 6:37 pm Permalink
DAm Buzzy, you make it look all to easy... That drum is beautiful,nice work!
I really need to get of my okole and find some coco logs...
|
