Tiki Central Forums Creating Tiki Tiki Carving Protecting outdoor tikis from theft (or just falling over). The how-to thread.
Protecting outdoor tikis from theft (or just falling over). The how-to thread.
8FT Tiki
Tiki Socialite

Joined: Nov 30, 2003
Posts: 1225
From: Kansas City, MO
Posted: 2009-07-28 4:20 pm   Permalink

There have been a couple of older threads that touched on these issues. I will include a link to them below.

But let's face it, this is a serious topic for anyone who has decided to, or may be considering putting a tiki outdoors. It can't be guarded 24/7 by even the most attentive owner so some sort of stabilization is necessary. I have used the following method for 2 carvings and both are solidly in place with no problems. Perhaps this will give someone else a few ideas to employ and if you have installed tikis outdoors and can add photos and tips to this thread, PLEASE DO!

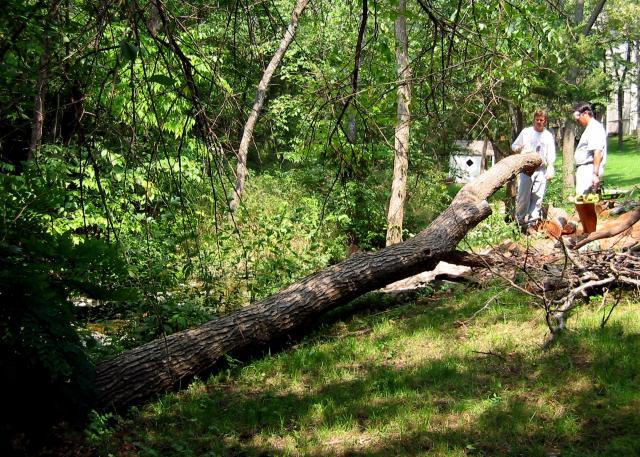

I had the opportunity to get a couple of nice sized logs from a family member who had this big walnut tree fall in his yard. All I had to do was help him cut it up. HAHA I really tricked him!

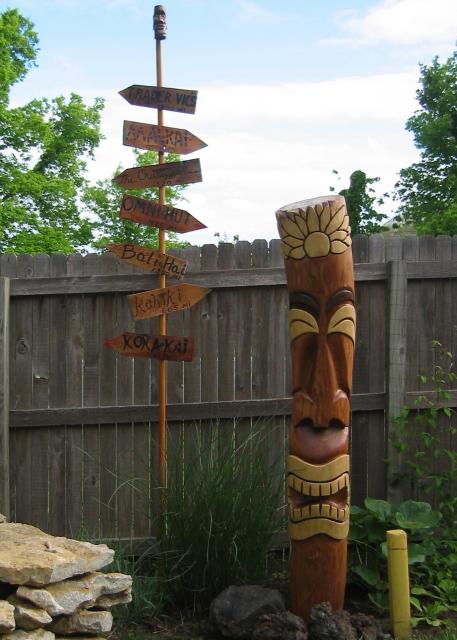

The first completed carving has been outside for over 2 years now. It is just under 6 FT tall.

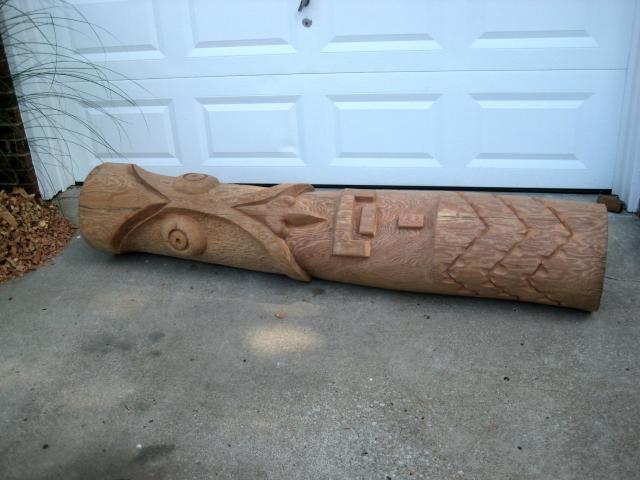

Here is the second carving just finished this past weekend.
Weighing in at almost 500 pounds!

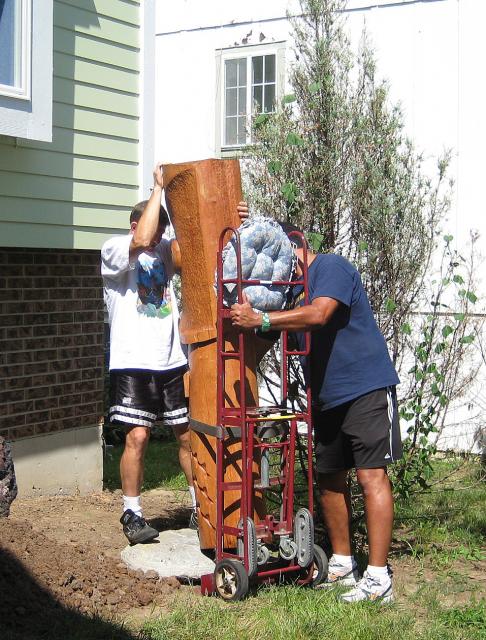

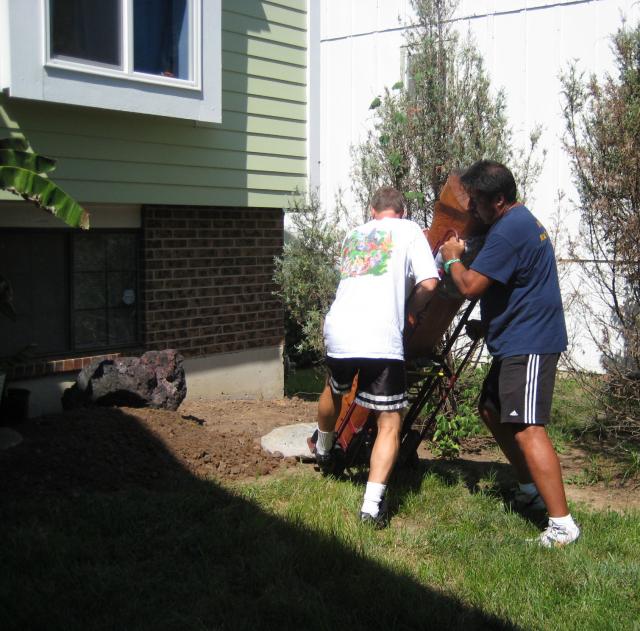

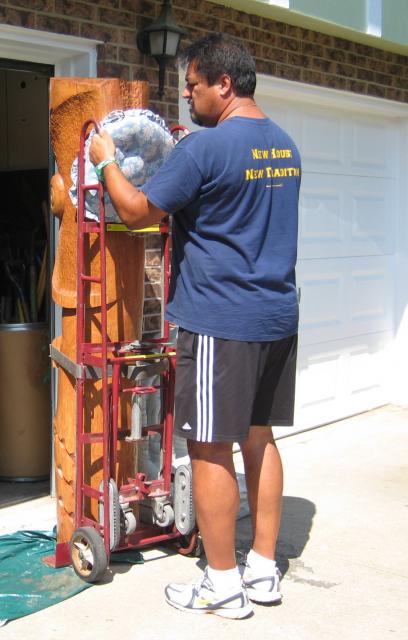

First you get a really big person (with a furniture dolly) to come over and help you. That is if the tiki weighs more than you can handle safely yourself.

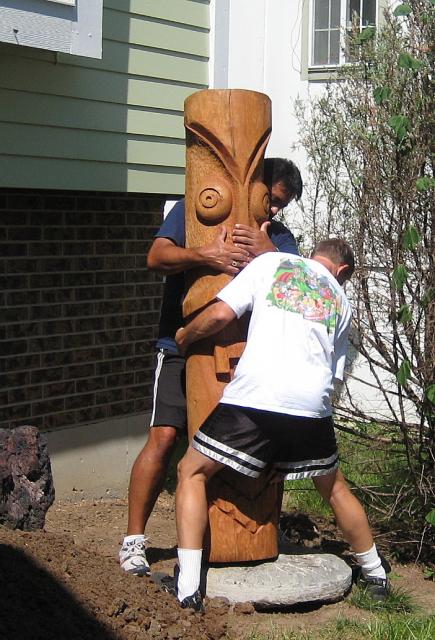

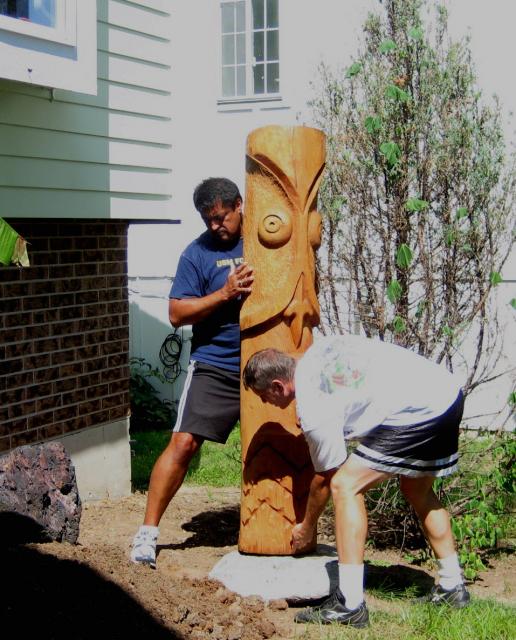

Then set it on a firm surface that will protect it from sinking into the ground. I am using a really heavy stone that I got from a highway constuction zone. The interstate was being widened and they had to do core drillings for the placement of new highway signs. They extracted dark gray limestone which is very dense and it was in a circular shape perfect for this use. You could also use flat patio blocks if the weight of the tiki isn't an issue. Those can be found at almost any store with a garden center.

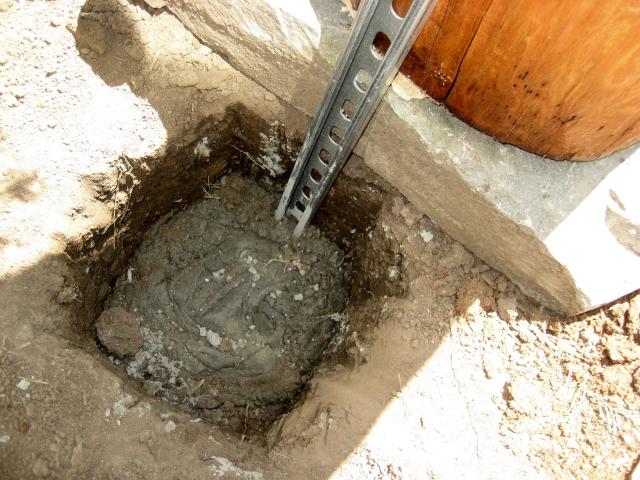

Prior to moving the tiki I had dug a 2 foot deep hole immediately behind the stone. After the tiki was in place on the stone, I added cement in the hole and inserted a strong metal support bar that you can get at Lowe's or Home Depot. It is slotted which allows you to secure the tiki by bolting through the metal bar and into the wood.

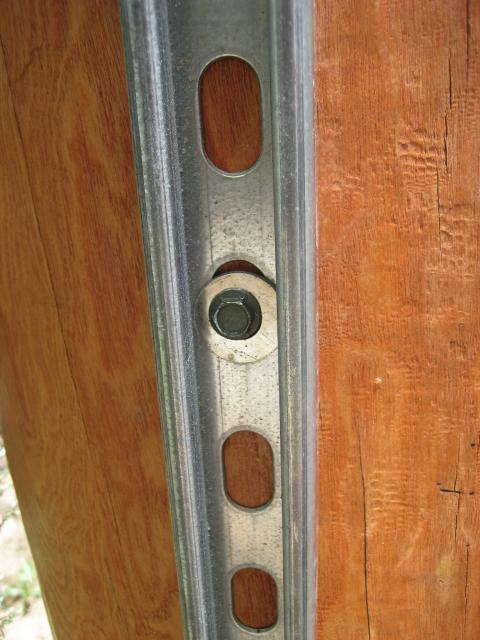

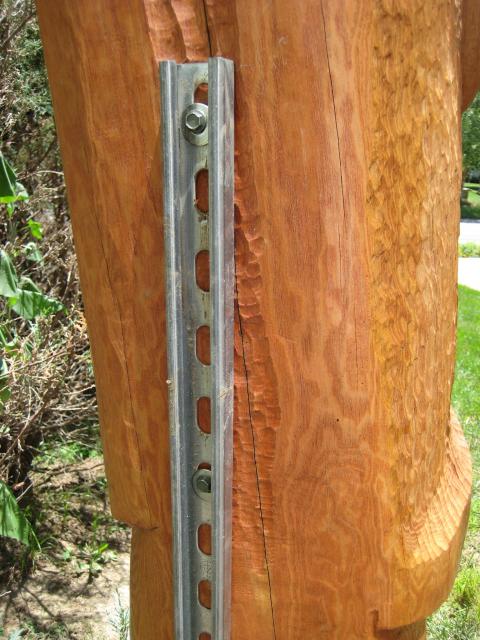

Here's a closer look at how I secured the tiki using 2 inch long 3/8" bolts and washers. I used 6 for this carving.





I don't worry about the theives now and I am sure the tikis won't fall over on their own. This method worked for me because I did not care about the metal rod being visible on the back side. I could paint them brown but neither of the tikis are in places where there will be people walking behind them.

Hope this is helpful, here's the links I mentioned above:
Good Luck, 8FT Tiki

http://www.tikiroom.com/tikicentral/bb/viewtopic.php?topic=11846&forum=7&hilite=securing tiki

http://www.tikiroom.com/tikicentral/bb/viewtopic.php?topic=7924&forum=7&hilite=planting seven





_________________
I once was lost............but now I'm found

[ This Message was edited by: 8FT Tiki 2009-07-28 16:22 ]


 View Profile of 8FT Tiki Send a personal message to 8FT Tiki  Email 8FT Tiki     Edit/Delete This Post Reply with quote
drasticwagon
Tiki Socialite

Joined: Dec 27, 2008
Posts: 263
From: DFW , Texas
Posted: 2009-07-28 5:39 pm   Permalink

I like the lean on the 1st guy and the 2nd guy you say is walnut? What a nice piece of wood!


View Profile of drasticwagon Send a personal message to drasticwagon  Goto the website of drasticwagon     Edit/Delete This Post Reply with quote
Aaron's Akua
Tiki Socialite

Joined: Jul 09, 2004
Posts: 1594
From: Rancho Santa Margarita, CA
Posted: 2009-07-28 8:57 pm   Permalink

8FT Paul - great topic, thanks for sharing! Lots of good ideas between these threads. Ben's idea of a completely concealed pole is the cleanest, but for me the plate & lag screw method seems the easiest which usually suits me best. Either way would work well to discourage thievery, or at the very least prevent my kid or one of the neighbors' from being squashed flat by way of falling tiki.

Nice walnut tikis, BTW.
_________________

"Ah, good taste! What a dreadful thing! Taste is the enemy of creativeness."
-Pablo Picasso



View Profile of Aaron's Akua Send a personal message to Aaron's Akua      Edit/Delete This Post Reply with quote
Swanky
Tiki Socialite

Joined: Apr 03, 2002
Posts: 5038
From: Hapa Haole Hideaway, TN
Posted: 2009-07-29 09:27 am   Permalink

The bear and indian carver here in the mountains adds something you might want to consider. The reason wood carvings rot is that water can't evaporate, which is due to no air circulation. When this guy installs his big carvings, he rests them on 1 or so inch plumbing pipes. That gives a littel room for air flow under the wood, and a very minimum amount of touching of wood to anything where water will collect and rot.

I have wondered about putting them on a raised grating of some sort as well to prevent rot.

The one vintage piece I have has 3 holes from a plate that was lag bolted on it and probably connected to a cable.



View Profile of Swanky Send a personal message to Swanky  Email Swanky Goto the website of Swanky     Edit/Delete This Post Reply with quote
SilverLine
Tiki Socialite

Joined: Mar 02, 2004
Posts: 631
From: Kansas City
Posted: 2009-07-29 09:50 am   Permalink

I like the plumbing pipe idea. Simple, cheap and effective. When I set mine outside I just put it on a brick smaller than the base of the log so that water would flow off and not under it. So far so good.

This is a great topic as I plan to set out a larger carving at our lake house, where NOBODY is around to guard it for long periods of time. I've thought about footer plates sunk into concrete that bolt into the wood. 8ft's idea is better because it give better support.

BTW 8ft, that tiki is AWSOME! it looks much better standing up than it did laying down! We'll never accidently drive past your house again!
_________________

Classic Silver Line Boats

 View Profile of SilverLine Send a personal message to SilverLine  Goto the website of SilverLine     Edit/Delete This Post Reply with quote
Tikilizard
Tiki Socialite

Joined: Aug 19, 2006
Posts: 373
Posted: 2009-07-29 10:57 am   Permalink

If you didn't want something as large or distracting you could always use re-bar and a C clamp at the base. Cemented of course. Nice tiki!
_________________

Facebook

 View Profile of Tikilizard Send a personal message to Tikilizard  Email Tikilizard Goto the website of Tikilizard     Edit/Delete This Post Reply with quote
hewey
Tiki Socialite

Joined: Sep 14, 2004
Posts: 4278
From: Sydney, Australia
Posted: 2009-07-30 8:15 pm   Permalink

Great thread 8ft!

I looked at this when a mate was talking about getting a large tiki carving. Our idea was to carve a recess into the back of the tiki for the metal bar, so it would sit flush with the surface of the tiki, and paint it to match the wood colour, so visually it would pretty much dissapear. All depends on your location and how many people will see the back I suppose.

_________________
www.kustomkultureaustralia.com

 View Profile of hewey Send a personal message to hewey  Email hewey     Edit/Delete This Post Reply with quote
8FT Tiki
Tiki Socialite

Joined: Nov 30, 2003
Posts: 1225
From: Kansas City, MO
Posted: 2009-08-02 10:50 am   Permalink

Some good ideas have been added, Thanks & keep 'em coming.

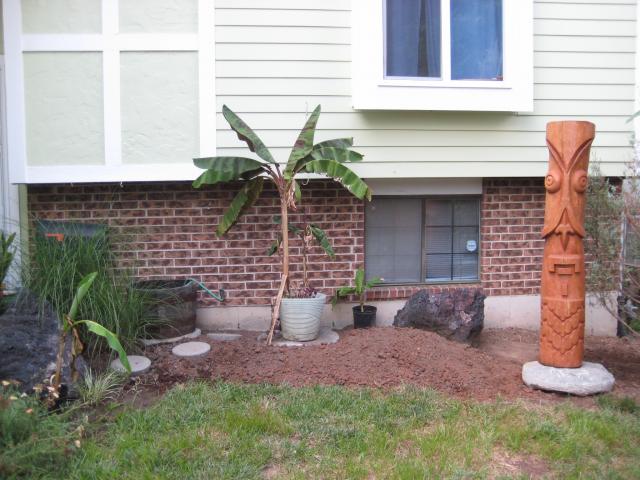

I may be using the re-bar idea on my next one. I have been saving a really, really thick piece of rebar for such a thing and the carving I am working on now is definitely going to need a strong support. I will probably use much longer bolts on it because the wood is much softer than the walnut one I showed above. Oh, I forgot that I hadn't put in a finished installation picture. Here it is. When completed, the area you see will have the other tiki installed and will be planted with palms and lots of other tropicals etc., and then a post and rope fence in front. As soon as the next carving is complete, the rest goes in fast! Can't wait.



Later, 8FT
_________________
I once was lost.....but now I'm found.....



View Profile of 8FT Tiki Send a personal message to 8FT Tiki  Email 8FT Tiki     Edit/Delete This Post Reply with quote
Tikilizard
Tiki Socialite

Joined: Aug 19, 2006
Posts: 373
Posted: 2009-08-02 11:29 am   Permalink

Looks really nice. Can't wait to see the finished project.
