First Mug First Mold Progress: THE MOLD IS DONE!!!!
Tiki Tonie
Tiki Centralite

Joined: Jun 07, 2011
Posts: 52
Posted: 2012-02-24 09:06 am   Permalink

Hi Everyone,

I'm going to post photos from the very beginning in case there are any other newbies out there.

Thanks Again!
Tiki Tonie


Supplies, this is a modified list I got from KoKoKele. See his post below for a great link to a tutorial. I've added some notes and some other items for folks like me, that have never ever done this before. I hope it's helpful:

Make sure you've built or acquired a mold form of the appropriate size.

In addition to everything below you'll need clear, fresh water.

Remember not to dump plaster down the drain! If you do you'll no longer have a drain!

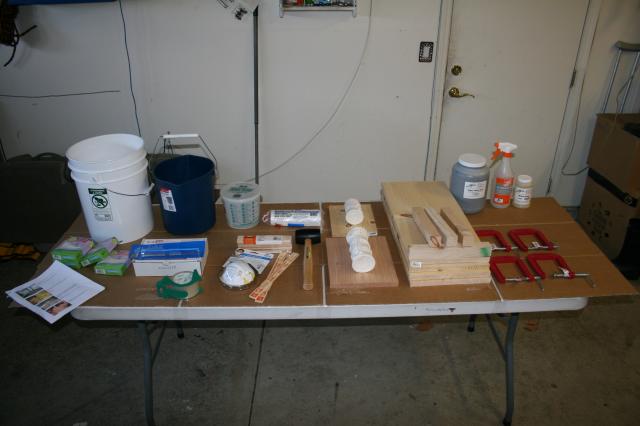

You'll need:

1. Safety equipment! A dust mask for sure, rubber gloves if you're concerned about the effects of plaster on skin!
2. Drop cloths as needed
3. Paper towels or shop towels as needed
4. Clay-Soft, oil-based clay – My ceramics shop did not carry oil based clay regularly, you have to order it ahead of time. I know, right? Who’d a thunk it.
5. Filler - you can use wood strips or some other material to act as filler so you don't have to use as much clay
6. A variety of tools to help you smooth the clay and get into corners and crevices
7. Stir sticks or a cage mixer and drill motor or your hand (that worked for me)
8. Pottery plaster (ceramics shop have the perfect type; plaster of paris also works)- Buy a lot. It's cheap.
9. A couple of plastic scoops for getting plaster from the bag to the containers.
10. A kitchen-type scale for weighing your materials. You can use a fairly cheap one, but make sure you can "tare" it (set it to zero when something is sitting on it).
11. Several lightweight plastic containers for holding plaster and water when you measure them. Half-gallon or gallon should be fine. – I had a big 5 Gallon bucket filled with water which made it really easy to clean my hand off quickly so I could pour the plaster. I was also able to clean out my smaller bucket so I can use it again
12. A few cheap paint brushes (I use the throw-away types)
13. Orange shellac (optional) – I didn’t use this, but what do I know.
14. Spray bottle for mold soap (optional)
15. Mold soap (found at ceramics shops; I believe you can use other media also) – you spray the mold soap on and wipe it off. A wise lady (Wendy) told me to do this 3 times and I did. Note – during this process I noticed a change I needed to make on my mold and started working on that before I wiped off. Do not do that. What happens is the mold soap starts to take on the consistency of soap scum and can thicken in your crevasses…(I’m not going to say it) so be sure to wipe right off, let it sit, repeat 2 more times.
16. A clean, good-sized plastic bucket (one gallon minimum? I use larger, 5 gallon)
17. A wooden wedge to help part your finished mold parts
18. A rubber mallet for gently whacking your wooden wedge
19. 4 Planks – 10” to 12” x 2’ (I’m using the 12”…That’s what she said, I had to, sorry)
20. 4 wood blocks – 1”x1” usually come in 4' long pieces which is perfect for the plank
21. 4 clamps – Make sure you get the deeper ones that will clamp towards the middle of the board
22. Base board – I got my board from the trash (over by the wood cutting area) at Home Depot, they gave them to me.
23. 2” Nails - check that you have them, thought I did, ended up making another store run
24. Strap – I’m going to use Bungee Cords

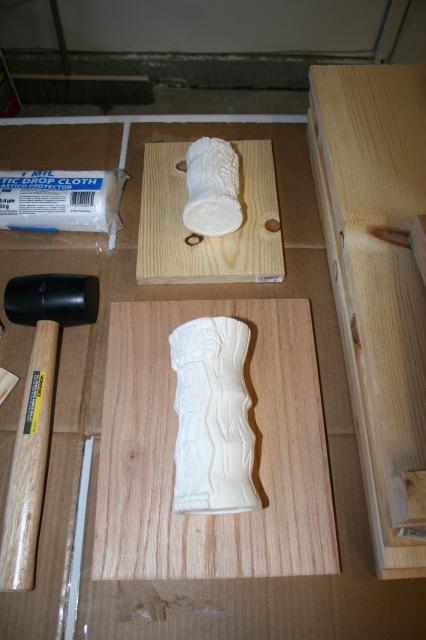

Bottom boards for each mold

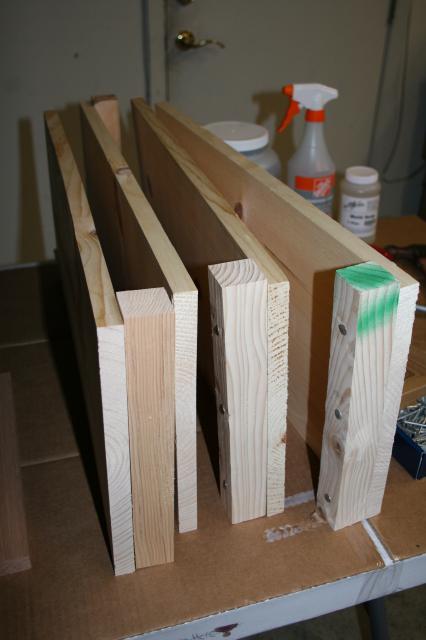

Frame Walls

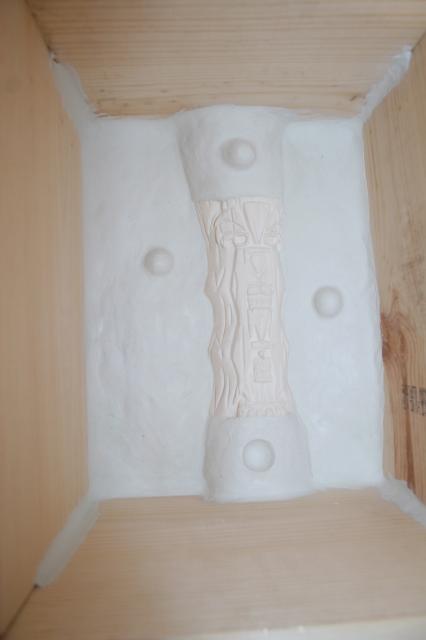

Putting the frame together. Mistake #1 Did not order the Oil based clay so had to use some kids non hardening stuff that was really hard to work with

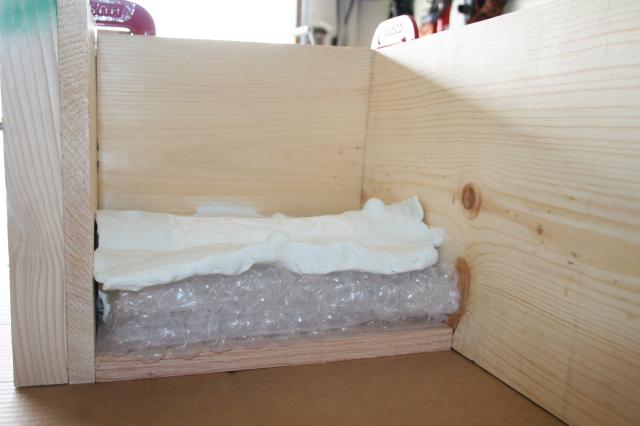

Mistake #2 Because the clay was hard to work with, didn't level it out very well. I'll pay for this later, you'll see

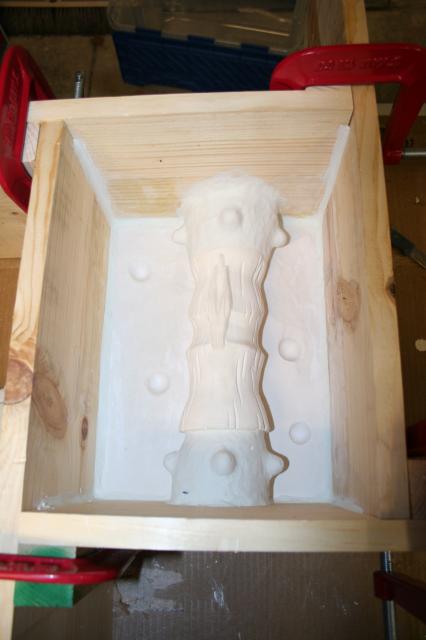

All Framed up. Have to say, pretty proud of myself with buying wood and nailing it together. Speaking of nails, Mistake # 3 Thought for sure we had nails already. No we didn't. You need 2" nails so I had to go back to the store.

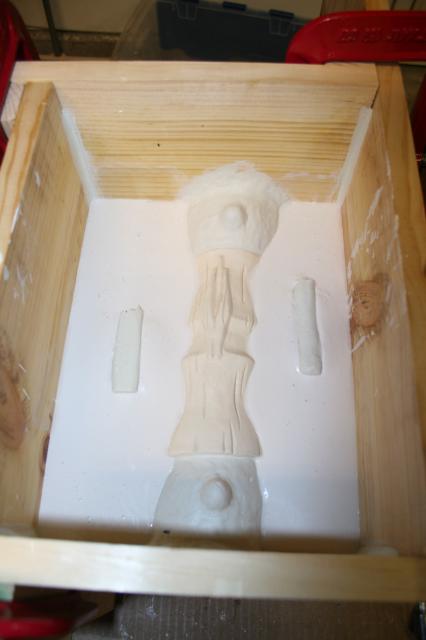

Filled in the cracks almost ready to Mold Soap

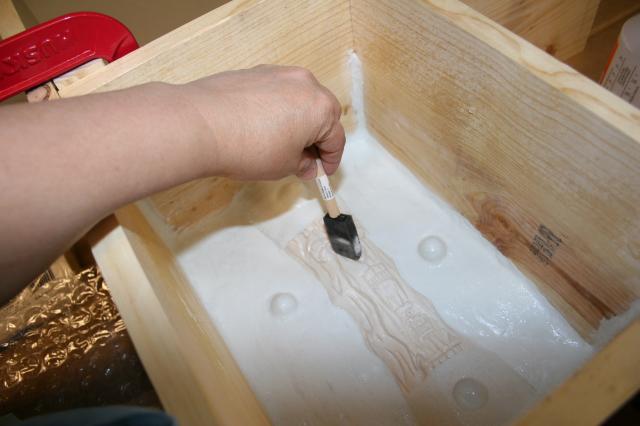

Mold Soap - Wipe on, Whip off, Wipe on, Wipe off Wipe on, Wipe off or do it 3 time including the walls

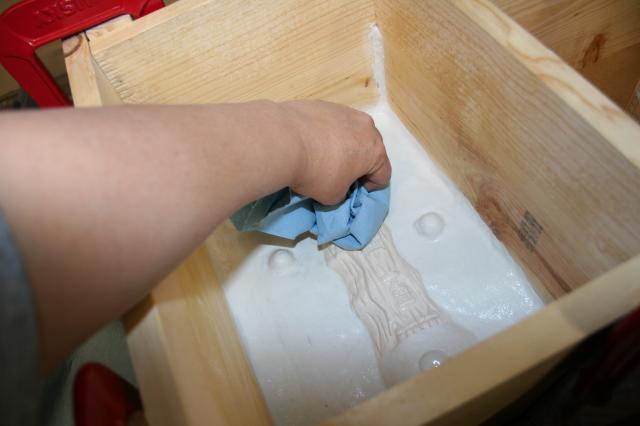

Wipe off


What's this you say, well it Mistake #4 Made the pour hole over the lip of the Mug. Had to fix the top and Mold Soap 3 times on the new spot


Ok, I think we're ready for plaster, but before we pour I have a Mistake #5 Used the blue bucket to mix my plaster, but didn't follow KoKoKele's advice and measure it all out so I filled the bucket about 3/4ths the way and of course as I was adding the plaster, it was getting ready to overflow. I has to take out some of the water, what a mess. Note to self: Do the Math!

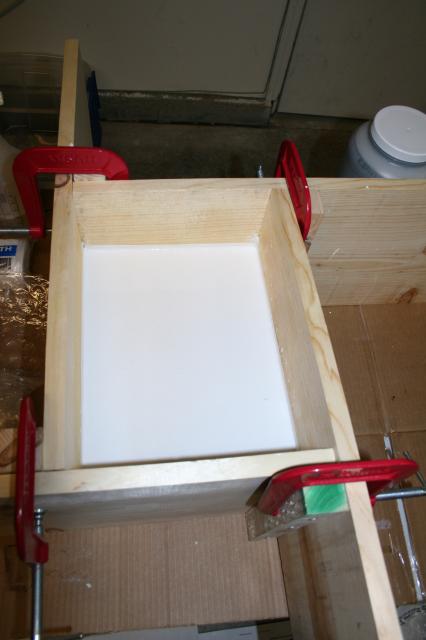

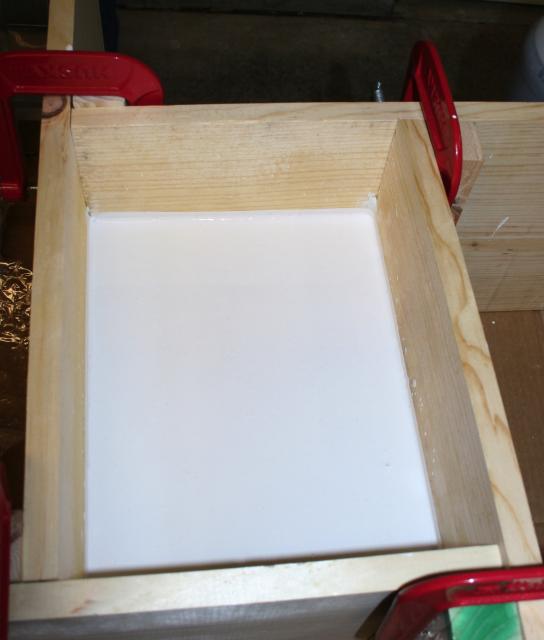

Yay! No leaks!

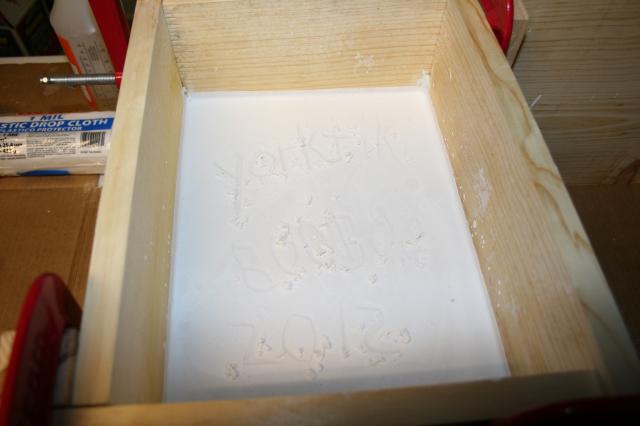

And I remembered to carve in the name of the mold before it got too hard

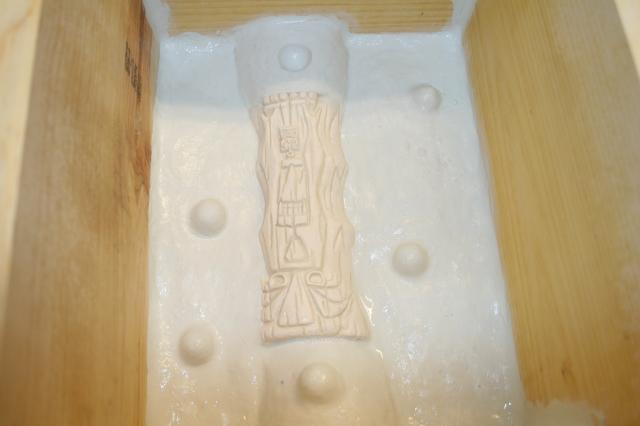

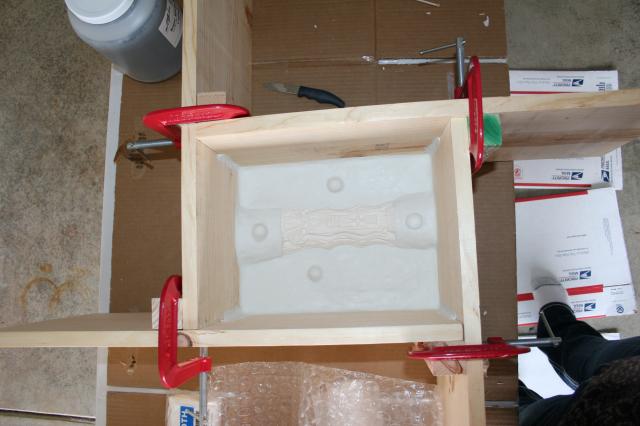

Looks like a mold so far

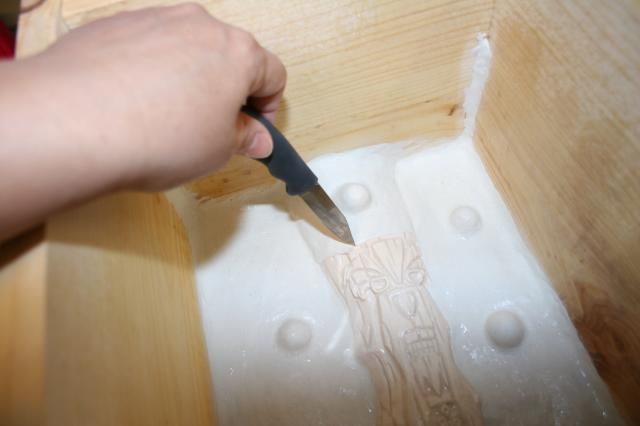

Oopsey, Mistake # 6 I had to carve this section down because it was raised over the under section there. I have a feeling this is going to give me problems later. Also, it looks like this is going to be a 5 piece mold because of the under cutting


All ready for tomorrow. Hopefully I'll finish and will post the rest of the story.

**************************Update 02//27/12*****************************************************************************

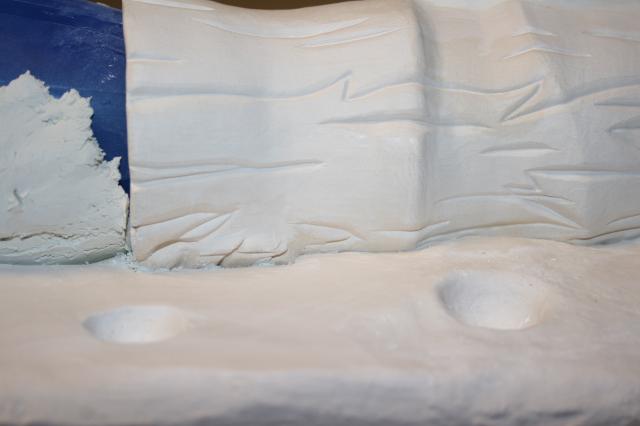

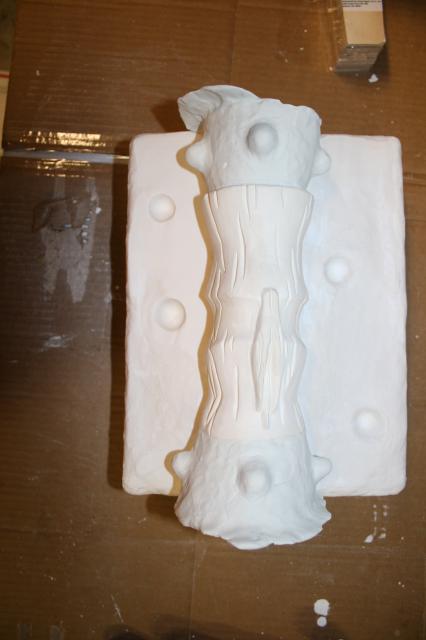

I did a lot better on the back than the front. I have that undercutting dilemma so I decided I'd better make side sections too.

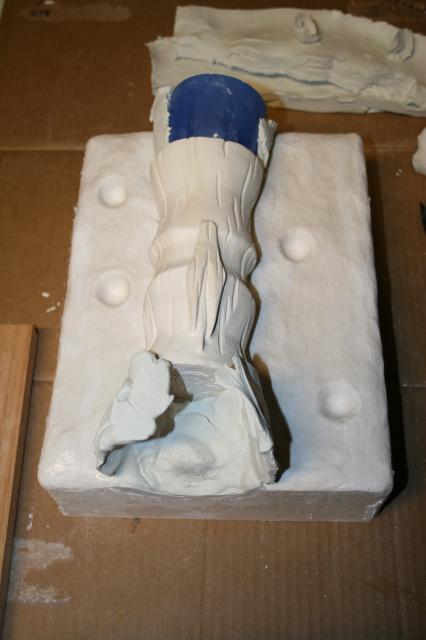

I really wasn't sure how to make the side sections so I thought i would just fill each side, but then how would I make locks?

**********!!!!!!! PLEASE SEE WENDY'S INSTRUCTIONS ON MAKIN THE SIDE SECTIONS, MUCH MORE EFFICIENT!!!!!!**************

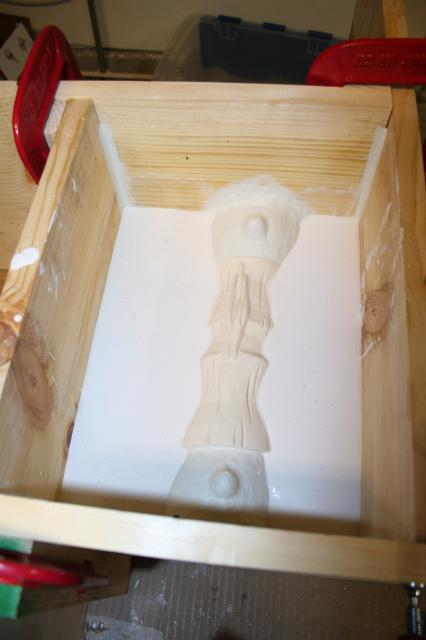

I came up with a plan to let the plaster set just long enough to insert these clay locks on top. I mold soaped them 3 times and hoped for the best


I'm sure there is a much easier way to do this, but I very carefully used a cup to gently pour the plaster in each side of the mug. There's got to be a more efficient way. So far so good though

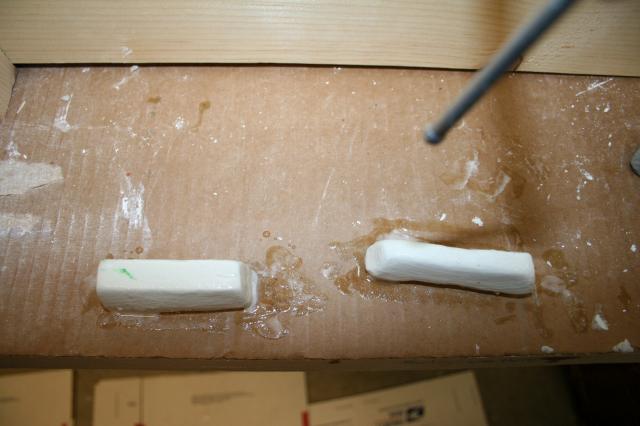

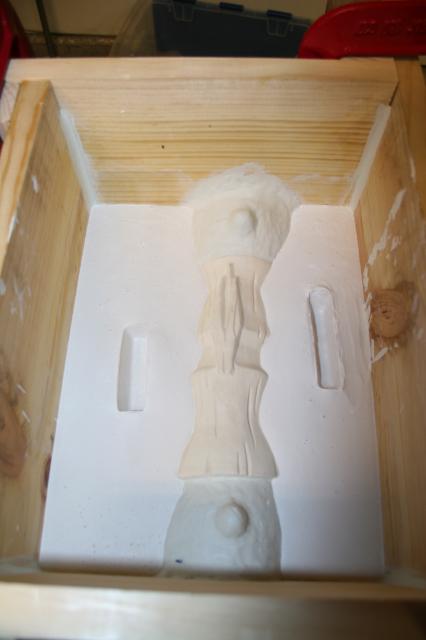

I gently inserted my clay lock pieces.


I can't believe it worked!!!!!

Stay tuned, Making the last 2 pieces tomorrow.

******************************UPDATE 02/29/12***********************************************
************************************************************************************************

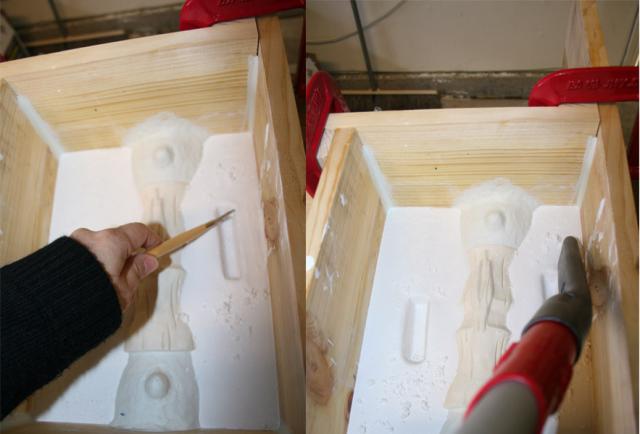

Needed to clean up the locks a little. Used a vacuum to get the dust and pieces out.

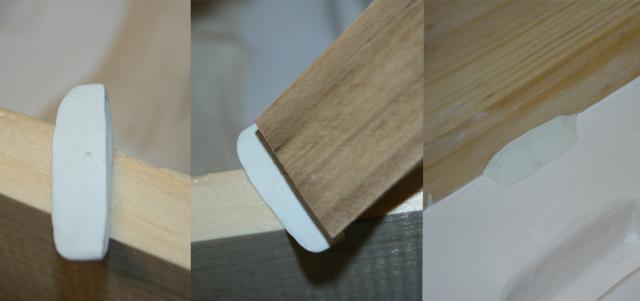

I forgot to mention that you need to make little openings on the outside of your mold between pieces where you can insert your shim (that's what...never-mind).


You know the drill, mold soap 3 times and pour the back side. OK, I forgot to take a picture of the back after I poured , but it looks just like this except filled higher in the frame.


Ok, one last piece to make!

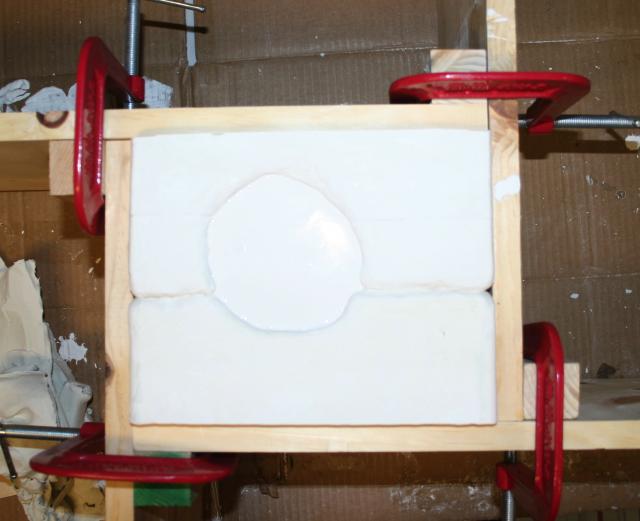

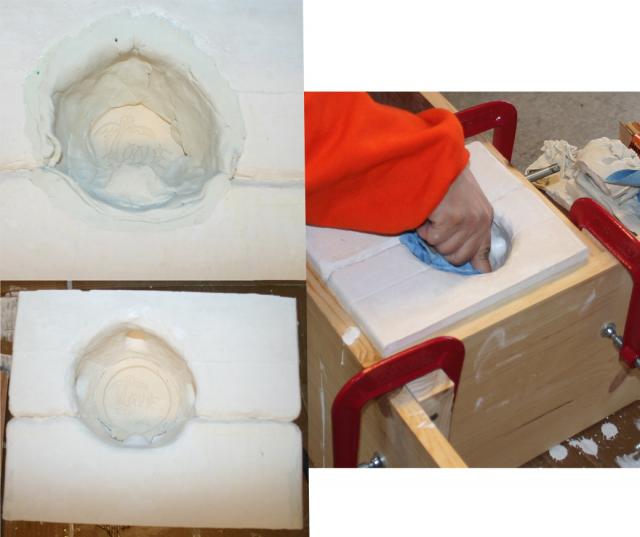

Now you have to make the bottom piece. I don't think I mentioned that you need to make it separately because of the undercut.
Don't forget to Mold Soap!


The nice thing about watching plaster dry is it doesn't' take very long

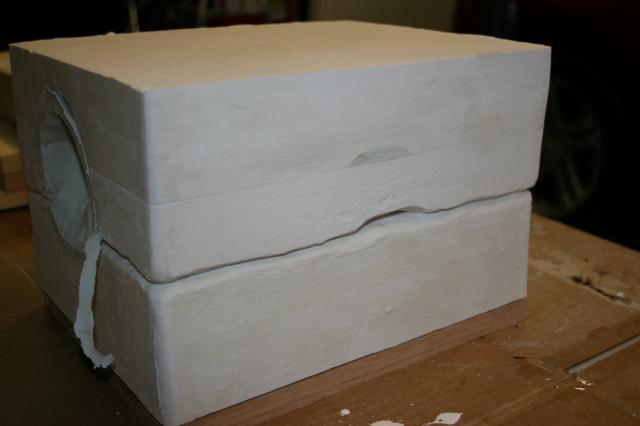

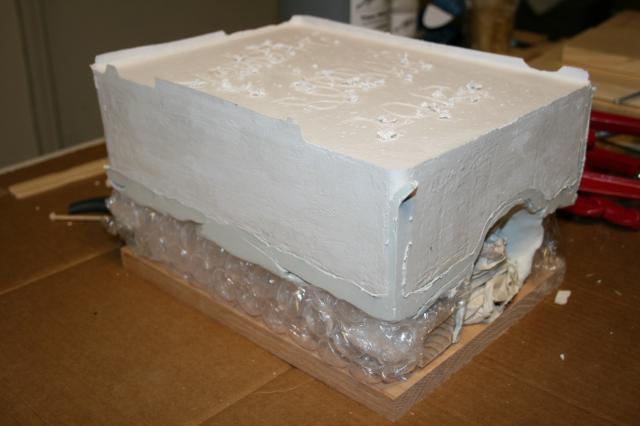

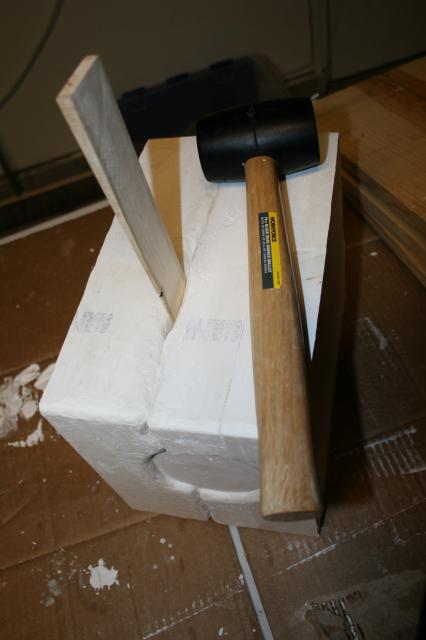

And the moment of truth...

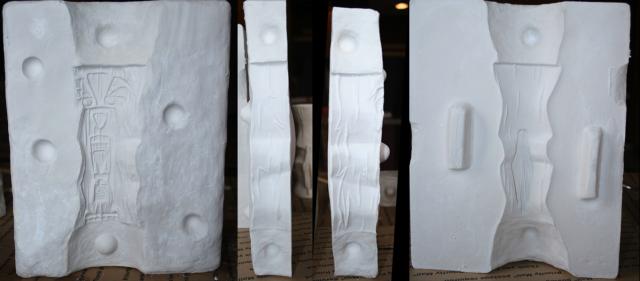

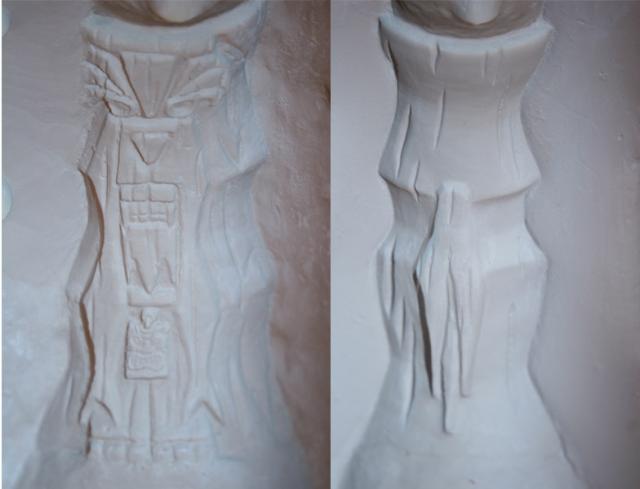

"Voila" I have a mold! And Boo Boo survived too! That undercut I was worried about, well it broke off, but Wendy says you can re-sculpt that when you make the mug so I think it will be ok.

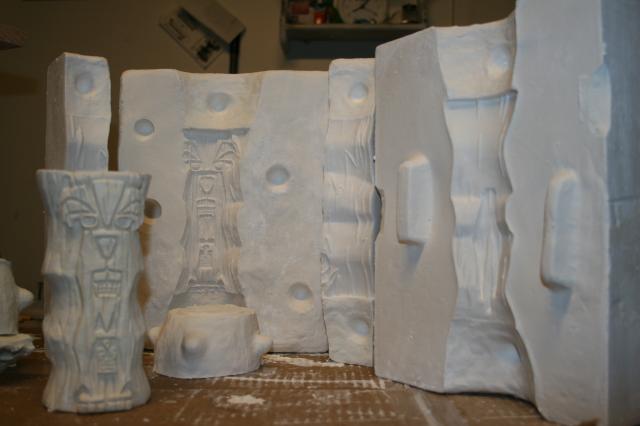

Just another shot of the sections of the mold

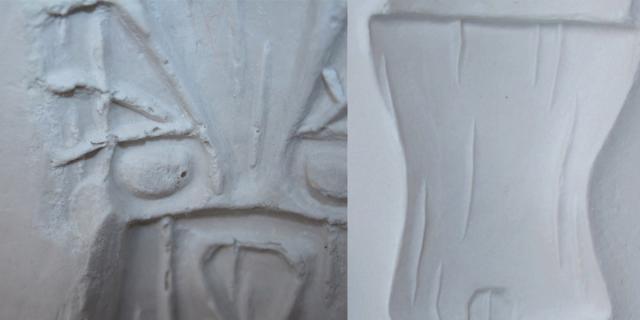

I was actually very disappointed with how the front came out. If I have any advice to give, it's make a practice mold first. From the first pour to the last pour, I learned so much and got a little better each time. You'll see a drastic difference in the close up below.


The first section, I was not letting the mold soap dry long enough between applications. I also didn't wipe it off well enough either. You can see the soap residue still on the plaster. When you mold soap something it bubbles up, which is good for getting into the small details, but if you have to wipe that stuff off so it's smooth. On the back side I waited between applications, wiped well and got my nail (indirectly through the towel) in the cracks to get the excess soap out. Big difference.

So I was kind of sad, thinking I would have to have a do-over. That is until...


I was taking some close up shots and thought my camera was broken. I would take a picture and look and it was just the last pic I took of the original mug. Tried several more times, then took a picture of the back and found that an optical illusion was happening! The pics above are actually close ups of the molds. Because you can't see the frame, it creates the illusion that it a convex image when it's actually concave! The awesome news is, I can see how the mug will come out using the mold without actually pouring the slip. And it looks pretty good! A little rough, but I can fix that with a little elbow grease.

I'm going to go back and watch my plaster dry out enough to pour the slip now. What do you think, 3-4 days?

Again, any advice is good advice!



[ This Message was edited by: Tiki Tonie 2012-02-27 01:05 ]

[ This Message was edited by: Tiki Tonie 2012-02-27 09:29 ]

[ This Message was edited by: Tiki Tonie 2012-02-27 09:54 ]

[ This Message was edited by: Tiki Tonie 2012-02-27 23:01 ]

[ This Message was edited by: Tiki Tonie 2012-02-29 12:46 ]



View Profile of Tiki Tonie Send a personal message to Tiki Tonie  Email Tiki Tonie     Edit/Delete This Post Reply with quote
KokoKele
Tiki Centralite

Joined: Feb 08, 2012
Posts: 70
Posted: 2012-02-24 12:06 pm   Permalink

Good luck with the mold!

First step is to review this valuable tutorial:

Tutorial

Make sure you've built or acquired a mold form of the appropriate size. The one shown in the tutorial will work great.

I'm listing equipment and materials only. Refer to the tutorial above for handy hints and expert guidance. I'm not that good at this but have done it a few times.

In addition to everything below you'll need clear, fresh water.

Remember not to dump plaster down the drain! If you do you'll no longer have a drain!

You'll need:

Safety equipment! A dust mask for sure, rubber gloves if you're concerned about the effects of plaster on skin!

Drop cloths as needed

Paper towels or shop towels as needed

Clay-Soft, oil-based clay

Filler - you can use wood strips or some other material to act as filler so you don't have to use as much clay

A variety of tools to help you smooth the clay and get into corners and crevices

Stir sticks or a cage mixer and drill motor

Pottery plaster (ceramics shop have the perfect type; plaster of paris also works)- Buy a lot. It's cheap.

A couple of plastic scoops for getting plaster from the bag to the containers.

A kitchen-type scale for weighing your materials. You can use a fairly cheap one, but make sure you can "tare" it (set it to zero when something is sitting on it).

Several lightweight plastic containters for holding plaster and water when you measure them. Half-gallon or gallon should be fine.

A few cheap paint brushes (I use the throw-away types)

Orange shellac (optional)

Spray bottle for mold soap (optional)

Mold soap (found at ceramics shops; I believe you can use other media also)

A clean, good-sized plastic bucket (one gallon minimum? I use larger)

A wooden wedge to help part your finished mold parts

A rubber mallet for gently whacking your wooden wedge

Did I miss anything?



[ This Message was edited by: KokoKele 2012-02-24 12:07 ]

[ This Message was edited by: KokoKele 2012-02-24 12:22 ]

[ This Message was edited by: KokoKele 2012-02-24 13:57 ]


 View Profile of KokoKele Send a personal message to KokoKele      Edit/Delete This Post Reply with quote
danlovestikis
Tiki Socialite

Joined: Jun 17, 2002
Posts: 4885
Posted: 2012-02-24 12:32 pm   Permalink

Kokokele where were you when I was just starting out. Good job.
We always have a box to dump the extra mixed plaster into so we can discard it later when it has set. Best Wishes for a great mold, Wendy
_________________



View Profile of danlovestikis Send a personal message to danlovestikis      Edit/Delete This Post Reply with quote
WestADad
Tiki Socialite

Joined: Mar 31, 2009
Posts: 745
From: Tornado Alley
Posted: 2012-02-24 12:36 pm   Permalink

Quote:

On 2012-02-24 12:06, KokoKele wrote:

Did I miss anything?




A clone of Dan Cevola to help you!!




View Profile of WestADad Send a personal message to WestADad  Email WestADad     Edit/Delete This Post Reply with quote
KokoKele
Tiki Centralite

Joined: Feb 08, 2012
Posts: 70
Posted: 2012-02-24 1:31 pm   Permalink

Oops! Forgot! WEIGHING YOUR MATERIALS!

I'm pretty literal about following the instructions on the pottery plaster bag, so I have a scale that you can tare (set to zero) and some measuring containers - one for water, one for plaster. My scale was pretty cheap and goes up to ten pounds. Once you put the measuring bucket on the scale set it back to zero and add your water according to instructions. Do the same thing for your plaster then use the sprinkle-sprinkle method to add the plaster to the water in the large bucket and mix 'em all up.



View Profile of KokoKele Send a personal message to KokoKele      Edit/Delete This Post Reply with quote
Tiki Tonie
Tiki Centralite

Joined: Jun 07, 2011
Posts: 52
Posted: 2012-02-24 1:56 pm   Permalink

THANK YOU SOOOOOO MUCH KOKOKELE!!!!! That is exactly what I needed. I think you listed 5 things I had no idea I needed and great details on all the rest. I'll be sure to watch the tutorial before I begin.

Thanks to Wendy too! I'll be following along with the printouts I copied from you thread.

I'll let you all know how it went on Sunday!

Tiki Tonie



View Profile of Tiki Tonie Send a personal message to Tiki Tonie  Email Tiki Tonie     Edit/Delete This Post Reply with quote
KokoKele
Tiki Centralite

Joined: Feb 08, 2012
Posts: 70
Posted: 2012-02-24 1:58 pm   Permalink

Glad to help. I edited the first list to include the scale and other materials so you'll have everything on one list.

Best of luck! Be patient!



View Profile of KokoKele Send a personal message to KokoKele      Edit/Delete This Post Reply with quote
LoriLovesTiki
Tiki Socialite

Joined: Jul 03, 2011
Posts: 925
From: NJ
Posted: 2012-02-24 4:00 pm   Permalink

Good luck!


View Profile of LoriLovesTiki Send a personal message to LoriLovesTiki      Edit/Delete This Post Reply with quote
KokoKele
Tiki Centralite

Joined: Feb 08, 2012
Posts: 70
Posted: 2012-02-24 4:00 pm   Permalink

Quote:

On 2012-02-24 12:36, WestADad wrote:
Quote:

On 2012-02-24 12:06, KokoKele wrote:
Did I miss anything?


A clone of Dan Cevola to help you!!



Totally!



View Profile of KokoKele Send a personal message to KokoKele      Edit/Delete This Post Reply with quote
Tiki Tonie
Tiki Centralite

Joined: Jun 07, 2011
Posts: 52
Posted: 2012-02-24 6:04 pm   Permalink

About how many bags of plaster does it take to make a for an regular size mug, like 8" tall and 3" diameter mold?


View Profile of Tiki Tonie Send a personal message to Tiki Tonie  Email Tiki Tonie     Edit/Delete This Post Reply with quote
KokoKele
Tiki Centralite

Joined: Feb 08, 2012
Posts: 70
Posted: 2012-02-25 02:55 am   Permalink

Last time I bought pottery plaster it was around twenty bucks for a forty pound bag. That was enough to ruin my first two attempts at making a mold, and still enough for my third successful attempt with some left over.

One of the first things I did when buying plaster was to immediately transfer it to a plastic storage box - "totes" I believe they're called - with a lid that clamps on fairly securely. This made it easier to scoop out the plaster and it kept it nice and dry.

If you're going to use plaster of paris I'd think in terms of getting three five-pound boxes. Better to buy too much than run out in the middle of the project. I'd really try to get pottery plaster, though. It's much better.

Does that sound about right to everyone else?



View Profile of KokoKele Send a personal message to KokoKele      Edit/Delete This Post Reply with quote
KokoKele
Tiki Centralite

Joined: Feb 08, 2012
Posts: 70
Posted: 2012-02-25 08:42 am   Permalink

Oh, my, I think I might have been a bit dense about answering your last question. I'll bet you wanted to know how much plaster to actually mix up for each pouring for a mold your size. Right?

I always just guessed.

But if you're a genius, which I'm not, you can always use actual calculations!

After you get your answer, below, be sure to follow the instructions that come with the plaster exactly! The shop I buy mine from has an alternate instruction sheet that they give you, which they developed after years of trial and error, and it works great. If your shop gives advice like this, follow it!

Now, fun with math:

If your original piece is 3 inches by 8 inches, your mold box needs to be adjusted so that there is plenty of plaster around it after pouring. So you're filling a mold box that should be around 6 inches tall by, say, 12 inches long by six inches wide. Six times 12 times 6 is 432. That's the VOLUME of the mold box if those are your measurements. Now subtract the volume of the mug. That's a bit tougher. The formula for volume is pi times radius squared times height. Pi is roughly 3.14, and the radius is half the distance across the center of the mug, or 1.5 inches. So your formula for the mug volume is 3.14 times (1.5 times 1.5) times 8. The answer is 54 cubic inches. So 432 minus 54 equals 378 cubic inches.

BUT you only want to make enough plaster to fill up half the mold box, right? That means you only need enough to fill 189 cubic inches.

To get the number of quarts you need, divide your cubic inches by 58. 189 divided by 58 equals about 3.3 quarts. Since plaster takes up about twenty percent of the volume, I'd say you need about three quarts of water and about nine pounds of plaster. That should make more than you need.

So I guess you're making about a gallon of wet plaster. Sounds about right.

I'll bet some of the more seasoned mold makers out there have other methods for estimating their plaster needs.

Hope this was helpful!



View Profile of KokoKele Send a personal message to KokoKele      Edit/Delete This Post Reply with quote
KokoKele
Tiki Centralite

Joined: Feb 08, 2012
Posts: 70
Posted: 2012-02-25 08:52 am   Permalink

Here's a tutorial with a nice lady named Holly actually mixing plaster live and in person, just for you:

Mixing Plaster Tutorial

 View Profile of KokoKele Send a personal message to KokoKele      Edit/Delete This Post Reply with quote
danlovestikis
Tiki Socialite

Joined: Jun 17, 2002
Posts: 4885
Posted: 2012-02-25 09:12 am   Permalink

It would have to be a clone of Dan because I'd never give him up. We are headed to our 34 wedding anniversary in May.

I was told to mix in the piaster until it sticks to your hand like buttermilk. That has worked every time for me.

Remember that the plaster sets up fast. So as soon as it gets to this stage be ready to pour. Don't take long to mix in the plaster either. It's all as fast as you can go.

You can't really stop to take photos during this time unless you have a helper to do it.

Finger crossed for you, Wendy
_________________



View Profile of danlovestikis Send a personal message to danlovestikis      Edit/Delete This Post Reply with quote
Tiki Tonie
Tiki Centralite

Joined: Jun 07, 2011
Posts: 52
Posted: 2012-02-25 09:13 am   Permalink

That was great! So many things to know. Thank you for the math too! You have been super helpful. Ok, here I go, Wish me luck!


View Profile of Tiki Tonie Send a personal message to Tiki Tonie  Email Tiki Tonie     Edit/Delete This Post Reply with quote
Goto page ( 1 | 2 | 3 Next Page )
U-Moderate:

v1.5

[ About Tiki Central | Contact Tiki Central | Advertise on Tiki Central ]
(c) 2000-2014 Tikiroom.com (tm), Tiki Central (tm)

Credits & copyright infomation
