Cement Sculpture now with some colour - go to last post to see! |
notiki
Member
Joined: Mar 05, 2013
Posts: 5
From: Melbourne Australia
|  Posted: 2013-03-13 05:40 am Permalink
Hi All,
I am pretty new around here and wanted to show some of my works carved and modelled from cement. I have been experimenting with different mixtures and techniques. I hope you enjoy the pictures and I look forward to hearing some feedback (hopefully good!)

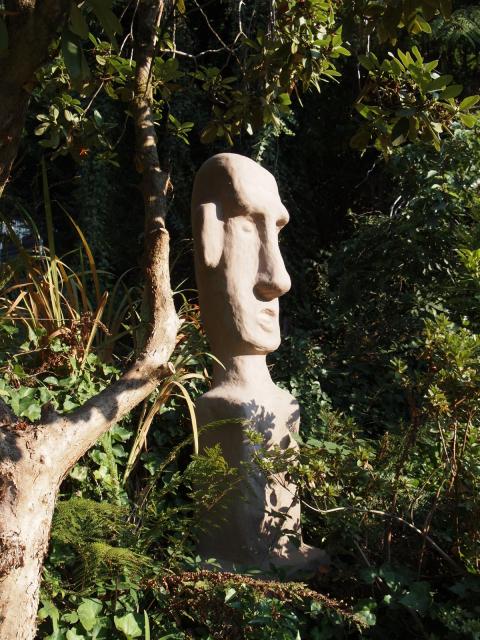

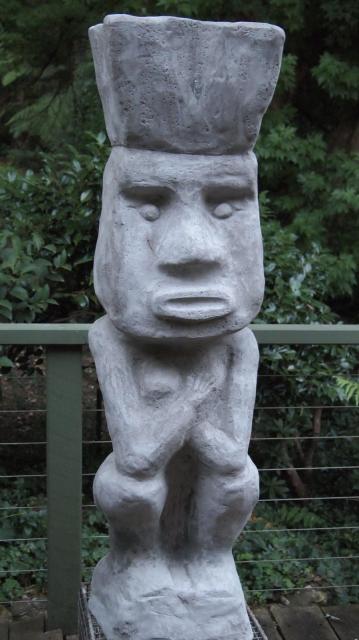

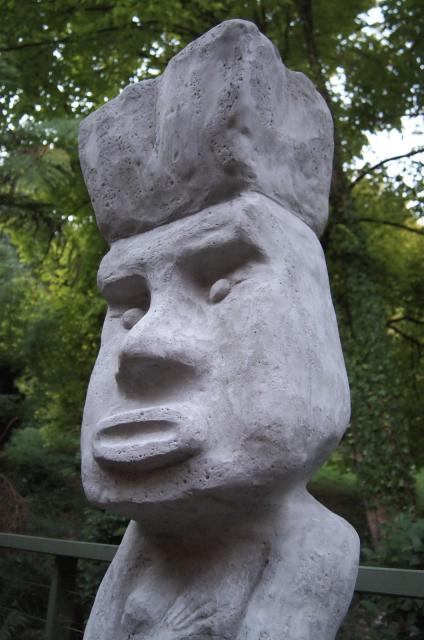

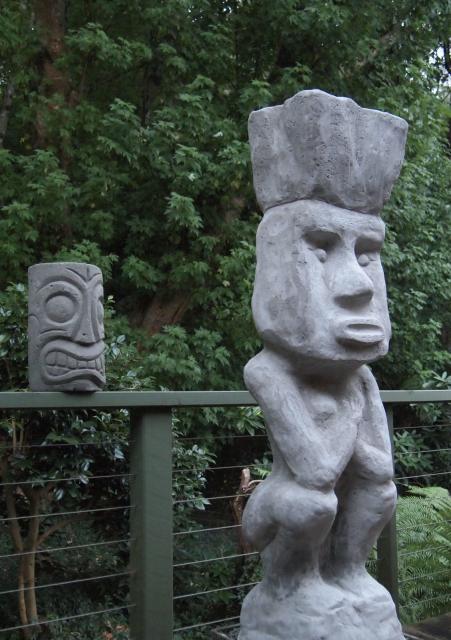

For the big sculptures its a thin layer of cement over foam blocks that have been carved to shape. I wrap the foam with basalt roving which is a rather exotic Soviet aerospace material. Think of it as string made from molten basalt rock (yes lava). It provides some reinforcing and helps stops the cement falling off. A four to five foot carving weighs about 100lbs when finished.

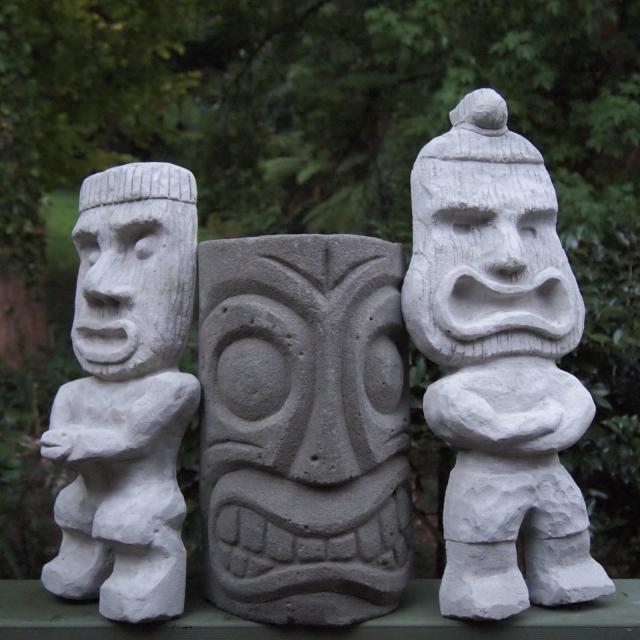

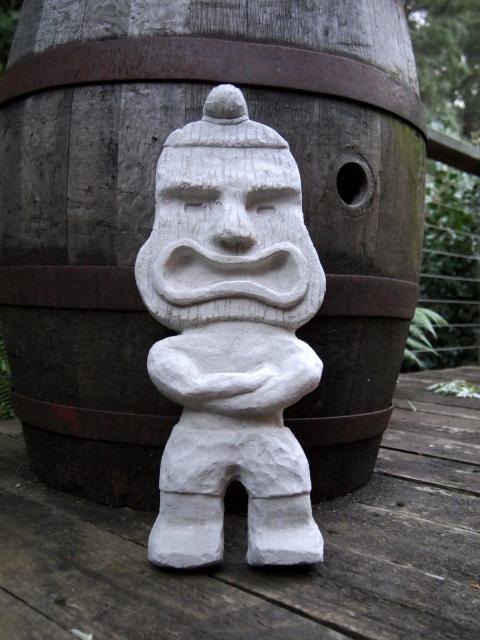

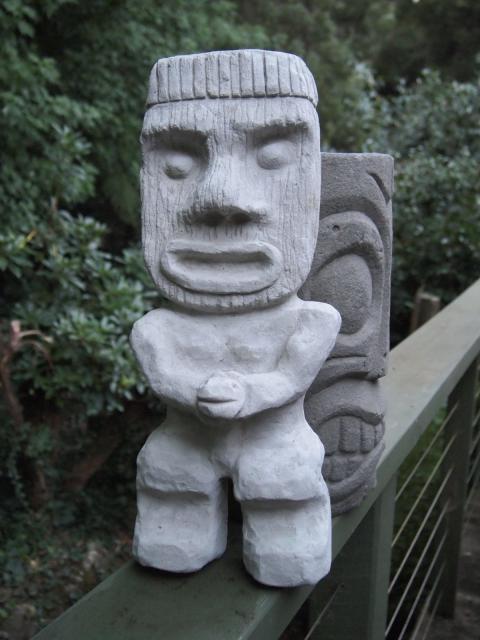

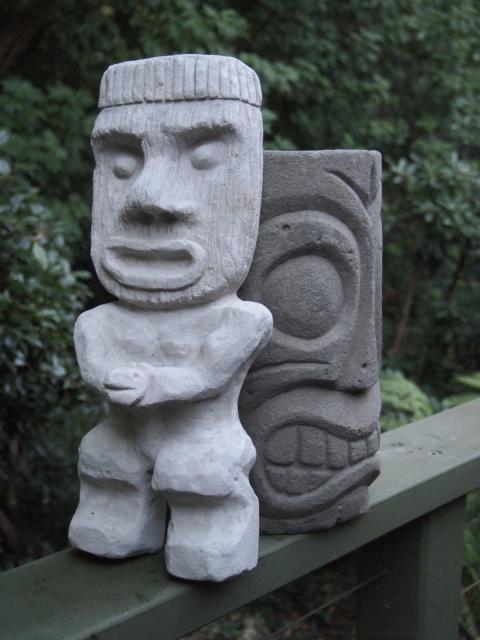

The smaller wall hanging guys are solid cement roughly shaped on a flat board. After about 2 hours of setting I carve in the details. As the cement gets harder you can carve in finer details and refine the finish a bit. They have a lot of lightweight aggregate which makes carving a bit easier than sand and cement type mixes.

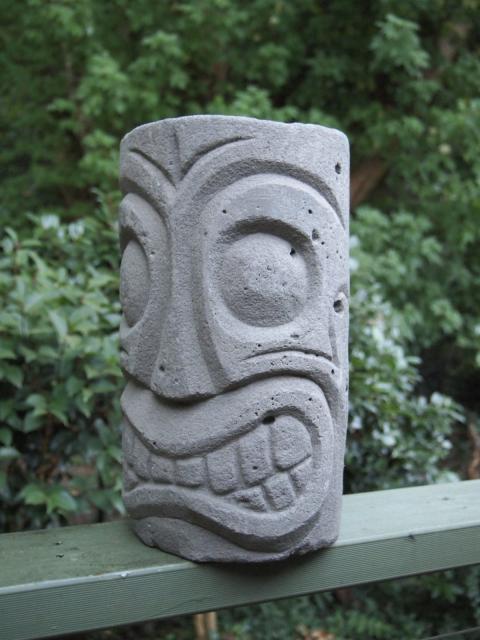

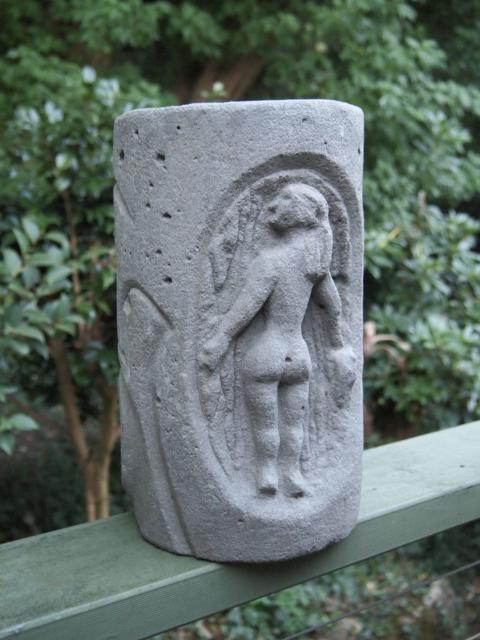

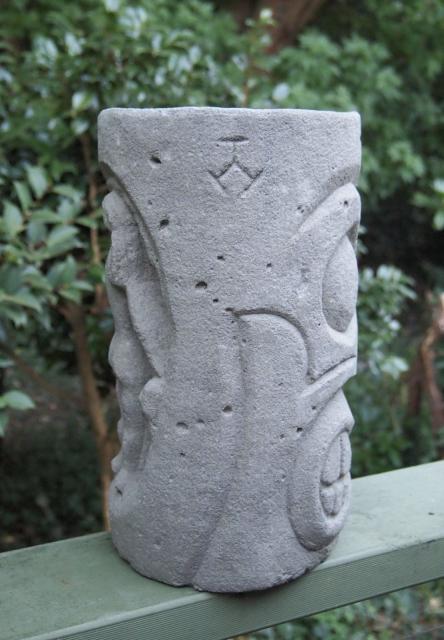

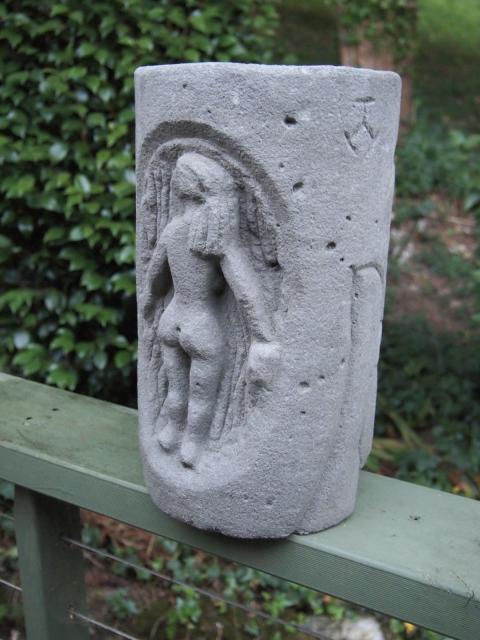

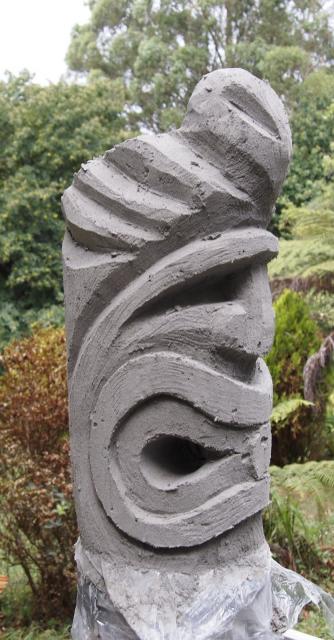

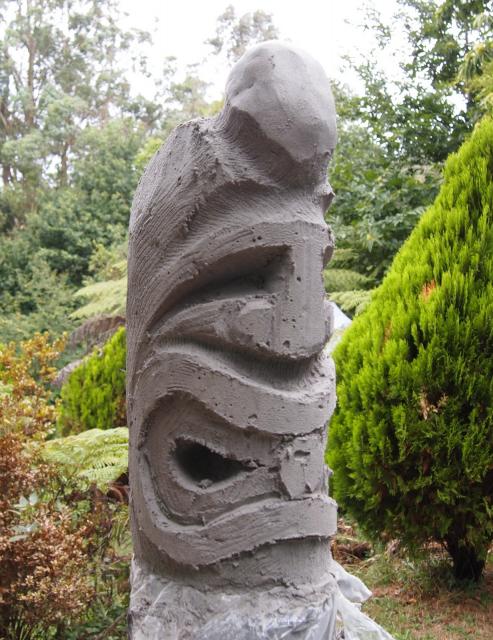

The cylindrical guy is more like a palm wood carving. I cast a cylinder of cement and let it set for 4 hours. Then I striped the form off and carved and scraped away. I did a relief sculpture on the flip side so you can see what he is smiling about. Its a mix with more sand and has a rougher finish than the others.
Next step is staining to bring out the detail and get away from the pale cement look and a sealer to give a bit of shine.
Cheers
Thom
[ This Message was edited by: notiki 2013-03-16 03:41 ]
[ This Message was edited by: notiki 2013-03-24 05:35 ]
[ This Message was edited by: notiki 2013-03-24 05:49 ]
[ This Message was edited by: notiki 2013-05-23 06:44 ]
|
danlovestikis
Grand Member (8 years)
Joined: Jun 17, 2002
Posts: 3570 | Posted: 2013-03-13 07:52 am Permalink
Hi Thom, I really like your tikis and information. I've often thought of doing cement tikis for our yard but I always imagined using wire to support the cement. Your foam is such an excellent way to achieve your goals that now anything seems possible. Please show your step by steps with making these. You could start another thread for all those that you have completed on the Gallery page. Wendy
_________________
|
TikiAno
Tiki Socialite
Joined: Aug 07, 2012
Posts: 240
From: San Diego, CA
| Posted: 2013-03-13 10:26 am Permalink
These are all looking great. Fun and interesting pieces- since I don't work with those materials, I'd be curious to see how it all comes together as well. Look forward to seeing more.
|
MadDogMike
Grand Member (3 years)
Joined: Mar 30, 2008
Posts: 6412
From: The Anvil of the Sun
| Posted: 2013-03-13 10:47 am Permalink
"Basalt roving is bundle of continuous monodirectional complex basalt fibers."
"During 1960s to 1980s, this technology was classified for the exclusive application in military and aerospace projects. In 1995, the technology was declassified and allowed to be used for civil purposes."
I had to check into Basalt Roving - very cool. Kind of like Kevlar?
Welcome to TC Thom. Nice sculptures, I'm surprised at the amount of detail you are able to carve in.
_________________
Clay, the oldest and most divine art media;
"And now, from the clay of the ground, the Lord God formed man" Genesis 2:7
Pirate Ship Tree House
[ This Message was edited by: MadDogMike 2013-03-13 16:56 ]
|
LoriLovesTiki
Tiki Socialite
Joined: Jul 03, 2011
Posts: 472
From: NJ
| Posted: 2013-03-13 3:42 pm Permalink
I'd like to see some step by step photos too! I need some concrete tikis for the backyard. You never know, you might inspire a bunch of us to follow in your footsteps. Welcome to TC, btw.
_________________
:-)
Lori
|
notiki
Member
Joined: Mar 05, 2013
Posts: 5
From: Melbourne Australia
| Posted: 2013-03-16 02:45 am Permalink
Hi,
Thanks for the warm welcome!
Wendy and Lori. I will get together some in progress / how to photos. The foam works well as a core as it is light and easy to carve and shape.
Mike. It is a bit like kevlar reinforcement except it is natural rock made in some super special machine. I got my material as a remnant from a German company that sourced it from Georgia (former USSR country) It is good for cement because cement is alkali and alkali attacks things like normal glass fibre rovings. You can use stucco mesh or chicken wire as well.
For some tips ; As a start look at http://sandpudding.com/ the method shown there is how I did the round dark grey tiki.
Cheers Thom
|
notiki
Member
Joined: Mar 05, 2013
Posts: 5
From: Melbourne Australia
| Posted: 2013-03-16 03:39 am Permalink
Here are some sequence photos of another work. Not pure Tiki but it shows the method.

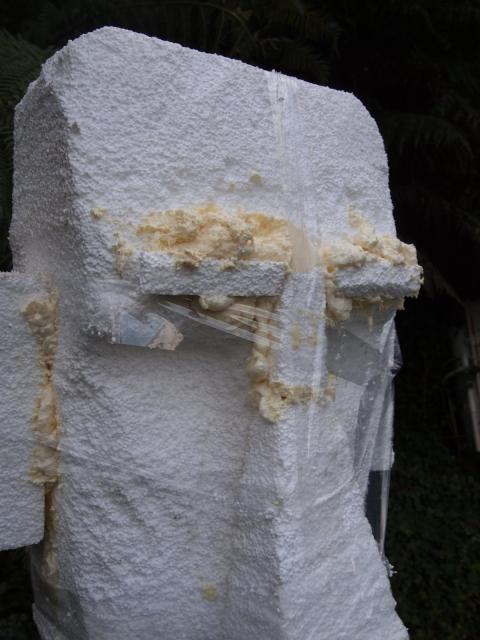

Rough In Foam Work

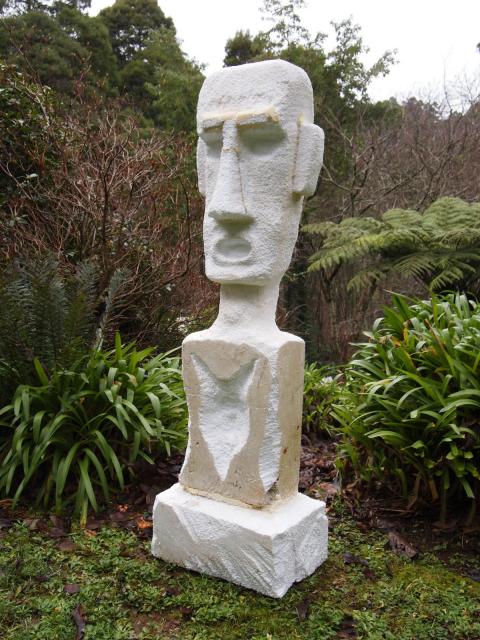

Refine the Foam

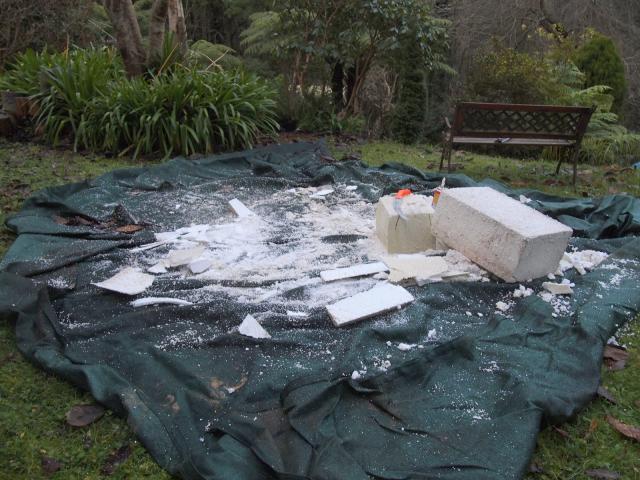

The foam sure makes a mess. The waste beads can be mixed with soil for plants to grow in! I use a pruning saw to carve of big blocks. A lot of chapping is just grating away with fingertips ( no tools )

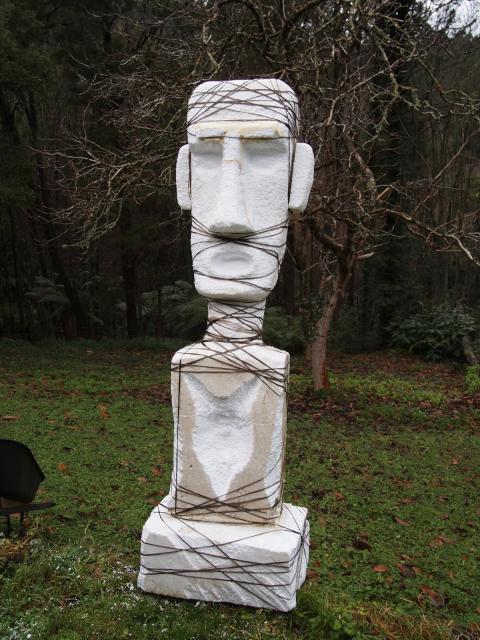

Wrapping with the basalt roving. I use a big needle now to get the inside shapes/parts reinforced.
More wrapping

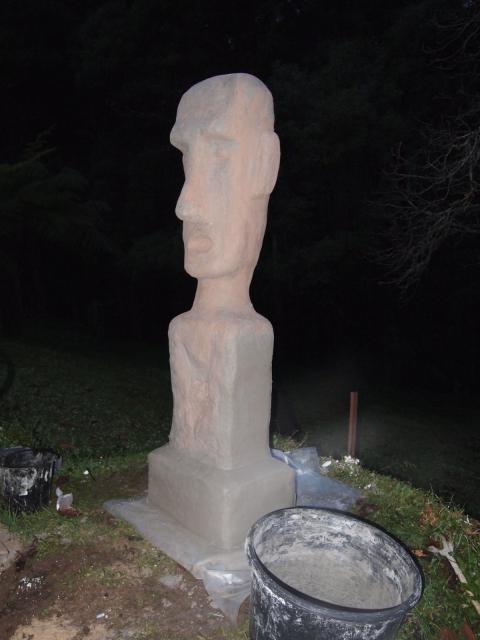

After cement is smoothed on. About 1/4" to 1/2" thick. This guy is not carved, just modelled in the wet cement.

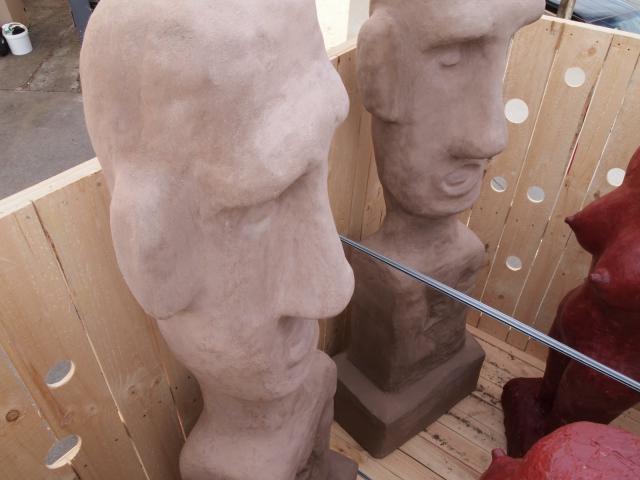

Finished with my fireplace ash finish. We burn a lot of recycled painted hardwood pallets that have a blue paint so the ash has white kaolin in it. The ash is rubbed on and "cemented" with diluted "Bondcrete"
Off to a local arty show

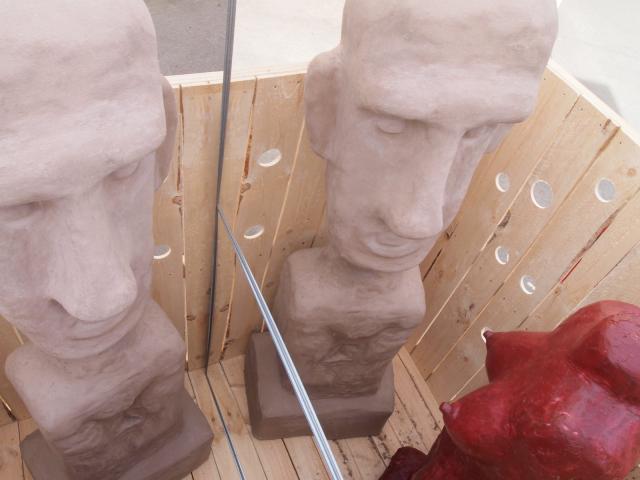

I made a fun "peep show" ...
Inside the box
The red lady is red cheese wax over cement over foam.
Cheers Thom
|
notiki
Member
Joined: Mar 05, 2013
Posts: 5
From: Melbourne Australia
| Posted: 2013-03-24 05:49 am Permalink
Hi,

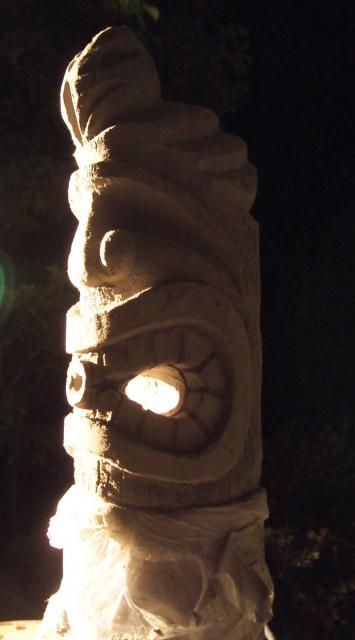

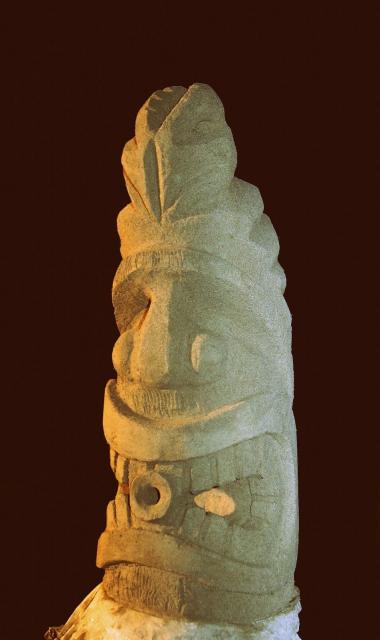

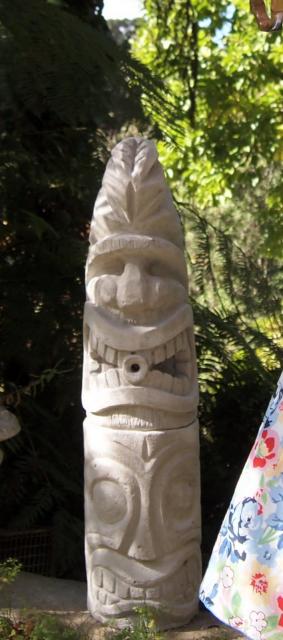

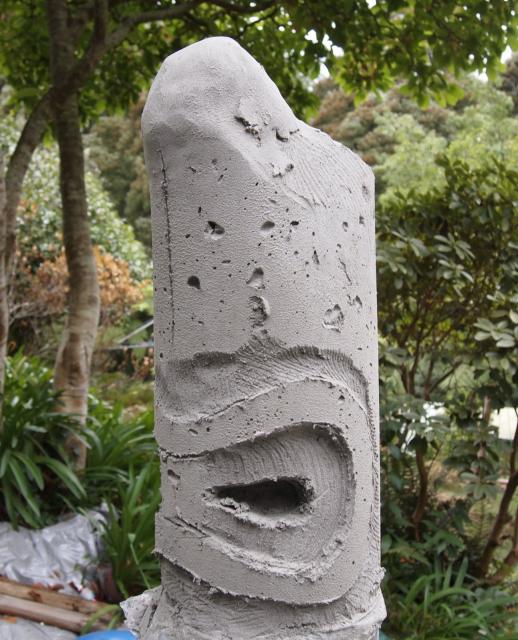

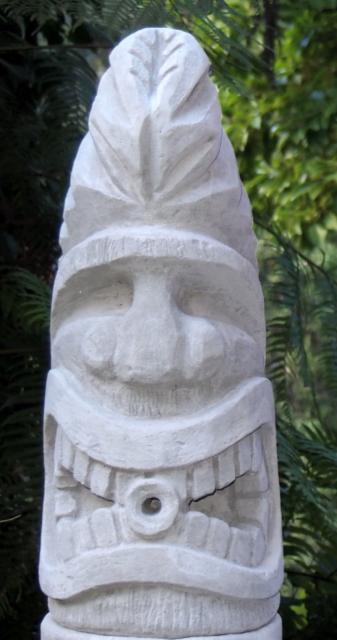

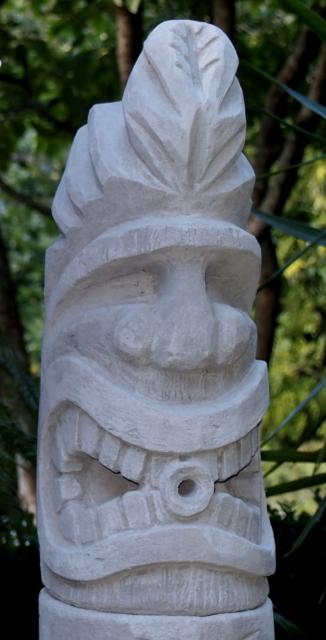

Here are some photos of my most recent carving. Its in a lightweight cement and stacks on top of my last Tiki to form a mini totem.
He is a lot more 3d than the last but still "from a log". The lightweight mix is a lot easier to carve and does not set as quickly as the more sand and cement mix of the the guy on the bottom of the totem.
Hope you enjoy the photos.

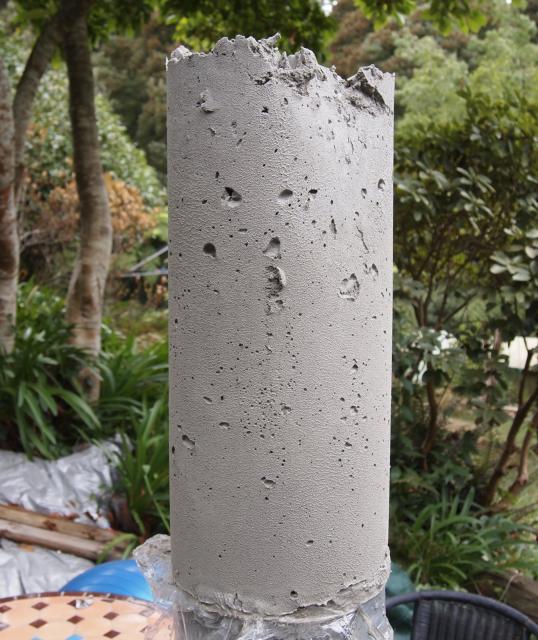

My Cement "log"
|
danlovestikis
Grand Member (8 years)
Joined: Jun 17, 2002
Posts: 3570 | Posted: 2013-03-24 09:40 am Permalink
Thank you so much for posting these step by step photos. This is very interesting and creative. You are doing a fabulous job of making tikis. The peep show was very fun. I hope you continue to post so we can enjoy all your creations. Wendy
_________________
|
LoriLovesTiki
Tiki Socialite
Joined: Jul 03, 2011
Posts: 472
From: NJ
| Posted: 2013-03-24 11:32 am Permalink
I REALLY want to try this when it gets warmer outside! Thank you so much for posting the pictures, how to's and inspiration.
Mahalo,
_________________
Lori
Edited to ask: what's the recipe for lightweight mix? Do you use those cardboard tubes as your mold? How long do you all the concrete to set up before you remove the mold and start carving. Although you make it look easy I think there's a lot I need to know first. I guess I need even more step by step! LOL
[ This Message was edited by: LoriLovesTiki 2013-03-24 11:36 ]
|
MadDogMike
Grand Member (3 years)
Joined: Mar 30, 2008
Posts: 6412
From: The Anvil of the Sun
| Posted: 2013-03-24 11:43 am Permalink
"red cheese wax" !!!???  Do you eat a lot of Gouda? Why do you just happen to have 20 lbs of red cheese wax laying around?
I thought that roving would be more like a net.
Love the latest guy too.
_________________
Clay, the oldest and most divine art media;
"And now, from the clay of the ground, the Lord God formed man" Genesis 2:7
Pirate Ship Tree House
|
notiki
Member
Joined: Mar 05, 2013
Posts: 5
From: Melbourne Australia
| Posted: 2 days ago; 06:43 am Permalink

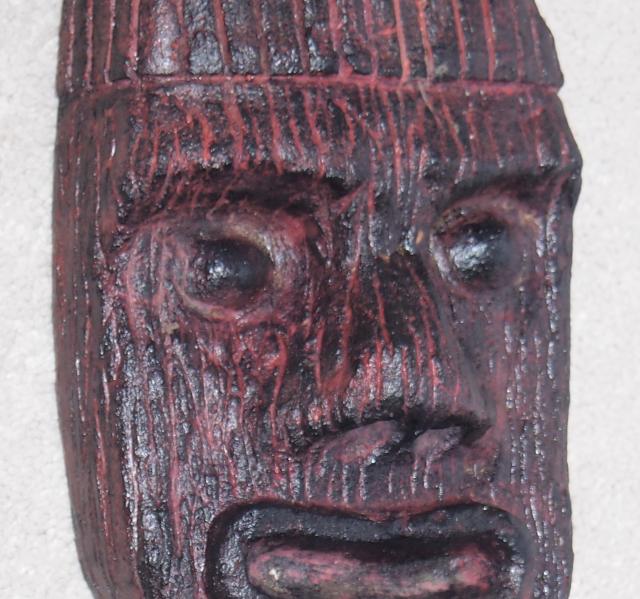

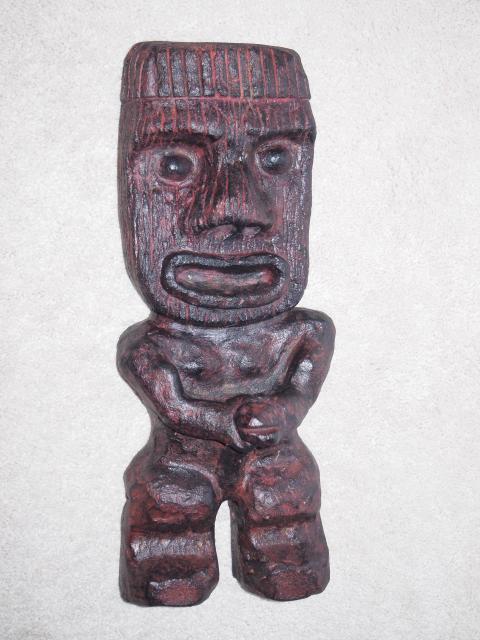

Here are some shots of one of "Taming of the Snake" wall hanging after some colour has been added. Hope you like it.

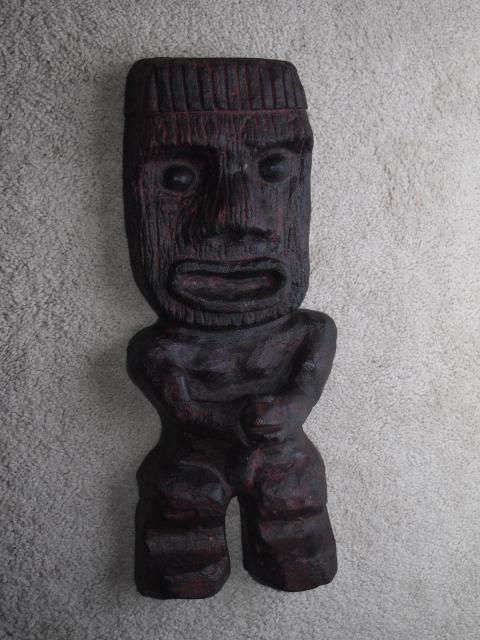

and some glossy, too much flash shots. It does show some of the technical detail though.
|
MadDogMike
Grand Member (3 years)
Joined: Mar 30, 2008
Posts: 6412
From: The Anvil of the Sun
| Posted: 2 days ago; 10:29 am Permalink
Very nice NoTiki, great color and detail.
|
SandraDee
Tiki Socialite
Joined: Mar 11, 2011
Posts: 591 | Posted: 2 days ago; 10:58 am Permalink
Great to see a different take on tiki making.
Really great to see you evolving already with your art and designs.
Thanks for sharing and keep posting.
(btw MadDogMike is a wizard with making just about anything out of styrofoam---I know you have his mind working overtime with ways he plans to try this technique out!)
|
